Edge cutter
WARNING!
Risk of injury!
Persons are not allowed in the
hazard zone when raising or
lowering the edge cutter.
Keep to a safety distance of at least
1 m.

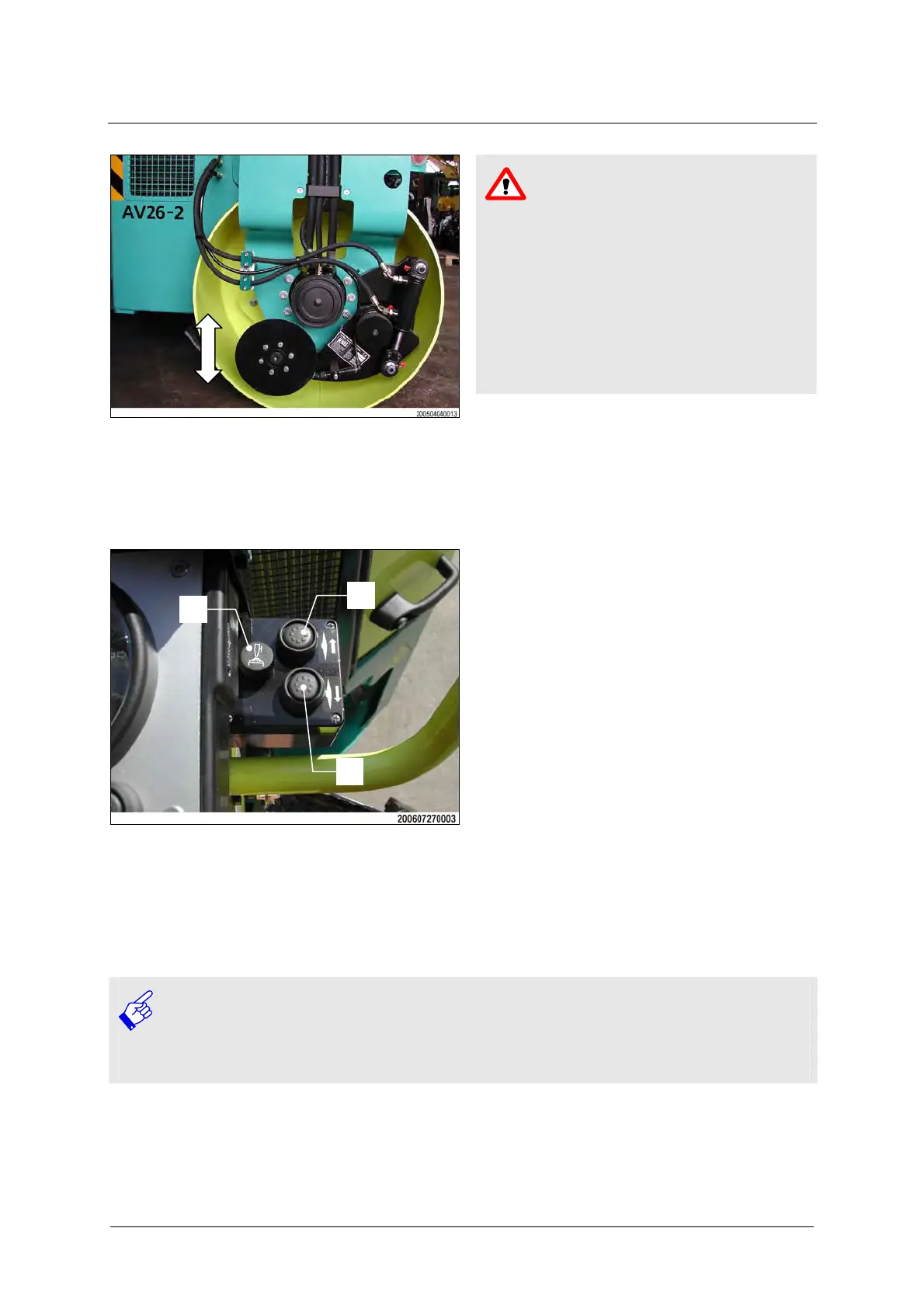

The edge cutter can be operated via the operating switches or the operating
lever, depending on the machine configuration.
Operating via the operating switches
Operating switch position
The edge cutter operating switch is
located at the right of the steering
column
Lowering the edge cutter
As long as you press the "Lower"
button (1) the edge cutter is lowered.
Raising the edge cutter
As long as you press the "Raise"
button (2) the edge cutter is raised.
Edge cutter sprinkler
The rotary switch (3) switches on the water supply (continuous sprinkling) to
the edge cutter.
NOTE
This function only works if roller drum sprinkling is switched on.
