134

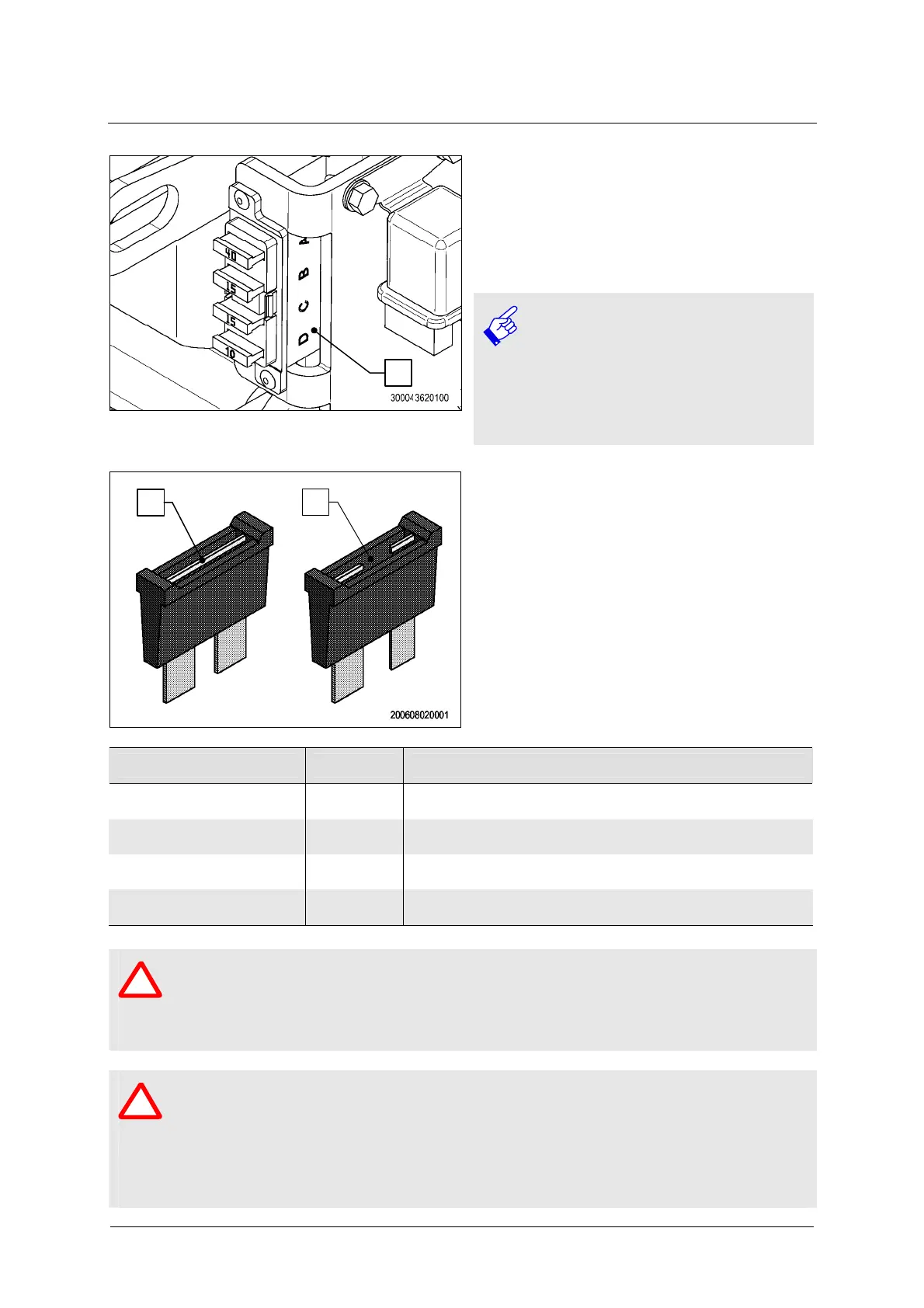

Engine compartment fuses
Fuse box in the engine
compartment
The fuses (1) are located on the right
of the engine, at the front between
the engine and the water tank.
NOTE
Before replacing the fuse, you must
identify and remove the cause of
the fault.
The fuse numbers are indicated on
the fuse box.
Always replace a defective fuse (1)
with a functioning fuse (2) of the
same amperage (according to the
label or color of the fuse).
Fuse No. Power Fuse-protected circuit
F11 (A or 1) 40 A Pull-in solenoid
F12 (B or 2) 15 A Fan for oil cooler, diesel pump, alternator
F13 (C or 3) 15 A Reserve (15+)
F14 (D or 4) 10 A Reserve, not connected
ATTENTION!
Fuses and safety switches must never be shorted.
ATTENTION!
Short-circuit!
Always disconnect the power supply when working on the electrical system.
2
1
1
