9 Tips
BNNbOO
ID: 1138310 Issue date January 01, 2010
135

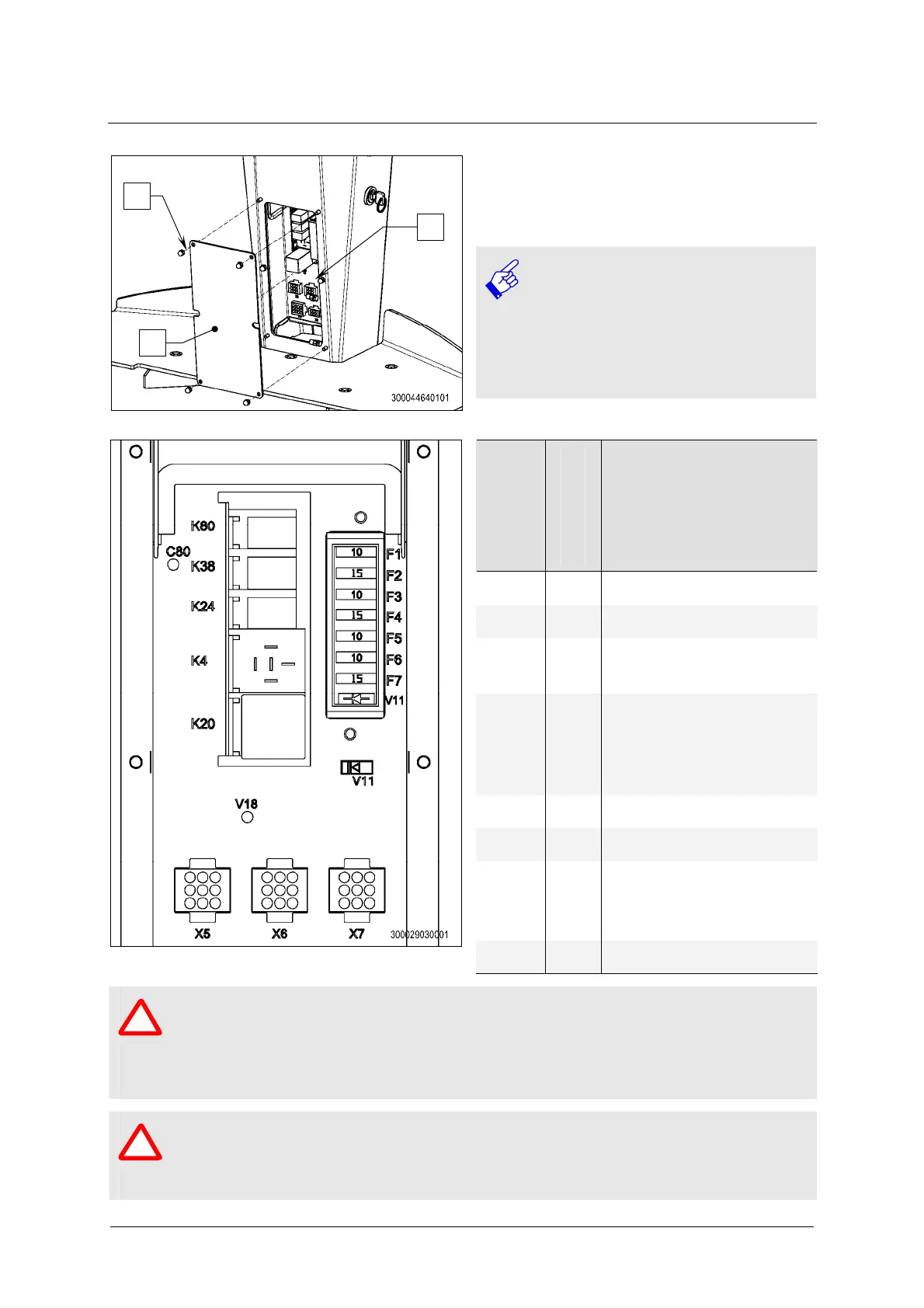

Steering column fuses
Fuse box (1) in the steering column
Remove the 4 fixing screws (2) and
then the cover (3).
NOTE
Before replacing the fuse, you must
identify and remove the cause of
the fault.
Fuse
No.
Power
Fuse-protected
circuit
F1 10 A Parking light
F2 15 A Dipped light
F3 10 A
Emergency stop,
holding solenoid
F4 15 A Sprinkler,
Horn,
Reverse alarm,
Flow divider,
F5 10 A Displays, indicators
F6 10 A Hazard warning light
F7 15 A Work light, revolving
warning light, edge
cutter
V11
Diode
ATTENTION!
Install the diode in the correct direction of passage. The ring must be on the
left when viewed from above.
ATTENTION!
Fuses and safety switches must never be shorted.
1
2
3
