4 Transport / Commissioning
BNNbOO
ID: 1138310 Issue date January 01, 2010
33
Transport

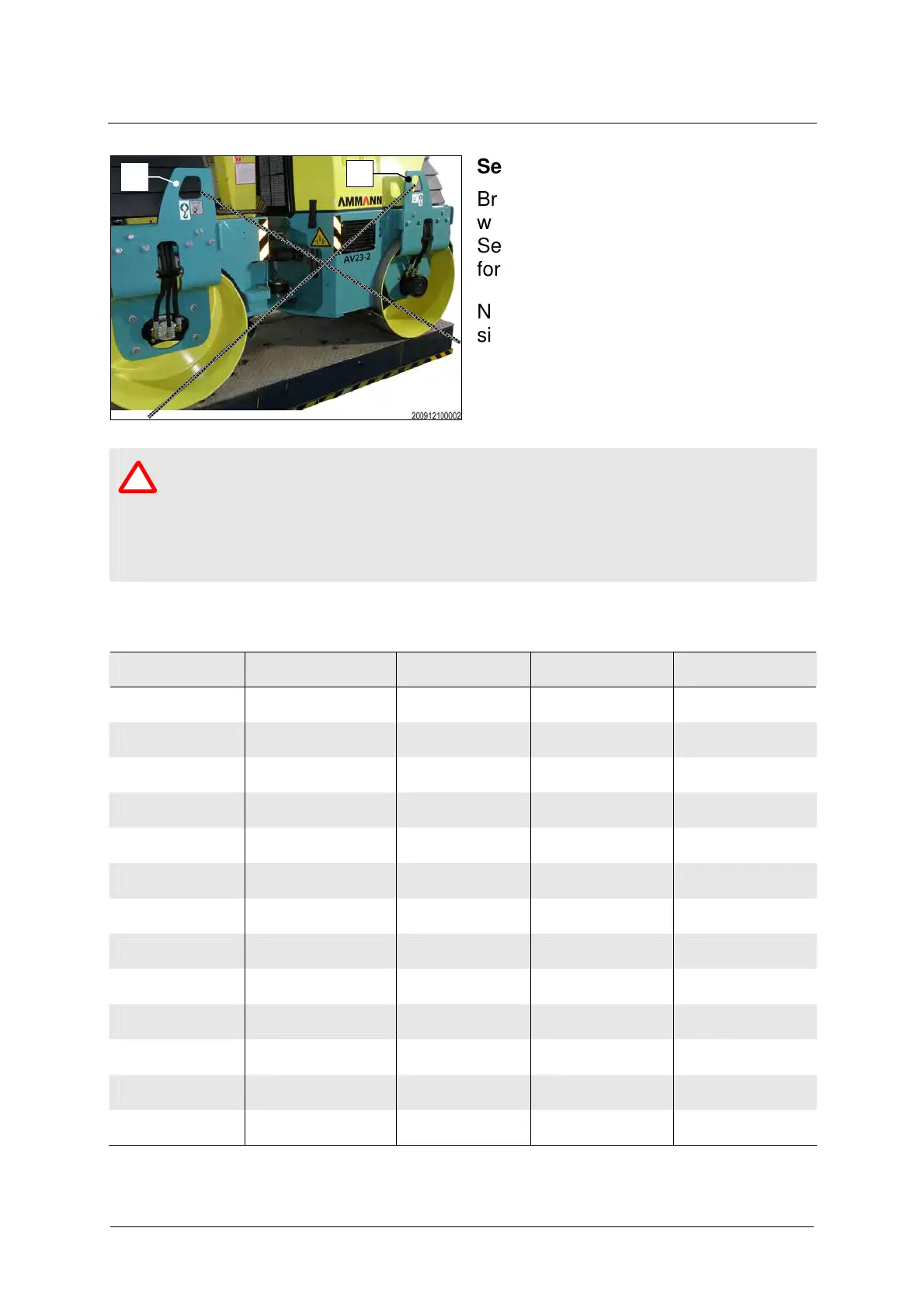

Securing the roller
Brace down the roller at the four
wheel suspensions (1).
Secure the machine from rolling away
forward or backward.
Now secure the roller from slipping
sideways.
CAUTION!
A blocked steering system can lead to accidents!
Open the joint protection before starting the machine.
Dimensions relevant to transport
Model Length* (mm) Width (mm) Height* (mm) Weight (kg)
AV23-2
2563 1121 1937 2515
AV23-2 S
2563 1140 1937 2755
AV23-2K
2563 1065 1937 2385
AV23-2K S
2563 1110 1937 2555
AV26-2
2563 1326 1937 2765
AV26-2 S
2563 1340 1937 2955
AV26-2K
2563 1249 1937 2505
AV26-2K S
2563 1310 1937 2625
AV32-2
2563 1310 1937 3265
AV32-2K
2563 1219 1937 3215
AV33-2
2563 1412 1937 3555
AV40-2
2563 1412 1937 3905
AV40-2K
2563 1370 1937 3645
* With ROPS folded down
1
1
