Device Connectors
13
Instruction Manual - Solecis Digital Switchers
Device Connectors
Overview
This chapter provides functional details for each item on the front and rear panel of the Solecis Digital Switchers. See the
Wiring Specifications section on page 21 for information on wiring connectors for individual ports.

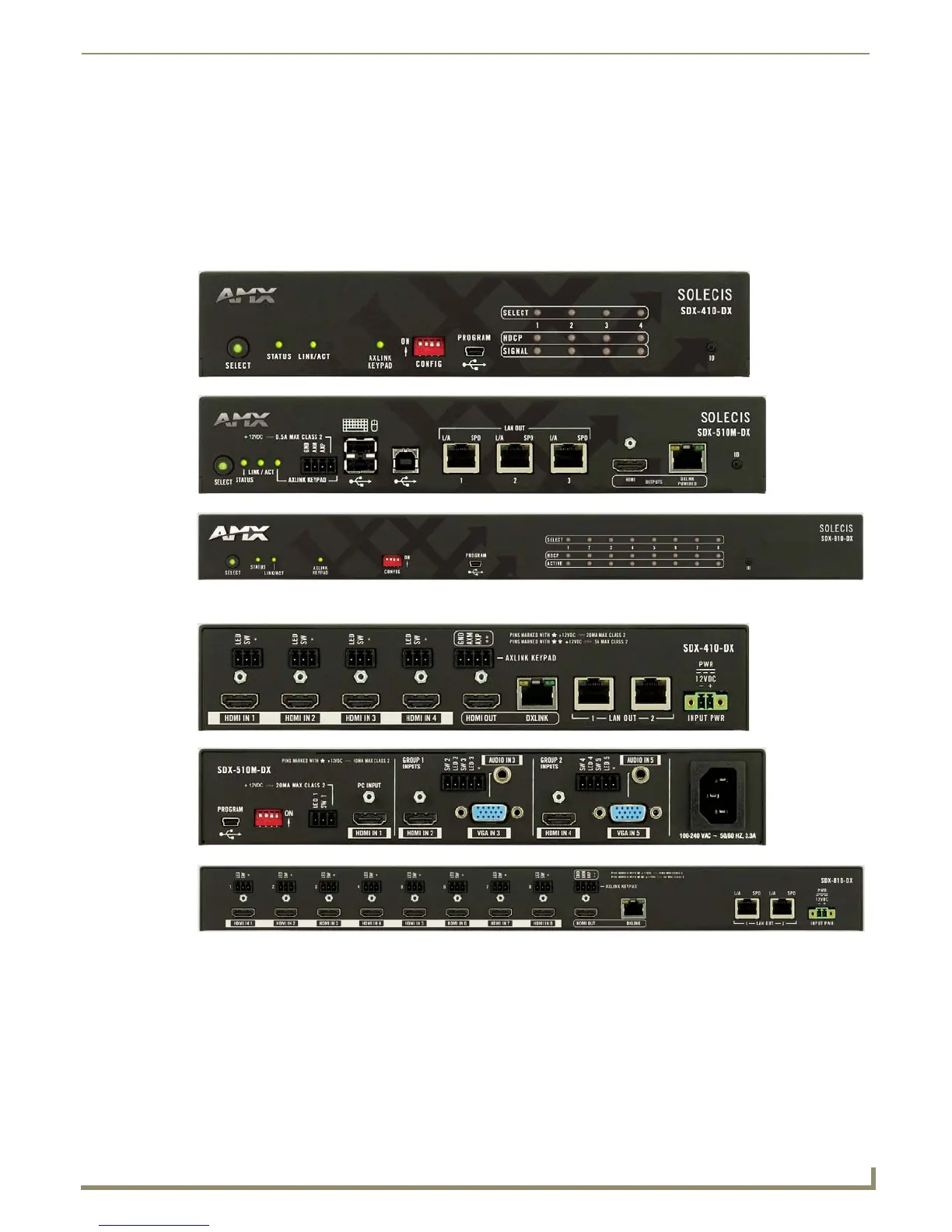

FIG. 2 displays the front panels of the SDX-410-DX, SDX-510M-DX, and SDX-810-DX:
FIG. 2 Solecis Digital Switchers front panels
FIG. 3 displays the back panel of the SDX-410-DX, SDX-510M-DX, and SDX-810-DX:
FIG. 3 Solecis Digital Switchers back panels
