Wiring Specifications
23
Instruction Manual - Solecis Digital Switchers
VGA INPUT Ports
The SDX-510M-DX features two VGA input ports on the rear panel to route analog video from connected source input
devices to the connected output devices. These ports support standard VGA cabling.

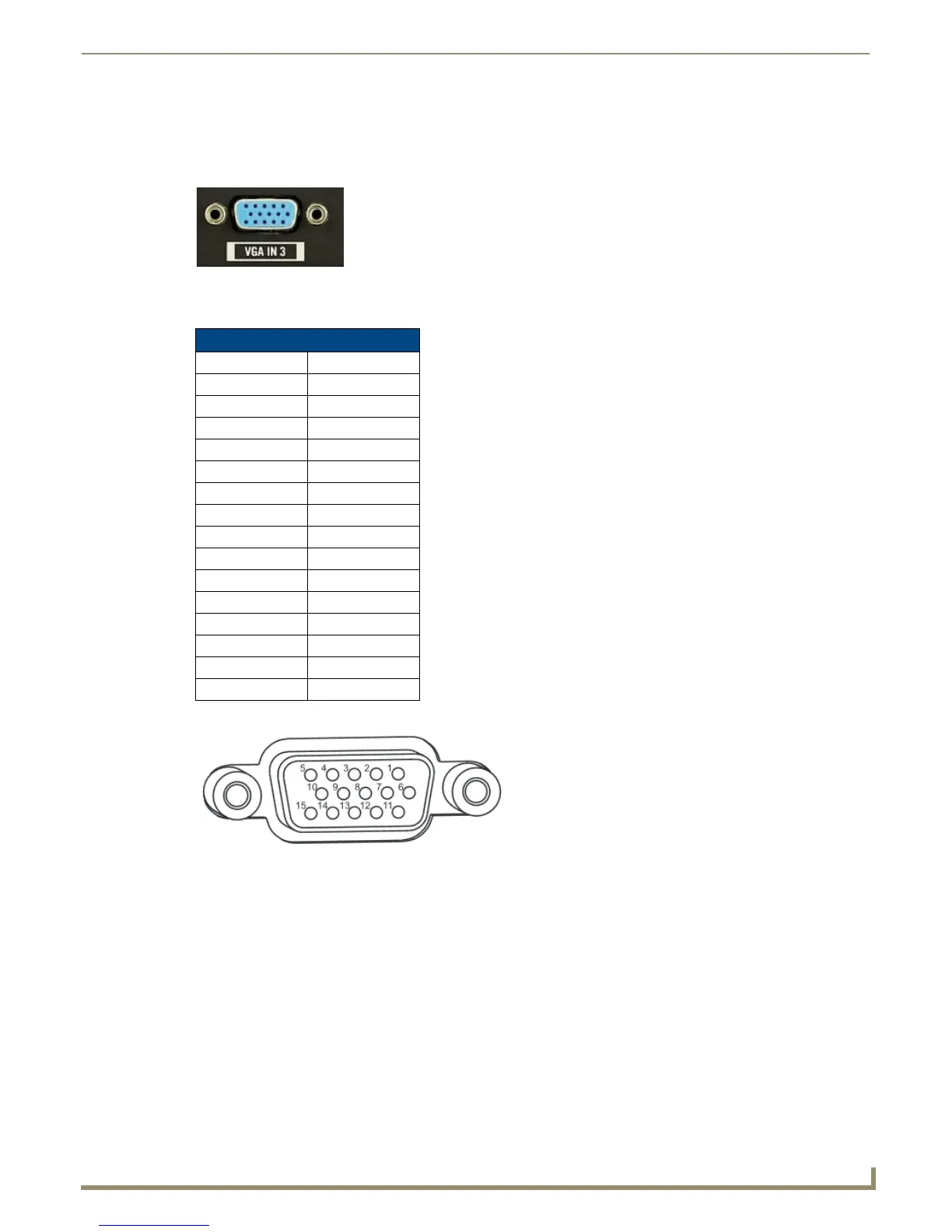

FIG. 21 displays one of the VGA inputs.
FIG. 21 VGA INPUT 3
The VGA inputs are used to accept a variety of analog video signals from a source device. The following table provides
cable pinout details for HD-15 connections for RGBHV.
FIG. 22 displays the pinouts for the VGA inputs.
FIG. 22 VGA Input Pins
VGA Input Port Cable Pinouts
Input Pin # VGA-RGBHV
1Red
2 Green
3Blue
4n/c
5GND
6 GND - Red
7GND - Green
8GND - Blue
9 +5 V DDC
10 GND
11 n/c
12 DDC_SDA
13 H Sync
14 V Sync
15 DDC_SCL
