Instruction Manual - Solecis Digital Switchers
Controls and Indicators
The following sub-sections describe each component on the front panel of the switcher. Refer to FIG. 2 on page 13 for
the component layout of the front panel.
SELECT Pushbutton
Press the SELECT pushbutton to manually switch the input routed to the output. Each press switches to the next input in
order, or if the last input is currently selected, switches to the first input. The pushbutton features an POWER LED which
indicates the switcher is powered on.

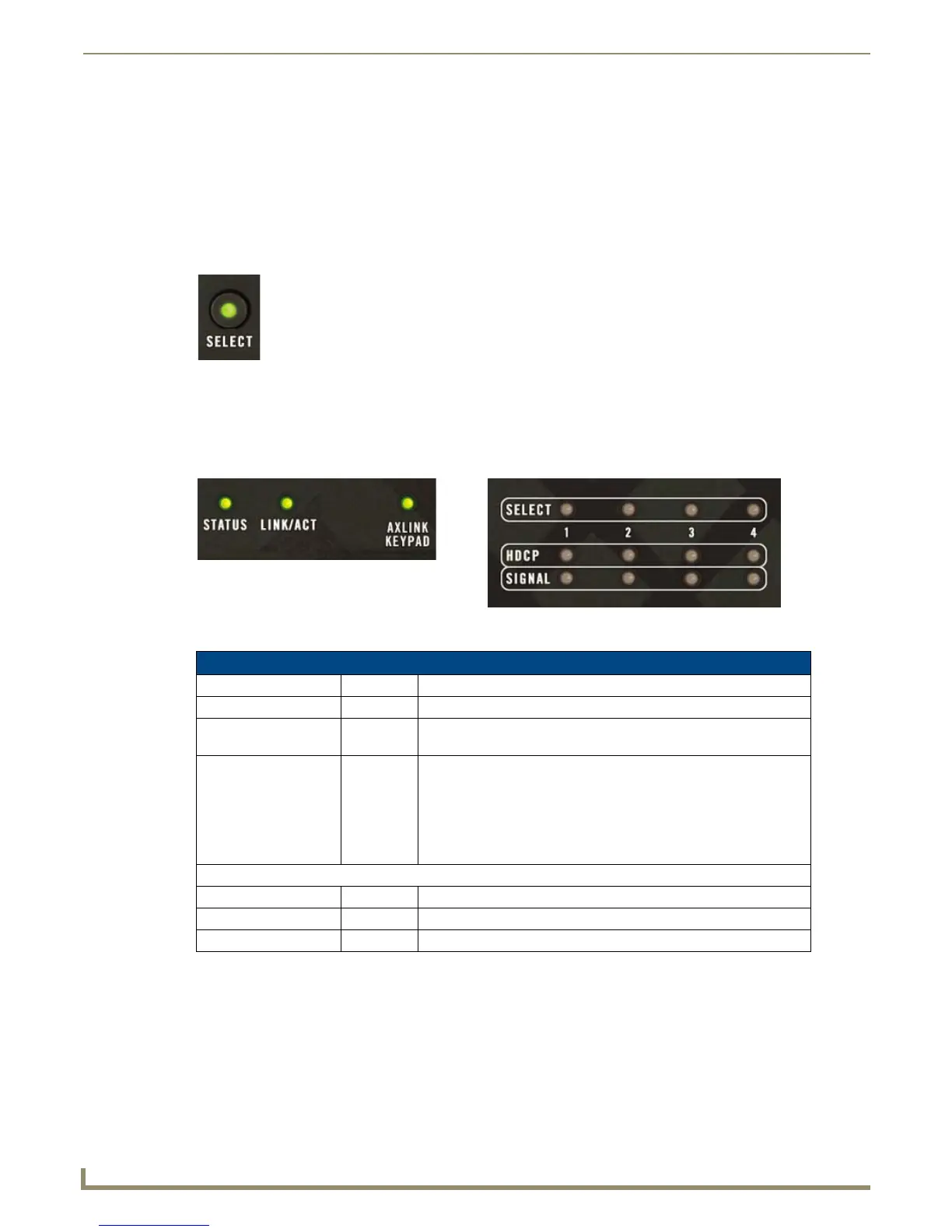

FIG. 4 displays the SELECT pushbutton.
FIG. 4 SELECT Pushbutton
LEDs
The LEDs on the front panel indicate the communications status of several different connections. All Solecis Digital
Switchers feature STATUS, LINK/ACT, and AXLINK KEYPAD LEDs. The SDX-410-DX and SDX-810-DX also
feature SELECT, HDCP, and ACTIVE LEDs for each available input on the switchers.
FIG. 5 displays the front panel LEDs on the SDX-410-DX.
FIG. 5 Front Panel - LEDs (SDX-410-DX)
The following table provides the details for each LED on the switchers:
Front Panel LEDs
Label Color Description
STATUS green Indicates the boot and connection status.
LINK/ACT green Indicates communication status. This LED also blinks when receiving
data.
AXLINK KEYPAD green Blinks to indicate the status of the AxLink Keypad port (located on the
rear panel of the device.)
• Off - No power, or the switcher is not functioning properly.
• 1 blink per second - Normal operation.
• 3 blinks per second - AxLink bus error. Check all AxLink bus
connections.
The following LEDs are only available on the SDX-410-DX and SDX-810-DX:
SELECT green Indicates which video input is currently routed to the video output.
HDCP yellow Indicates that the source video is encrypted.
ACTIVE green Indicates that a video signal is present.
