Instruction Manual - Solecis Digital Switchers
Overview
Solecis Digital Switchers include the SDX-410-DX 4x1 (FG1010-304) and SDX-810-DX 8x1 (FG1010-308) HDMI
Digital Switchers and the SDX-510M-DX 5x1 Multi-Format Digital Switcher (FG1010-315). The switchers each
provide a unique number of user connection points and include simplified local control which routes the selected signal
to both a DXLink and HDMI output.
The SDX-410-DX provides four user connection points and the SDX-810-DX provides eight. The SDX-510M-DX
provides five user connection points and includes three HDMI and two VGA video inputs.

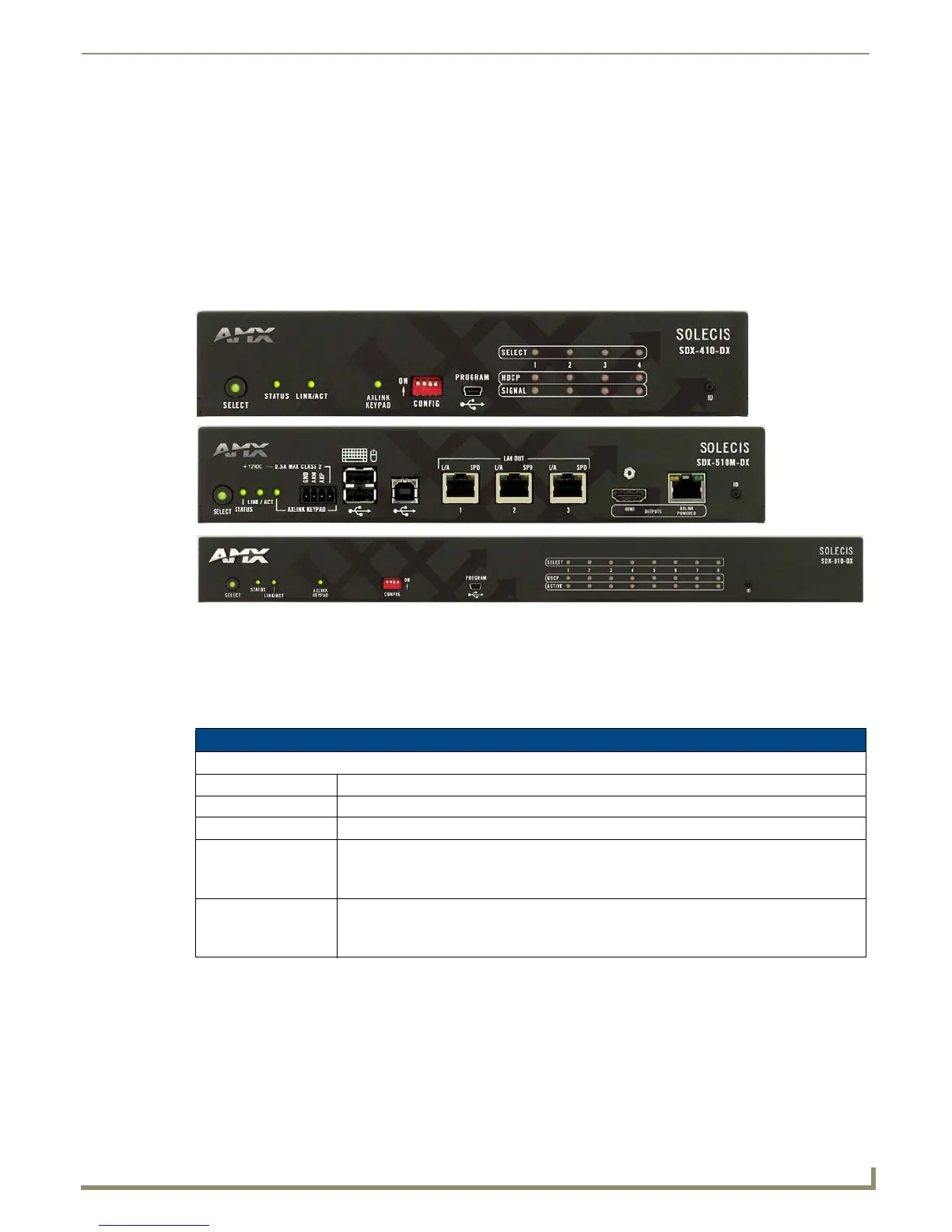

FIG. 1 displays the Solecis Digital Switchers.
FIG. 1 Solecis Digital Switchers
Specifications
The following sections list the specifications for the Solecis Digital Switchers.
SDX-410-DX
The following table lists the specifications for the SDX-410-DX:
SDX-410-DX Specifications
General:
Dimensions (HWD): 1 11/16" x 8 13/16" x 6 7/8" (43.18 mm x 223.52 mm x 175.26 mm)
Weight: 3 lb (1.4 kg)
Mounting Options: Compatible with all V Style versatile mounting options including rack, surface, or pole
Compatible AMX Enova
DVX/DGX and DXLink
products:
• Enova DGX 8/16/32/64 Digital Media Switchers
• Enova DVX-3155HD, DVX-3156HDand 2155HD All-In-One Presentation Switchers
• DXLink HDMI Twisted Pair RX
Included Accessories: • (2) 5-pin Phoenix connectors
• (1) 4-pin Phoenix connector
• (4) rubber feet
To Next Page
