Wiring Specifications
21
Instruction Manual - Solecis Digital Switchers
Wiring Specifications
Overview
This chapter provides the port pinouts and wiring specifications (when applicable) for each port on the front and rear
panels of the Solecis Digital Switchers.
Port Pinouts and Wiring Specifications
The following sub-sections describe the wiring for each port on the SDX switchers. Refer to the Device
Connectors section on page 13 for the component layout of the switchers.
HDMI INPUTS
The HDMI INPUT connectors on Solecis Digital Switchers are used to connect source input devices to the device. The
switcher routes digital video and audio from connected source input devices to the connected output devices. These ports
support HDMI (with 3D and Deep Color) and HDCP.
The following table describes the pinout configuration of the HDMI INPUTS connectors:

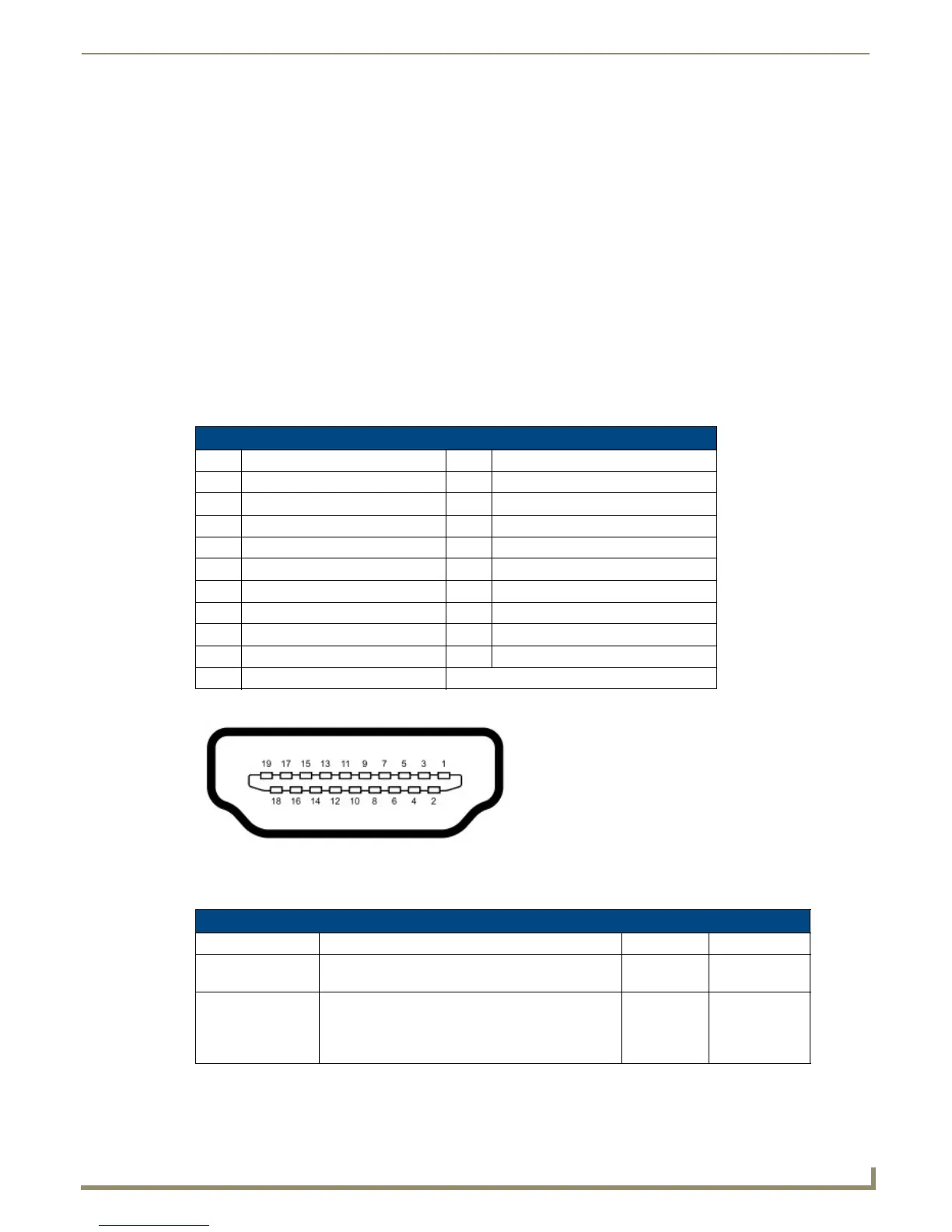

FIG. 19 displays the pin locations for the HDMI INPUTS:
FIG. 19 HDMI pinouts
To connect HDMI input source devices (DVI and HDMI) to the HDMI INPUT connectors, the following (optional)
adapter cables are required:
HDMI INPUT Connectors - Pinouts and Signals
Pin Signal Pin Signal
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock-
3 TMDS Data 2- 13 CEC
4 TMDS Data 1+ 14 Reserved, HEC Data
5 TMDS Data 1 Shield 15 SCL
6 TMDS Data 1- 16 SDA
7 TMDS Data 0+ 17 DDC/CEC/HEC Ground
8 TMDS Data 0 Shield 18 +5V Power (max 50mA)
9 TMDS Data 0- 19 Hot Plug Detect, HEC Data+
10 TMDS Clock+
DVI Input Adapter Cables
Name Description Length FG#
HDMI Interface
Cable
HDMI Male to HDMI Male 6 1/2’ (2m) FG10-2178-05
HDMI to DVI Cable HDMI Male to DVI Male
(See the DVI Pinout for DVI-to-HDMI Cable
Adapter section on page 22 for more information on
DVI-to-HDMI cable wiring.)
6’ (1.828m) FG10-2179
