Device Connectors
19
Instruction Manual - Solecis Digital Switchers
USB (SDX-510M-DX only)
The two type-A USB connectors on the front panel are used to connect peripheral devices to the SDX-510M-DX
(FIG. 16). You can use the type-B USB connector to connect the switcher to a PC and emulate keyboard and mouse
commands from a DXLink Receiver.
Note: The Type-A USB connectors are reserved for future use.

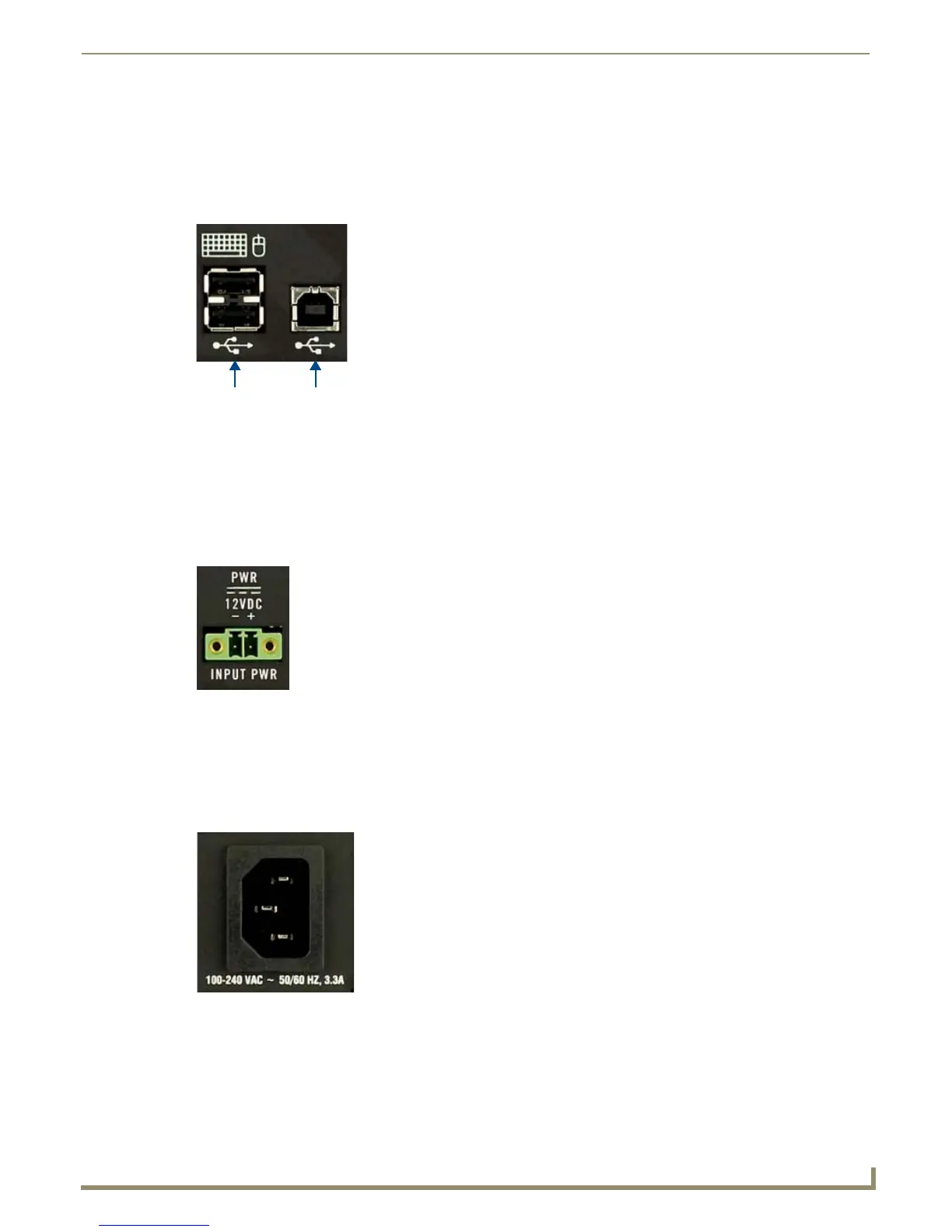

FIG. 16 displays the USB ports.
FIG. 16 USB ports
Power
This section describes the power options for the Solecis Digital Switchers.
Note: Apply power to the unit only after installation is complete.
INPUT POWER Connector (SDX-410-DX and SDX-810-DX only)
The INPUT PWR connector is a 2-pin 3.5mm screw terminal connector with retention screws. This power connector is
available on the SDX-410-DX and SDX-810-DX.
FIG. 17 INPUT PWR connector
Optimal performance requires use of one of the following AMX power supplies (not included):
PSR4.4, 13.5 VDC, 4.4 A Power Supply with 3.5mm Phoenix Connector with Retention Screws (FG423-46)
PSN6.5, 13.5 VDC, 6.5 A Power Supply with (3) 3.5mm Phoenix Connectors (FG423-41)
AC Power Connector (SDX-510M-DX only)
The SDX-510M-DX receives power through a 110-240VAC, 47-63 Hz connector. FIG. 18 displays the power switch and
connector for the SDX-510M-DX.
FIG. 18 Power Connector/Switch/Fuse
