Device Connectors
16
Instruction Manual - Solecis Digital Switchers
ID Pushbutton
The ID Pushbutton can be used to perform f our types of initial configuration settings:
Toggle between DHCP and static IP addressing (see page 30)
Assign a device address (see page 31)
Reset the unit to its factory default settings, which affects the parameters but not the firmware version (see
page 31)
Restore the unit to its factory firmware image, which affects both the firmware version and the parameters
(see page 32)
The functions performed depend on when and for how long the ID Pushbutton is pressed and held. ID Pushbutton
functions can also be implemented using Telnet commands.

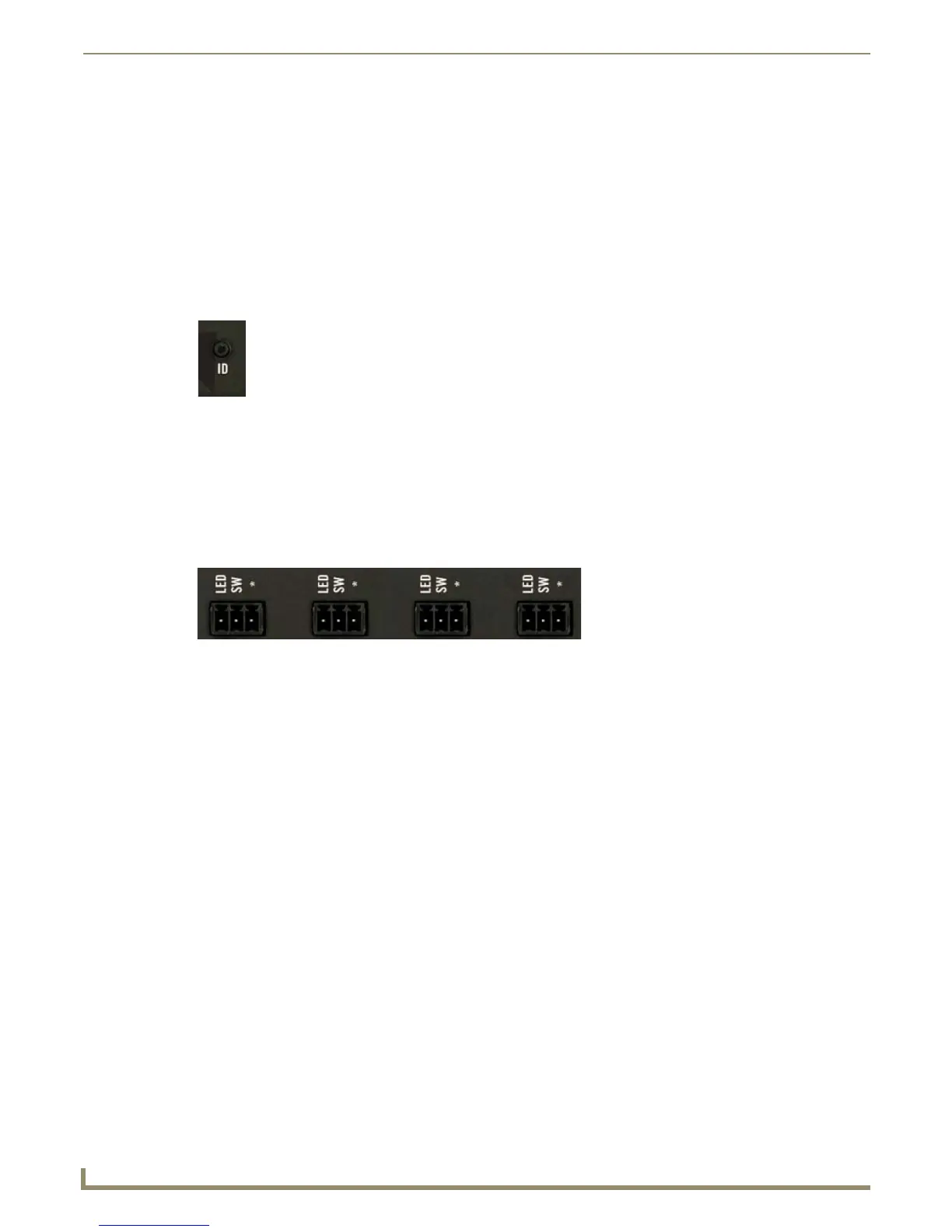

FIG. 8 displays the ID pushbutton.
FIG. 8 ID Pushbutton
External Button/LED Control Connectors
The External Button/LED Control connectors are 5-pin, 3.5mm terminal screw connectors that you can use to connect a
single-button module such as the HPX-U100-BTN. The SDX-410-DX features two connectors, while the SDX-810-DX
features four. (The SDX-510M-DX features two sets of Dual External buttons. See the GROUP INPUTS
(SDX-510M-DX only) section on page 17 for more information.) With a single button module connected to one of these
ports, you can press the button on the module to send a button press event to a connected Master. You can use this
function to have the Master send a command back to the switcher to execute a switch.
FIG. 9 displays the External Button/LED Control Connectors on the SDX-410-DX.
FIG. 9 External Button/LED Control connectors (SDX-410-DX)
