Installation
28
Instruction Manual - Solecis Digital Switchers
2. Set the device aside. If using the wood screws provided, drill pilot holes (drill size 29; hole diameter 0.136 in.) for
the screws 1/2 inch (1.27 cm) deep. Insert the screws in the holes, but do not tighten them completely.

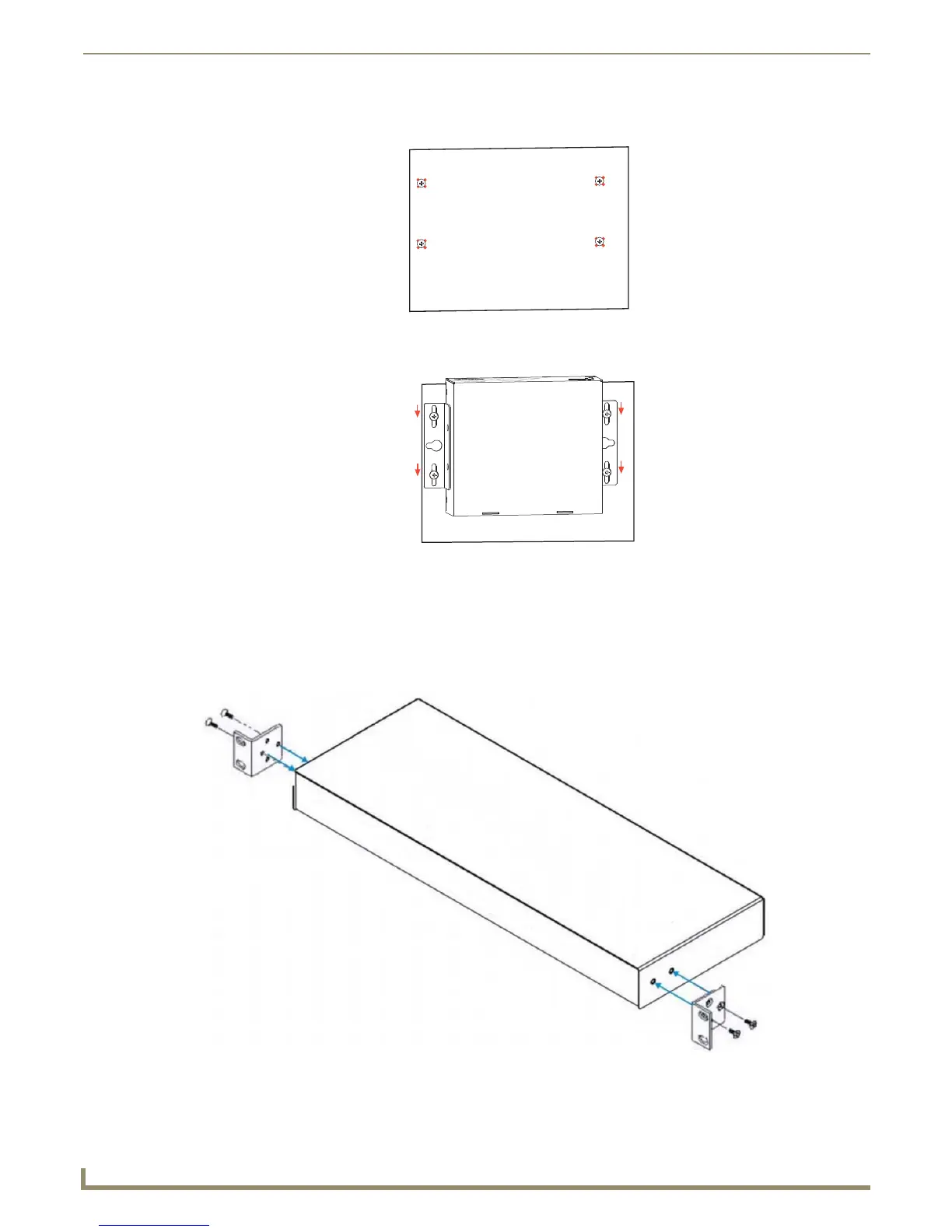

FIG. 30 Pilot holes with screws
3. Align the module with the center of the double key-hole slots over the screws and slide into place as indicated in
FIG. 31.
FIG. 31 Sliding the switcher onto the Wall Mount Screws
4. Tighten the screws.
Rack Ear Brackets
Rack ear brackets are included with the SDX-810-DX. The rack ear brackets are designed for mounting a single module
(to a wall, on or under a desk, etc.) You can rotate the included brackets 90° in any direction to accommodate several
different mounting options, including tabletop, under/over the table, and vertical wall mounting.
Position and install the mounting brackets, as shown in FIG. 32, using the supplied mounting screws.
FIG. 32 Mounting the rack ears on the SDX-810-DX
