Configuring Communication Settings
42
TPI-PRO-DVI - Instruction Manual
Assigning a Device Number to the TPI
1. Press the front panel SETUP pushbutton to open the Setup page (FIG. 36).
2. Press the Protected Setup button to open the Protected Setup page. This page is password-protected:
a. Use the on-screen keypad to enter the default password - 1988.
b. Press Done to close the keypad (FIG. 37).
NOTE: Clearing Password #5 from the initial Password Setup page, removes the need for you to enter the default password
before accessing the Protected Setup page.
3. Enter a Device Number value for the TPI (FIG. 37):
a. Press the red Device ID field to open the keypad.
b. Enter a Device Number value for the TPI.
c. Press Done to assign the device number close the keypad.
The default value is 10001
Range = 1 - 32000
When using multiple TPIs within a NetLinx System, assign unique Device Number values to each TPI.
NOTE: Changes made in the Setup pages are not incorporated until the TPI is rebooted. See the Rebooting the TPI section on
page 51 for details.

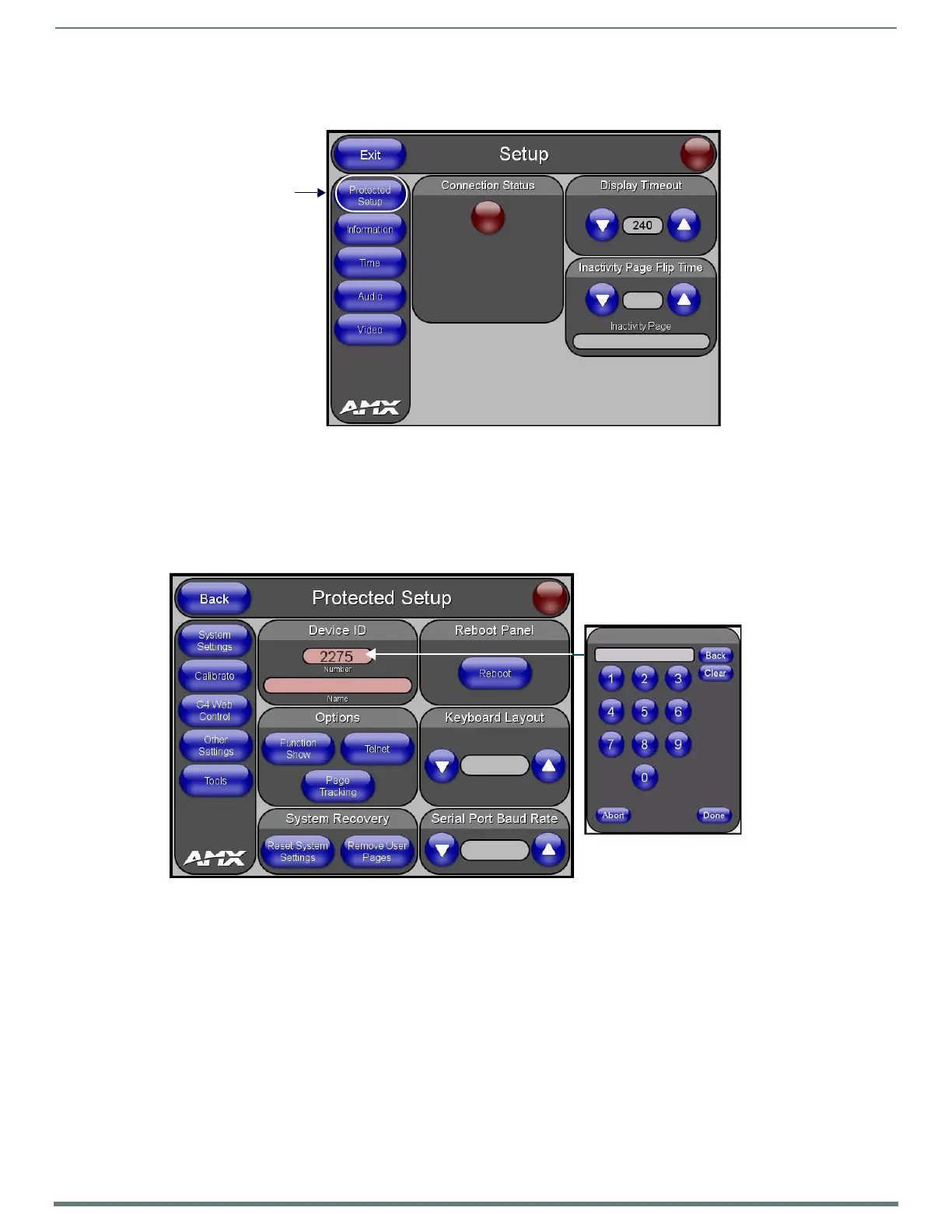

FIG. 36
Setup page - Protected Setup button
FIG. 37 Protected Setup page with Keypad
Press to access the
Protected Setup page
(password-protected)
2275
