AMX TPI-PRO-DVI-2 User Manual

TPI-PRO-DVI (Total Presentation Interface-DVI)
13
TPI-PRO-DVI - Instruction Manual
TPI-PRO-DVI (Total Presentation Interface-DVI)
Overview
The TPI-PRO-DVI (Total Presentation Interface-DVI) transforms third party touch screens into interactive displays with stunning
control graphics and animation just like AMX Modero Touch Panels.
Using the TPI-PRO-DVI, third party touch screens can simultaneously display up to 4 fully-scalable video windows, each supporting
Composite, S-Video, Component, VGA and DVI signals. Classrooms, courtrooms and conference rooms can use the TPI-PRO-DVI to
easily switch between any of the four simultaneously displayed sources on the fly, as well as control content in real-time.
The TPI-PRO-DVI is the perfect tool to use with any large plasma or LCD display equipped with a touch overlay. Alternatively, the
TPI-PRO-DVI output can be displayed on any monitor or projector and a USB keyboard/mouse can be used to navigate the system.
CAUTION: With incorporated scaling, the original video sources can be anything from Composite to DVI, future proofing your facility
for the eventual changeover to all digital video.
The TPI-PRO-DVI receives control and touch point information from a variety of pointing devices (i.e. touch screen, mouse, or
keyboard), and connects to the control system via Ethernet.
The TPI-PRO-DVI is available in two versions:
The TPI-PRO-DVI-4 (FG2275-114) supports up to four DVI inputs.
The TPI-PRO-DVI-2 (FG2275-112) supports up to two DVI inputs.
Both TPI-PRO-DVIs support high resolution inputs/outputs:
Inputs (2 or 4): Accepts S-Video, Composite, VGA (up to 1920x1200), Component (up to 1080p) and DVI (up to
1920x1200, single-link DVI only). Inputs can be scaled to fit into independent windows or viewed full-screen.
Outputs (2): VGA or DVI up to 1920x1200 (WUXGA) at 60 Hz.
NOTE: In order to connect non-DVI input source devices (S-Video, Composite, VGA or Component) to the TPI-PRO-DVI’s DVI Input
connectors, the (optional) adapter cables are required. See the DVI Input Adapter Cables section on page 17 for details.
Basic features of both include:
Up to 4 video or graphics windows can be simultaneously displayed and controlled
USB (wired and wireless) mouse pass-through allows the presenter to view and control up to four computers from one
display
NOTE: HDMI graphics / video capability is only possible when using an HDMI-to-DVI adapter. The TPI-PRO-DVI does not support HDMI
HDCP or audio.
TPI-PRO-DVI Specif ications
The following table lists the specifications for the TPI-PRO-DVI-4 and TPI-PRO-DVI-2. Note that the primary difference between the
TPI-PRO-DVI-4 and TPI-PRO-DVI-2 is in the number of inputs. In terms of functionality and specifications, they are otherwise
identical. Therefore, the specifications listed below apply to both versions, unless specifically noted.

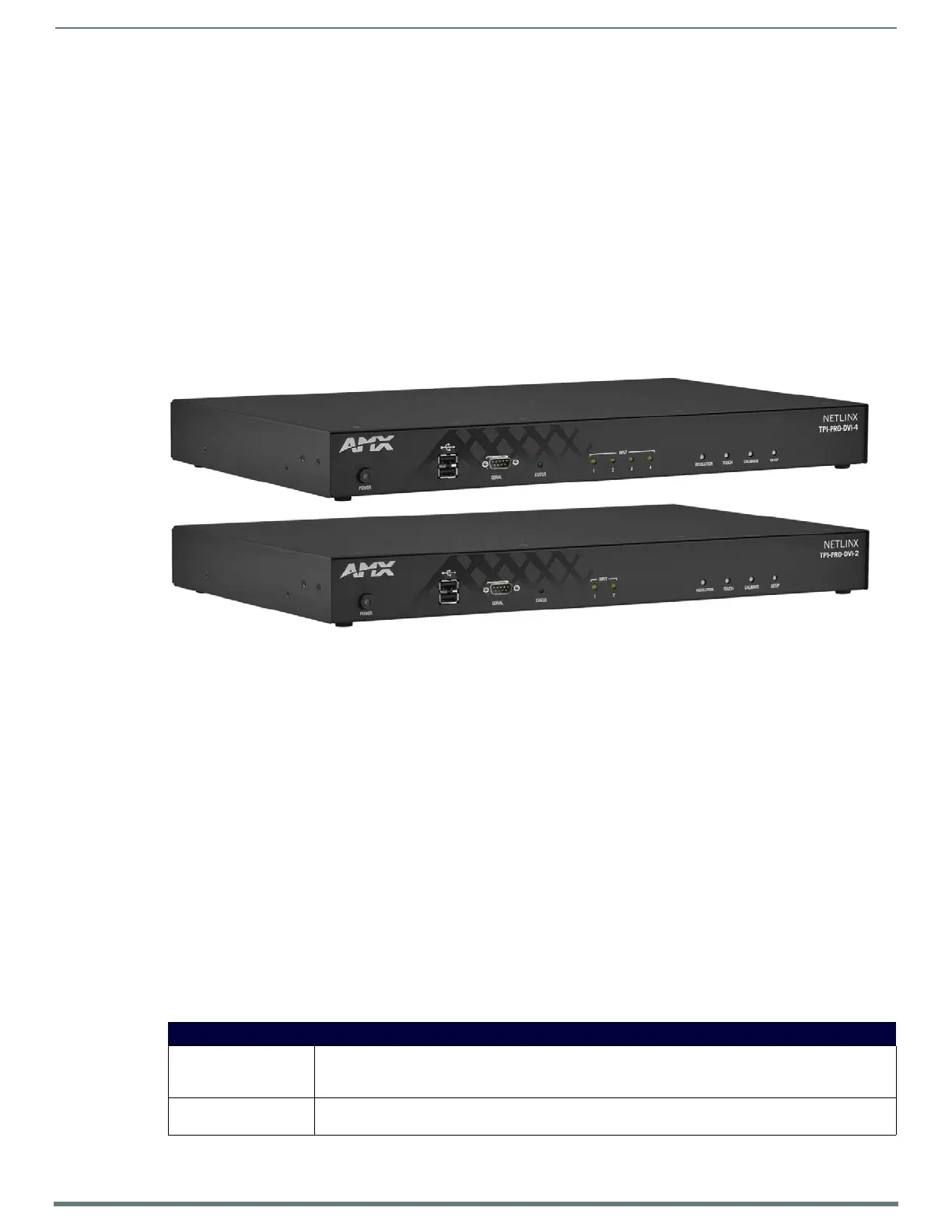

FIG. 1
TPI-PRO-DVI-4 and TPI-PRO-DVI-2
TPI-PRO-DVI Specifications
• Power Requirements: • Constant current draw: 2.6 A @ 12 VDC
• The PSN6.5 Power Supply (FG423-41 - not included) is recommended, to accommodate all possible
configurations and respective power draws.
•Memory: •256 MB SDRAM
• 256 MB disk memory
