TPI Configuration Pages

TPI-PRO-DVI - Instruction Manual

Panel Information Page

Press the TOUCH pushbutton on the front panel (see FIG. 52 on page 52) to access the Panel Information Page (FIG. 54).

The Panel Information Page displays various properties of the TPI (read-only):

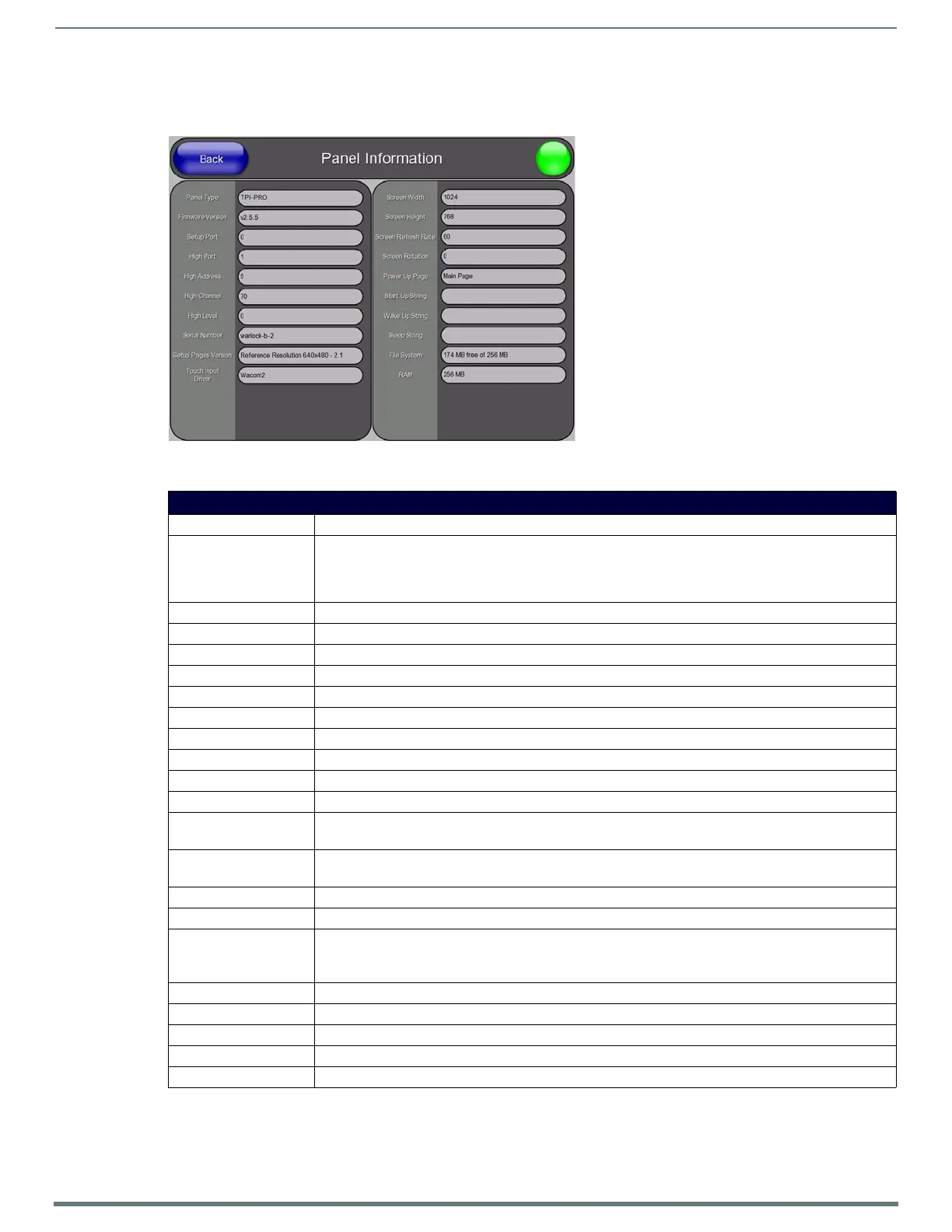

FIG. 54

Panel Information Page

Back: Saves the changes and returns to the previously active touch panel page.

Connection Status icon: This visual display of the connection status allows the user to have a current update of the TPI’s connection

status regardless of what page is currently active.

• A Lock only appears on the icon if the TPI has established a connection with a currently secured target

Master (requiring a username and password).

• Panel Type: Displays the type of G4 device (TPI-PRO-DVI) being used.

• Firmware Version: Displays the version of G4 firmware currently loaded.

• Setup Port: Displays the TPI’s Setup Port value.

• High Port: Displays the TPI’s high port (port count) value.

• High Address: Displays the TPI’s high address (address count) value.

• High Channel: Displays the TPI’s high channel (channel count) value.

• High Level: Displays the TPI’s high level (level count) value.

• Serial Number: Displays the TPI’s serial number.

• Setup Pages Version: Displays the type and version of the Setup pages.

• Touch Input Driver: Displays the driver used for the touch monitor.

• Screen Width: Displays the pixel width sent by the TPI to the display.

• The maximum available screen width on a TPI is 1920 pixels.

• Screen Height: Displays the pixel height sent by the TPI to the display.

• The maximum available screen height on a TPI is 1200 pixels.

• Screen Refresh Rate: Displays the refresh rate sent to the display.

• Screen Rotation: Displays the degree of rotation applied to the on-screen image.

• Power Up Page: Displays the touch panel page set to display when the TPI is powered-up.

• This information comes from the TPD4 project file.

• Most projects begin with a Main page.

• Start Up String: Displays the string used for start-up.

• Wake Up String: Displays the string used for an activation after a timeout.

• Sleep String: Displays the string used during the sleep mode.

• File System: Displays the amount of internal disk space available on the TPI.

• RAM: Displays the amount of RAM available on the TPI.
