UDM-0808-SIG NetLinx Programming
13
UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide
UDM-0808-SIG NetLinx Programming
Overview
There are a select number of LEVELs and SEND_COMMANDs recognized by the UDM-0808-SIG. Use
NetLinx Studio to send these commands to the UDM Hub.
Device Numbering
By default, the Device Number assigned to the UDM-0808-SIG is 05600.
In NetLinx Studio’s online device tree, the UDM-0808-SIG is listed as a device with a single port, and each
UDM-RX02N Receiver connected to the Hub is listed as a separate device immediately following the Hub
(FIG. 12).
Note that the device number for each UDM-RX02N Receiver currently connected to the Hub is automatically
designated a device number, based on the device number of the Hub to which it is connected, and the number
of the UDM Output RJ45 port on the Hub (1-8) to which it is physically connected.

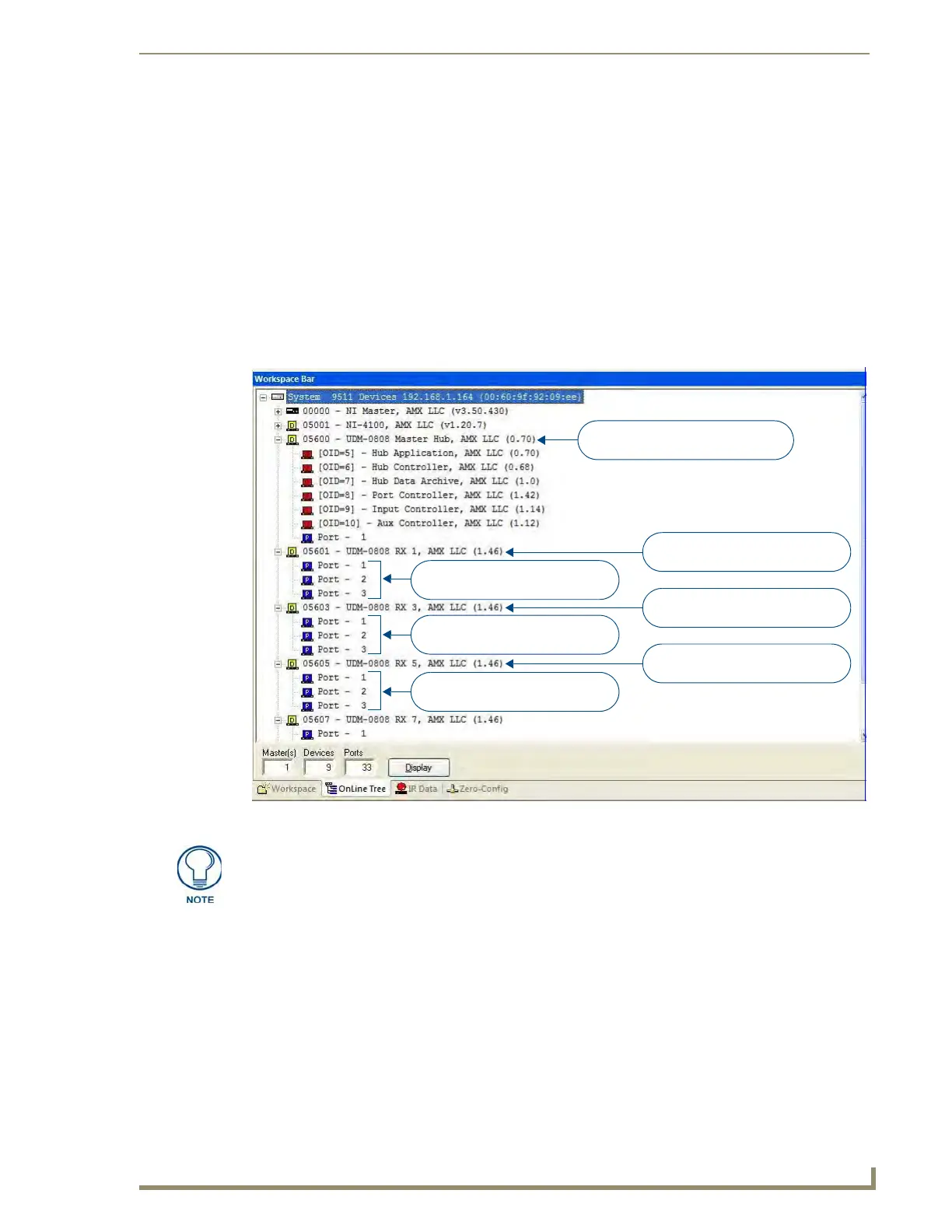

FIG. 12 NetLinx Studio Online Tree - indicating UDM-0808-SIG hubs and connected RX02N receivers
UDM-RX02N Receiver
number auto-assigned to 05601
Ports 1-3 on UDM-RX02N
(device number 05601)
Ports 1-3 on UDM-RX02N
(device number 05603)
Ports 1-3 on UDM-RX02N
(device number 05605)
UDM-0808-SIG Hub, with device
number assigned to 05600 (default)
UDM-RX02N Receiver
number auto-assigned to 05603
UDM-RX02N Receiver
number auto-assigned to 05605
Only UDM-RX02N units that are physically connected to the Hub will be represented
in the Online Tree.
