UDM-RX02N Multi-Format Receiver
39
UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide
UDM-RX02N Multi-Format Receiver
Overview
Installed at the display device, the UDM-RX02N (FG1402-20) converts the signal received from UDM-0808-
SIG Hubs to standard audio/video signals. In addition, the RX02N supports AMX IR(.irl) files to provide
native AMX device control. Serial control of the display device is also possible via standard asynchronous
serial support.
The UDM-RX02N is powered locally to support long cable runs and is capable of being powered remotely
when short cable runs are used. With intelligent receiver technology, each UDM-RX02N is powered remotely
from the Multi-Format Distribution Hub via Cat5/5e/6/7 Ethernet cable.
Distances of 1,000 feet/300 meters are supported at 1280x1024; higher resolutions are supported at shorter
distances.
Common Application
Perfect for the receiving end of a variety of sources such as HDTV Satellite tuners, Blu-Ray DVD players and
PCs just to name a few to be displayed in rooms throughout a residence or in classrooms, conference rooms
presentation rooms or other commercial applications.
Features
Video Support for 1600 x 1200 (UXGA), 1920 x 1080 (HDTV), Component Y/Pb/Pr,
S-Video, CVBS-PAL/NTSC
S/PDIF, Digital and analog stereo audio support
IR blaster and receiver ports
Compatibility
The UDM-RX02N is primarily intended for use with the UDM-0808-SIG Hub (FG1402-01).
The UDM-RX02N may also be used with the DVX-2100HD Total Environment Controller (FG1905-01/02).
Refer to the DVX-2100HD Operation Reference Guide for details of this usage.
Product Specifications

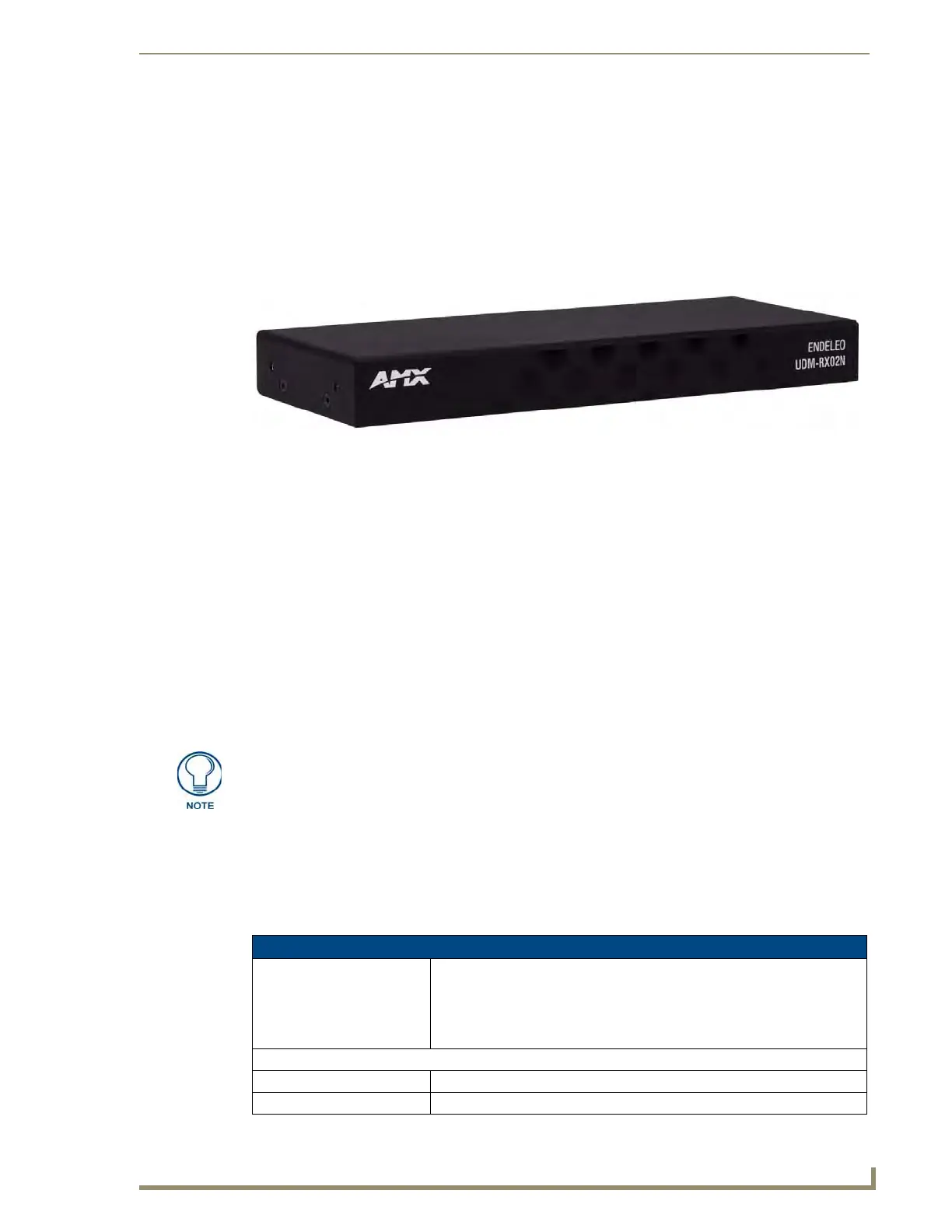

FIG. 32 UDM-RX02N
Unlike previous versions of the UDM receiver, the UDM-RX02N is a native NetLinx
device, and can be configured using the NetLinx Studio software application in cases
where it is connected to a UDM-0808-SIG or DVX-2100HD.
UDM-RX02N Specifications
Power Requirements: • 24VDC @ .75A
• Power via UDM-0808-SIG (UTP pins 7 & 8) supported for cable runs of less
than 328' / 100M.
• Local 24VDC, 750mA Power Supply required for cable distances above
328’ / 100M (FG-UDM-PS, included)
Rear Panel Connectors:
Power Socket: 2.1mm barrel-style DC power socket (female)
UDM Hub (RJ45) Port: Provides a/v transport as well as control via Cat5/5e/6 to an UDM Hub.
