AMX UDM-0808-SIG - Product Specifications; Connecting the UDM-ABB-8-SIG to an UDM-0808-SIG

UDM-ABB-8-SIG Audio Breakout Box
72
UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide
Product Specifications
Connecting the UDM-ABB-8-SIG to an UDM-0808-SIG
Use a UDM-EXP01 Cascade cable (FG1402-71) to connect the ABB to the UDM-0808-SIG Hub that will
provide the audio sources (FIG. 63), as described below:
1. Connect a UDM-EXP01 Cascade Cable to the appropriate CASCADE (OUT) port on the UDM Hub
(CASCADE 1-4 or CASCADE 5-8):
Use the CASCADE 1-4 (OUT) port to cascade audio from outputs A-D on the UDM Hub to the
ABB.
Use the CASCADE 5-8 (OUT) port to cascade audio from outputs E-H on the UDM Hub to the
ABB.
UDM-ABB-8-SIG Specifications
Power Requirements: • Power is supplied from the cascade output port of the UDM-0808-SIG Hub.
• Power dissipated less than 5W.
Front Panel Components:
Power Status bar: Blue light bar on front panel indicates unit is powered.
Rear Panel Components:
Audio In Connections: 2 SCSI ports support audio input from the Cascade Out ports on an UDM-0808-SIG
Hub.
Audio Outputs: • Black RCA female connector - Digital audio (SPDIF)
• White RCA female connector - Analog audio Left
• Red RCA female connector - Analog audio Right
Operating Environment: • 32 - 104°F (0 - 40°C)
• Max. relative humidity - 85% (non-condensing)
Dimensions (HWD):
• 1 3/4" x 19" x 12 1/2" (45 mm x 440 mm x 320 mm)
•1 RU
Weight:
8.0 lbs (3.62 Kg)
Certifications: • CE
• FCC part 15 Class A
Included Accessories: • 19" mounting brackets
• 2 UDM-EXP01 50-Pin Hub Cascade Cables (FG-UDM-EXP01)
Note: No audio cables supplied.

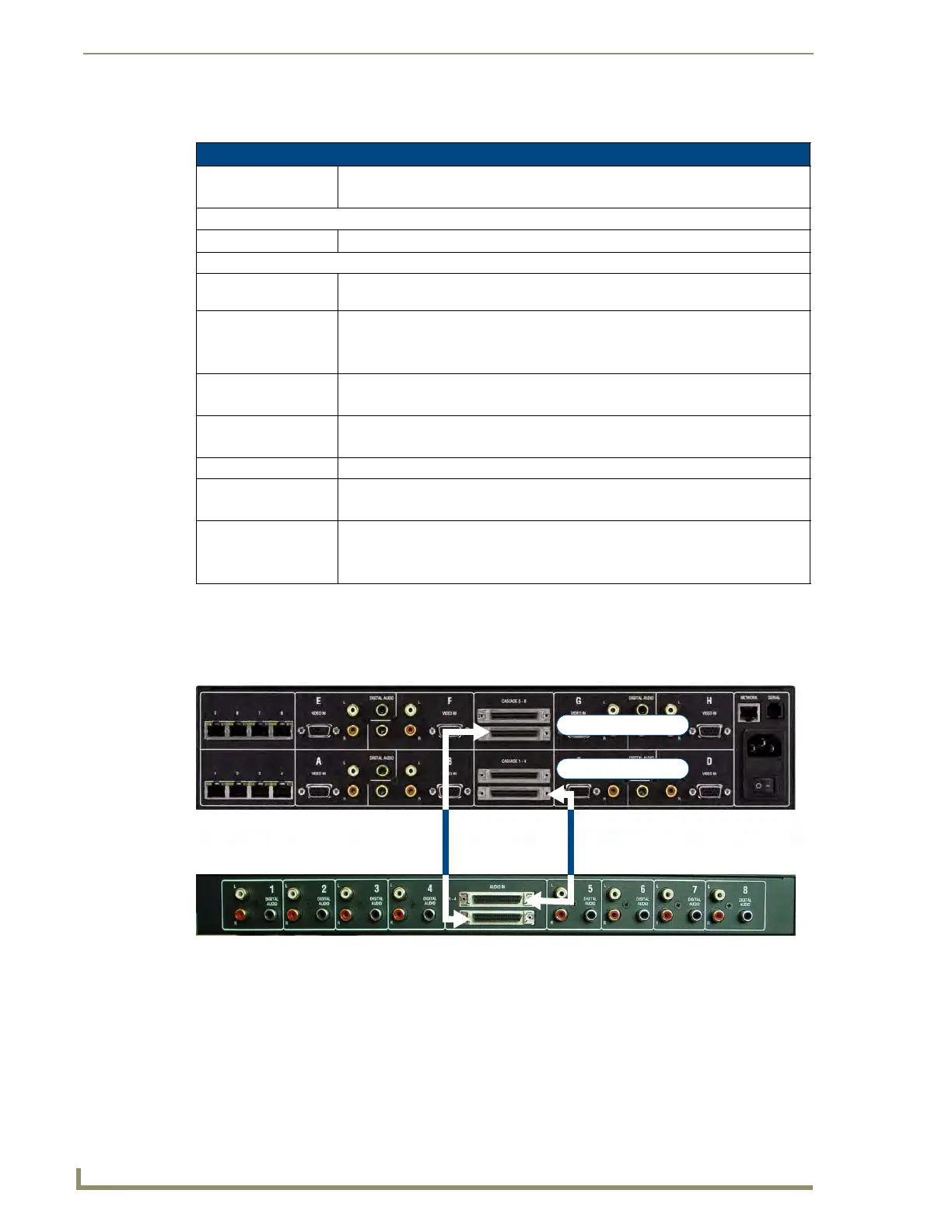

FIG. 63
Connecting the UDM-ABB-8-SIG to an UDM-0808-SIG
AUDIO IN (1-4)
AUDIO IN (5-8)
IN
OUT
IN
OUT
CASCADE 5-8
CASCADE 1-4
UDM-0808-SIG
UDM-ABB-8-SIG
UDM-EXP01 Cascade Cable UDM-EXP01 Cascade Cable
