UDM-RC05 Multi-Format IR Remote Control
69
UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide
Using the UDM-RC05 for Video Compensation
The UDM-RC05 can also be used with UDM-RX02N receivers for video compensation (FIG. 61):
Enter setup mode - press MENU, then AMX
Exit setup mode - EXIT
Red skew increase - RED
Green skew increase - GREEN
Blue skew increase - BLUE
Gain (brightness) - LEFT and RIGHT
Sharpness - UP and DOWN
UDM-RC05 - IR Codes (Cont.)
IR Code Function Description
65 Green
66 Yellow
67 Enter Passthrough Endeleo (UDM-0102)
Blue NetLinx (UDM-0808/SIG, DVX-2100HD)
68 Backup/Back Sky/DirecTV
70 Play Control source device/Sky+/DirecTV
71 Pause Control source device/Sky+/DirecTV
72 Stop Control source device/Sky+/DirecTV
73 Record Control source device/Sky+/DirecTV
74 Fast Forward Control source device/Sky+/DirecTV
75 Rewind Control source device/Sky+/DirecTV
79 Interactive/Active Sky/DirecTV
81 Cancel Passthrough Endeleo (UDM-0102)
AMX NetLinx (UDM-0808/SIG, DVX-2100HD)

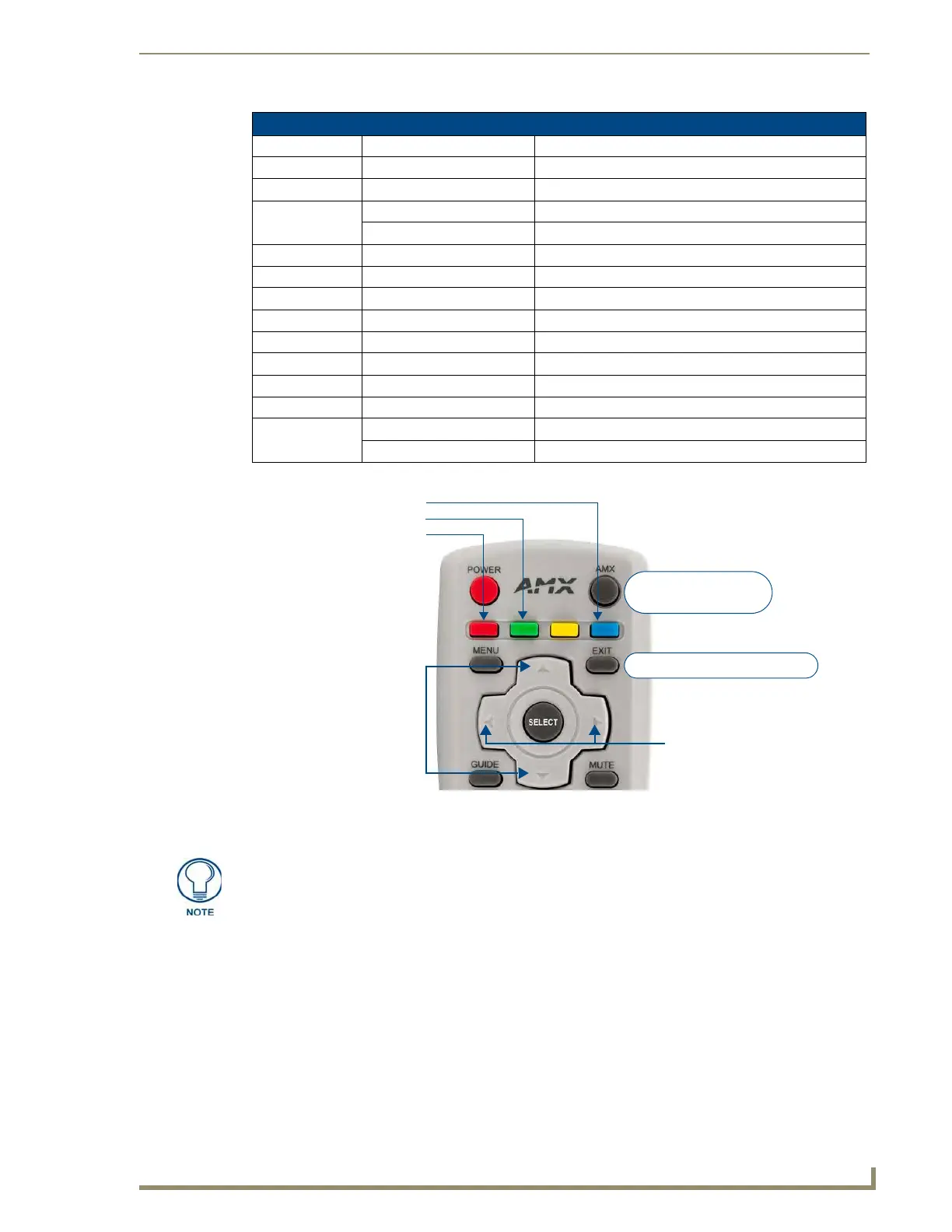

FIG. 61
UDM-RC05 IR Remote Control - Video Compensation buttons
Red skew increase
Green skew increase
Blue skew increase
Gain (Brightness)
Press MENU then AMX
to enter Setup mode
Press EXIT to exit Setup mode
Sharpness
In order to use the UDM-RC05 to compensate video on the UDM-RX02N, the RX02N
must be set to the AMX remote, via the "RP" command described on page 50.
