UDM-RX02N Wiring and Connections
45
UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide
Using the UDM-RC05 for Video Compensation
FIG. 41 indicates the buttons on the UDM-RC05 IR Remote Control that can be used for video compensation
n the UDM-RX02N:
Enter setup mode - press AMX, then MENU
Exit setup mode - EXIT
Red skew increase - RED
Green skew increase - GREEN
Blue skew increase - BLUE
Gain (brightness) - LEFT and RIGHT
Sharpness - UP and DOWN
IR Tx (IR Transmitter) Port
The IR Tx IR Transmitter port supports wired control of connected IR devices (FIG. 39).
To issue IR commands to a display device, an IR01 External IR Emitter Module (FG-IR01, not included) is
required.
To connect an IR Emitter:
1. Connect an IR01 IR Emitter cable (FG-IR01) to the IR Tx port on the UDM-RX02N.
2. Run the other end of the IRTX cable to the display device and locate the IR window.
3. Attach the IR Emitter bud over the device’s IR sensor by removing the cover of the reverse side of the
Emitter and sticking it directly over the IR window.

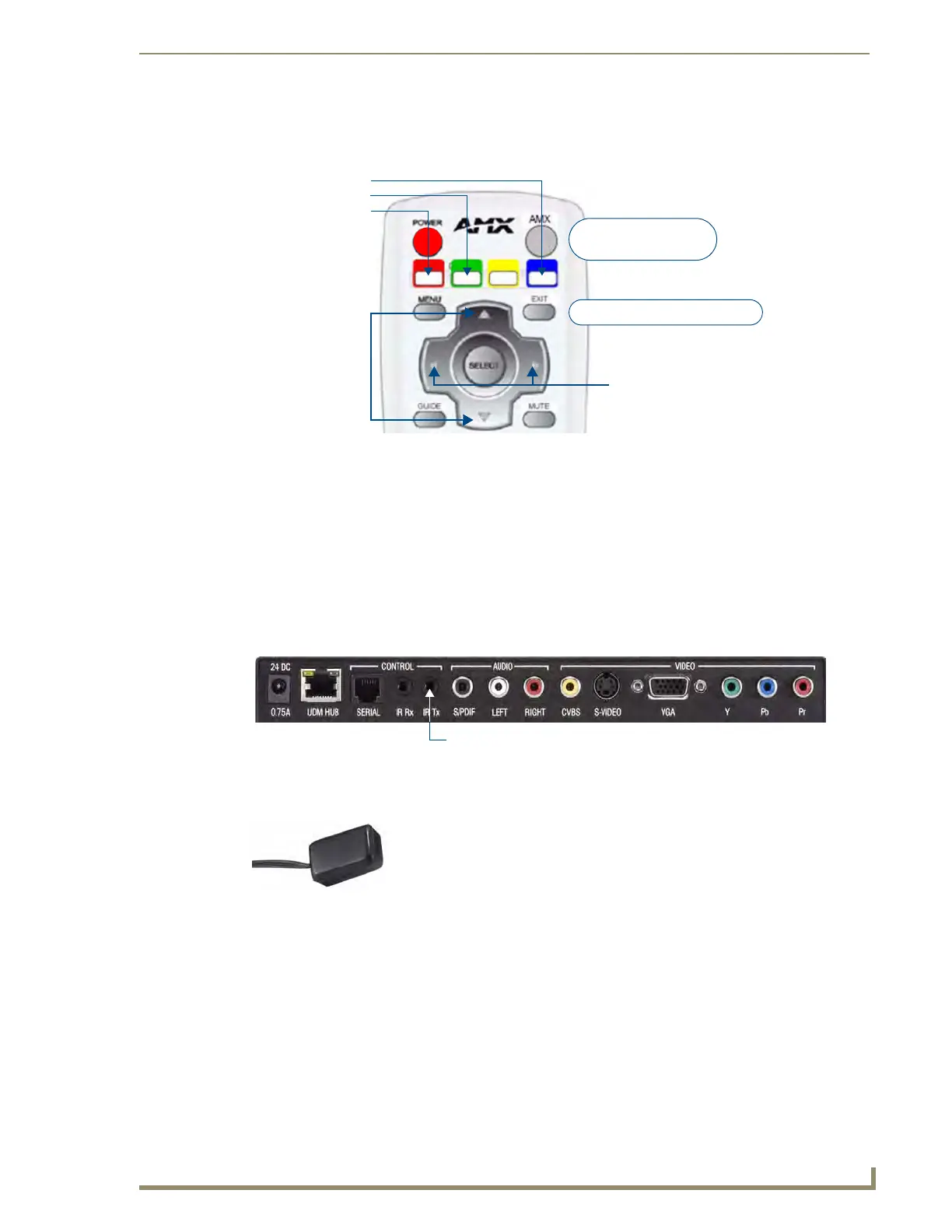

FIG. 41 UDM-RC05 IR Remote Control - Video Compensation buttons
FIG. 42 UDM-RX02N - IR Tx Port
FIG. 43 IR01 IR Emitter
Red skew increase
Green skew increase
Blue skew increase
Gain (Brightness)
Press AMX then MENU
to enter Setup mode
Press EXIT to exit Setup mode
Sharpness
IR Tx (IR Transmitter) Port
IR01 IR Emitter (FGIR01)
