MAXREFDES106# Health Sensor Platform 4.0

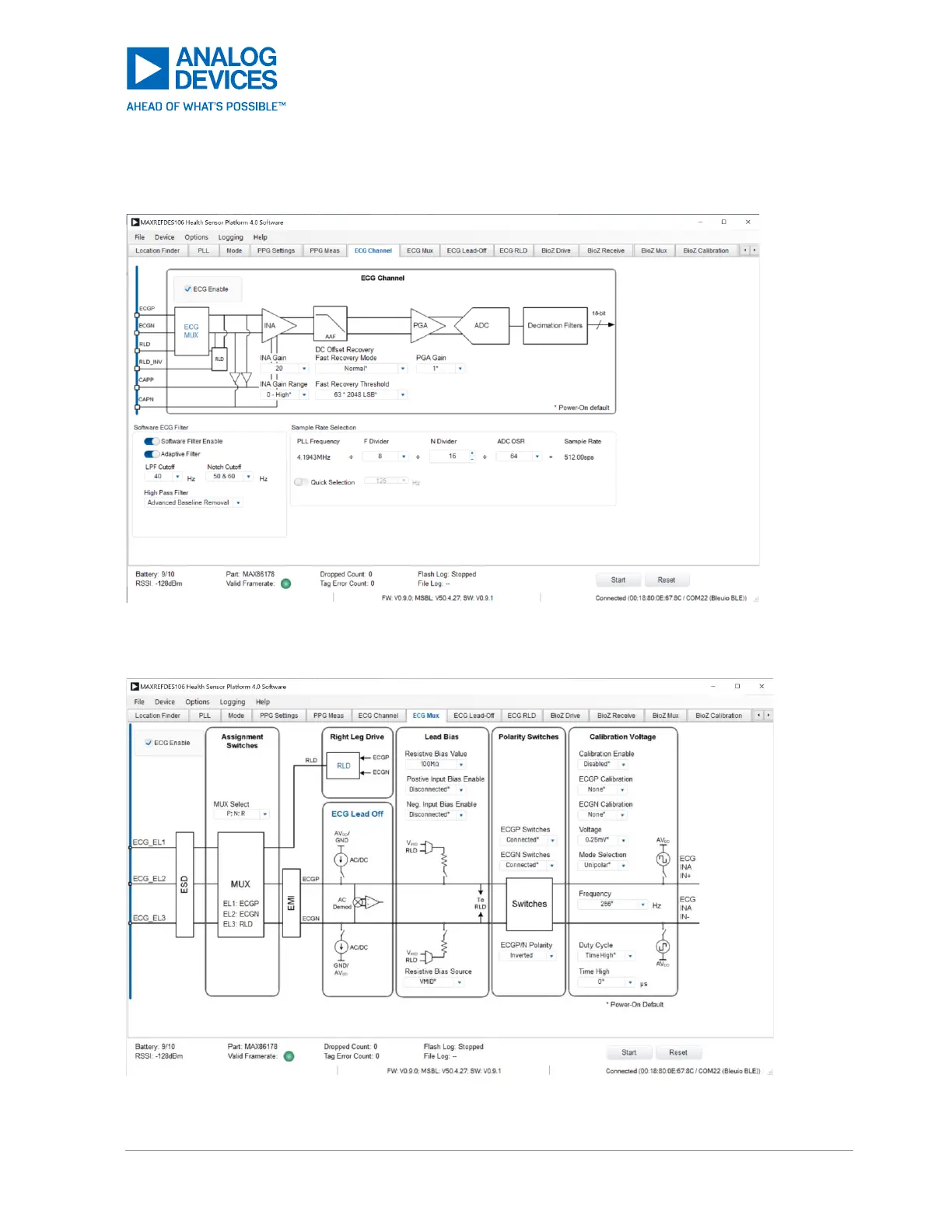

 ECG Channel: Keep power-on default settings.

Figure 32. ECG Channel Tab: Use Power-On Default Settings

 ECG Mux: Keep power-on default settings.

Figure 33. ECG Mux Tab: Use Power-On Default Settings
