- 13 -
ATTENTION!
DO NOT CONNECT THE CONTROLLER
TO A VOLATGE POINT USED FOR
OTHET ELECTRICAL EQUIPMENT.
IF THE CONTROLLER IS CONNECTED
TO RELAY STATION OF ANY KIND IT
MUST BE DISTANCED BY A MINIMUM
OF 5 METERS.

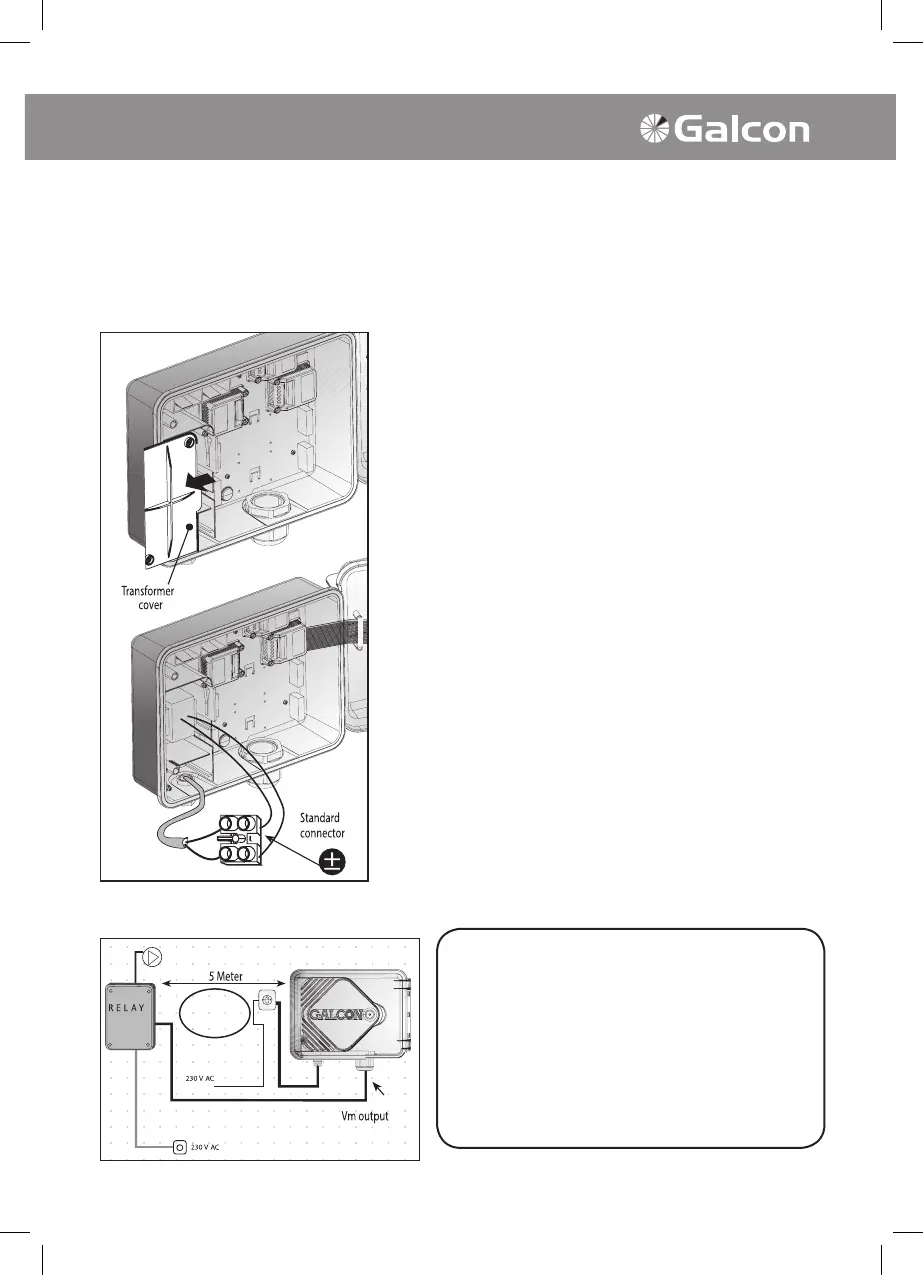

Installation and Wiring Instructions
5. Connecting the Controller to power source
If using an internal transformer, minimal wire diameter must be 0.7 mm
2
. Check with standard
measuring equipment that there is no voltage in the electric circuit.
Notice!
It is necessary to connect a two-polar switch between the
110VAC/230VAC electrical supply and the controller.
The 110 VAC/230 VAC supply point, the circuit and
connection to the transformer must be performed according
to "Field Electrical Regulations" by a licensed electrician who
is accredited with a license according to the Electrical Bill and
security requirements.
Mark the switch with a sticker "Disconnecting switch for
controller".
Disconnecting
switch for
controller
1. Open the controller panel by opening the screws at the
left side on the controller.
2. Remove the high voltage cover and screws.
3. Thread the electrical cable through the small cable
protector at the left.
4. Tighten the cable protector around the cable.
5. Connect the wires to the connector (included), the
connector can be pulled out for an easy connection.
6. Close the high voltage cover with the screws.
7. Close the controller panel.
