B-3 Ethernet Configuration LAN and DHCP
B-2 PN: 10580-00251 Rev. T MS2712E/13E User Guide
Ethernet Menu
Key Sequence: Shift, System (8)>System Options > Ethernet Config
Type
Manual DHCP: Press the Type submenu key to select whether the IP
address will be entered manually or will be supplied automatically by a
network DHCP server. See Figure B-2 and Figure B-3 on page B-3.
If Manual is selected, use the submenu keys or the Left/Right arrow keys to
select the field that is to be modified in the Ethernet Editor dialog. Use the
numeric keypad, the Up/Down arrow keys, or the rotary knob to enter the
values. Press Enter to accept the changes, or press the Esc key to exit
Ethernet Configuration without making changes.
If DHCP is selected with the Type key, press Enter to close the Ethernet
Editor dialog, then press Shift, System, and Status to view the IP address
assigned by the DHCP server. Press Esc to close the Status screen.
Field
IP G-Way Sub: Press this submenu key to select the desired Internet
Protocol Property to be edited.
First Octet: Moves the cursor to the leftmost column of the selected IP
properties field.
Second Octet: Moves the cursor to the second column from the left of the
selected IP properties field.
Third Octet: Moves the cursor to the third column from the left of the
selected IP properties field.
Fourth Octet: Moves the cursor to the fourth column from the left of the
selected IP properties field.

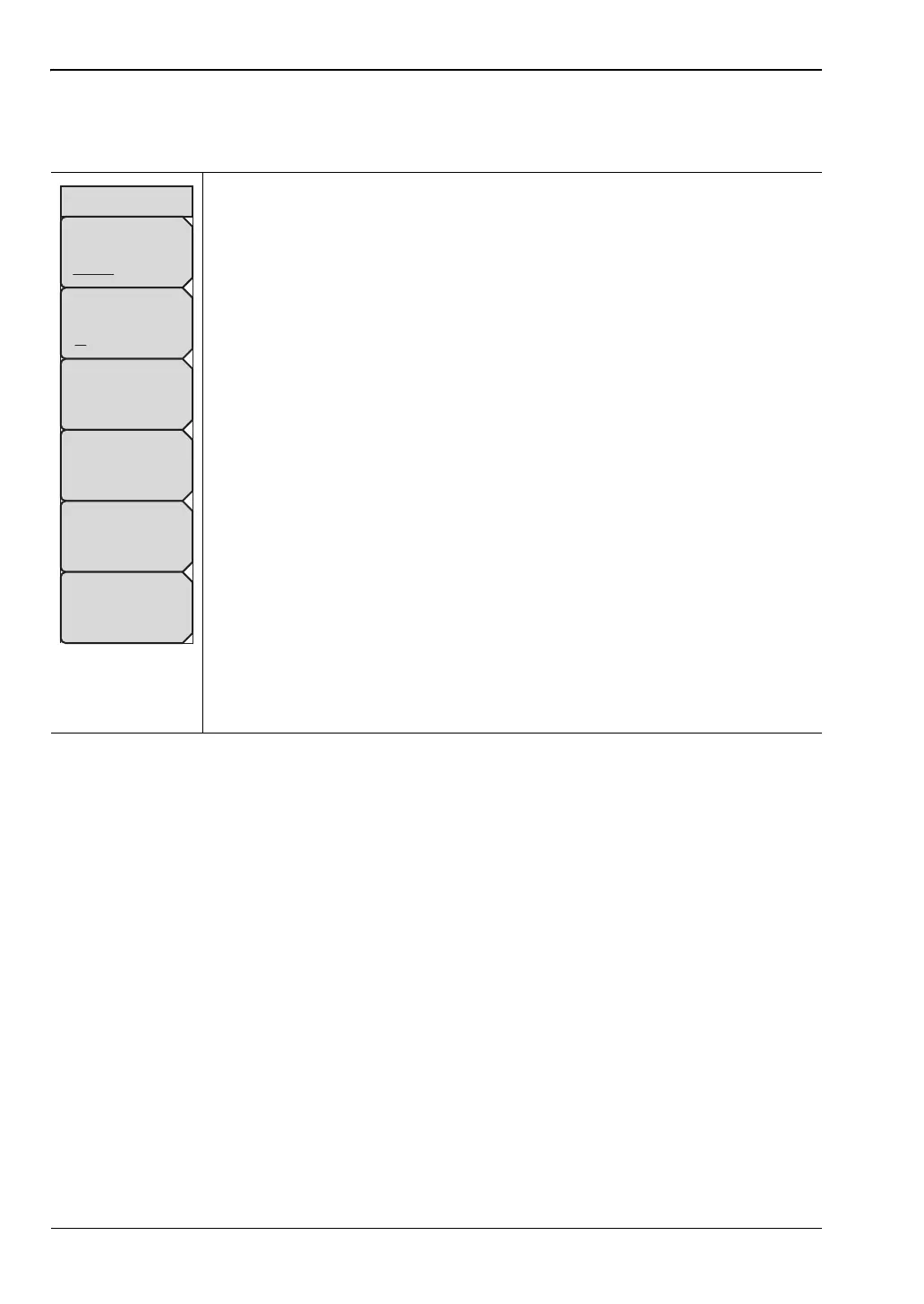

Figure B-1. Ethernet Menu
Ethernet
Type
Manual DHCP
Field
IP G-Way Sub
First Octet
Second Octet
Third Octet
Fourth Octet
