Installation GT3000
36 IMGT30017EN
3A.5.2 MICROPROCESSOR PLUS CONTROL BOARD

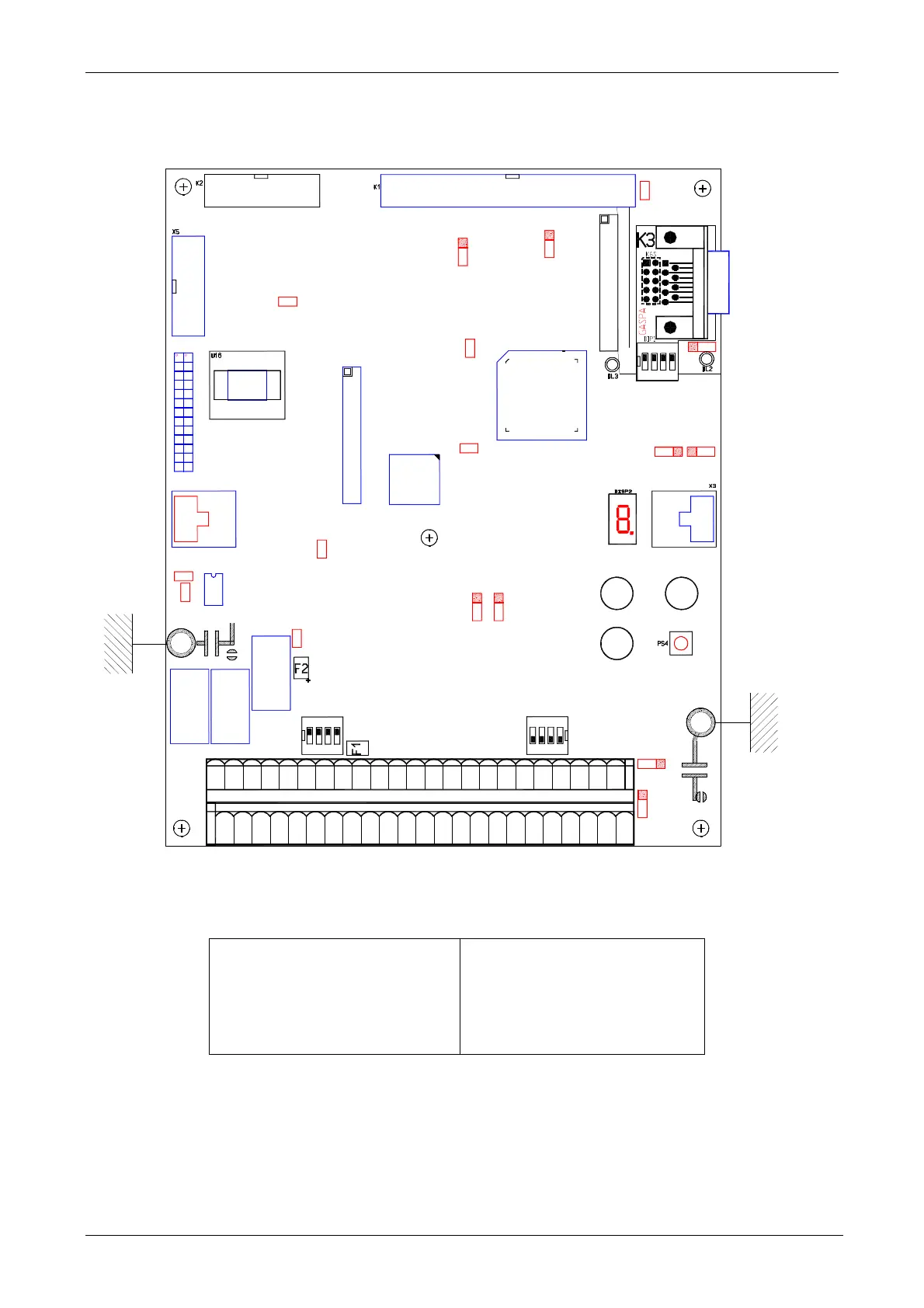

Figure 3A.5.2.A Microprocessor plus control board
Board Description
U1: microprocessor
U36: FLASH memory
U7: EEProm
U56: coprocessor
XM1: control terminal board
X5: synchronous interface (Fieldbus)U1:
RL1, RL2, RL3: relays
K3: RS232 / 485HD serial connectors
K4/K5: expansion board connectors
KUA1, KUB1: UCS interface connectors (opt.)
X3: keypads connector
X7: Digital I/O expansion card (SIOVA)
2725232119171513119
75
46
4544
43
42
41
JP17
K3
SW
1
SW1
1
JP16
JP18
JP3
JP2
JP13
JP14
JP15
JP5
JP7
JP4
JP6
JP8
JP22
JP1
JP23
JP19
KUA1
KUB1
X7
U7
1
SW3
RL3
RL1RL2
XM1
X3
K4
U1
U56
U36
K5
1 2 3 4 6 8 10121416 18 20222426 283032 343638 40
3937
35333129
