GT3000 Keypad
IMGT30017EN 61
6A.3.2 INSTALLATION ON ENCLOSURE DOOR
For the remoting of the keypad on the door, an optional kit has been forecast, made of:
SVGTRK ELC452936 Keypad remote kit for SVGT0P3 – 028F, SVGT200-940F and SVGT105-940K
SVGTRKB 1000087515 Keypad remote kit for SVGT030-940F and SVGT200-960K (Frame VII and VIII with door)
Frames VII and VIII made from december 2008 on have always the door.
SVGTRK SVGTRKB
Shell to mount the keypad
Shielded cable of connection (length 2m) to the
GT3000 (connector X3 of the control board)
Supports of fixation
Two gaskets for the recess and connector hole
Shell to mount the keypad
Shielded cable of connection (length 2m) to the GT3000
(connector X3 of the control board)
Supports of fixation
Two gaskets for the recess and connector hole
Adaptor, installed on the drive door instead of the keypad,
for X3 connector accessibility.

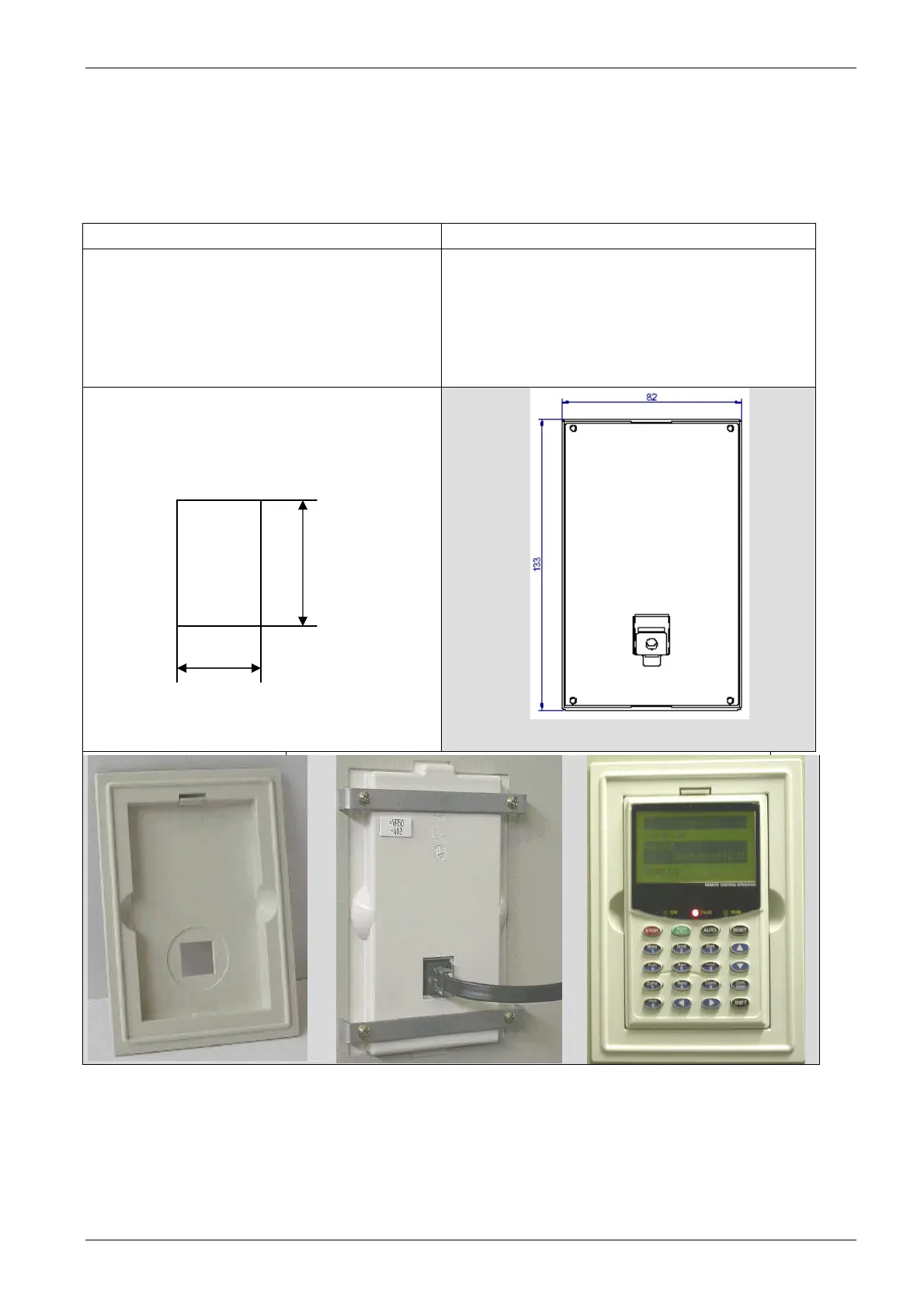

Figure 6A.3.3
Keyboard mounting housing.
Installation of housing requires a special recess in door.
Adaptor
Keypad protection degree: IP54
Keypad housing protection degree: IP54 (with gasket for the recess - code1000072882 and for the connector hole code 1000072881)
150
