60 IMGT30017EN
6A.3 KEYPAD
Three keypad types are available:
BASE KEYPAD SVGTBFK LED-type
ADVANCED KEYPAD SVGTAFK LCD-type, graphic, backlit
See chapter 2B for the characteristics.

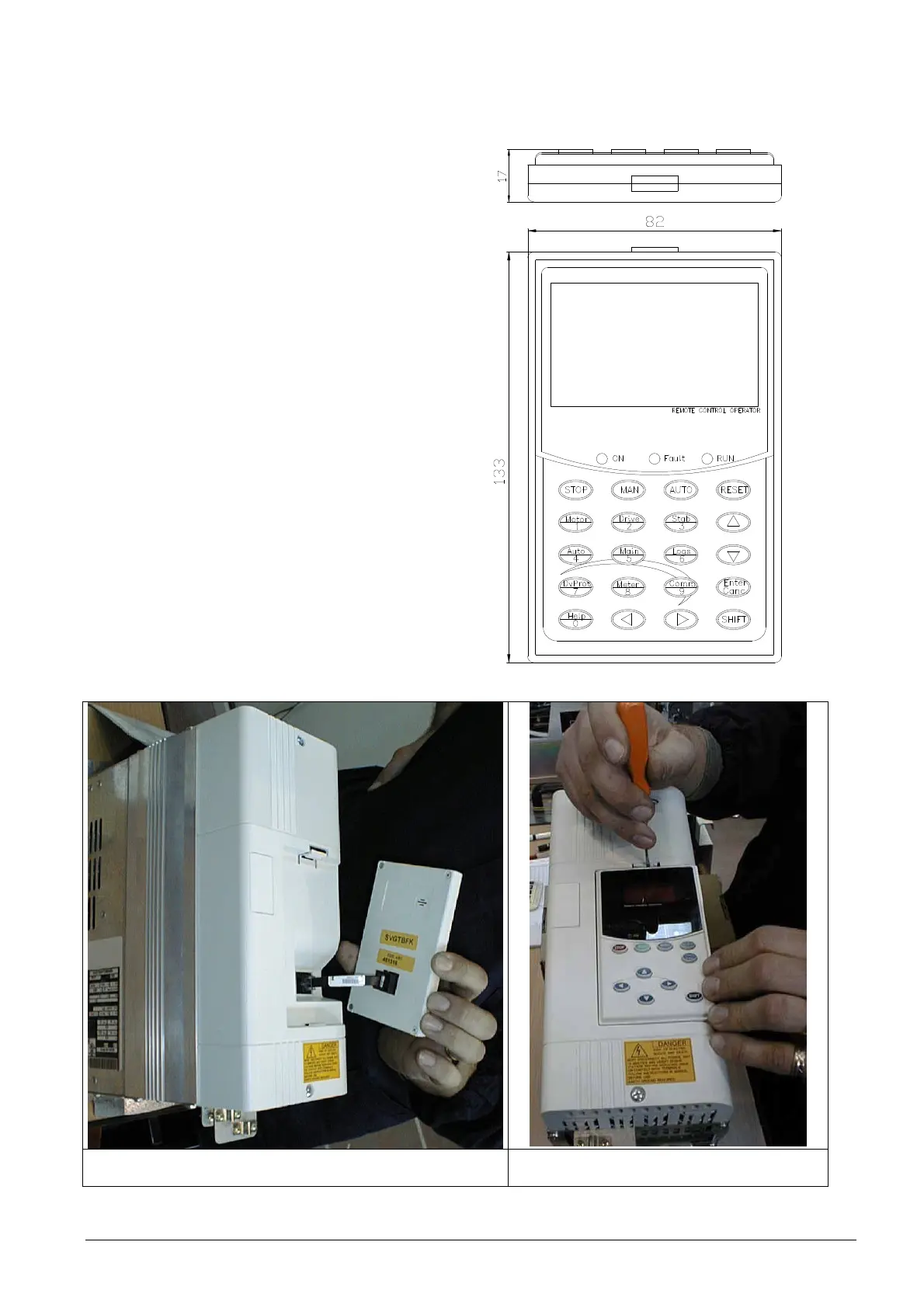

6A.3.1 INSTALLATION ON GT3000
Fig. 6A.3.1- Keypad is connected to the control board by means of a flat
cable with telephone-type jacks.
Fig. 6A.3.2- Keypad is held in position by a lock on the
front cover. Release keypad using a screwdriver.
