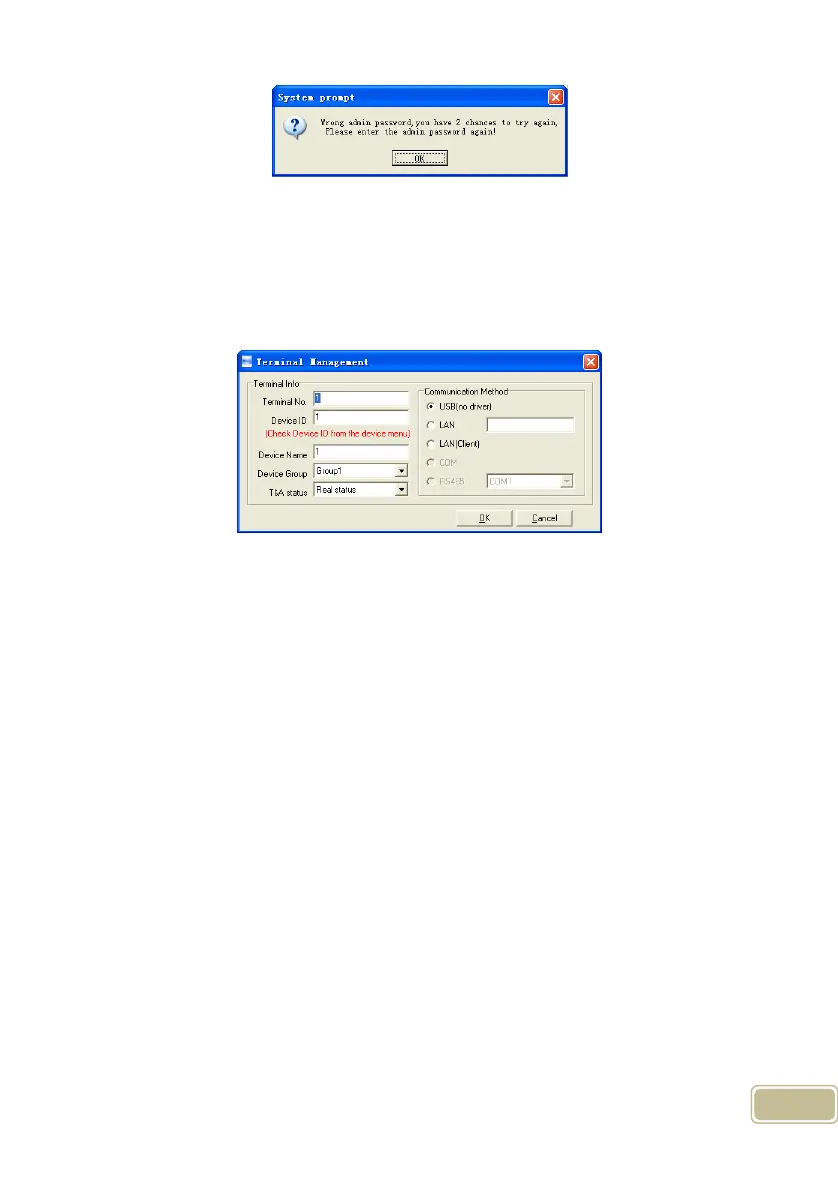

Click the button [OK]. And then try to enter the correct password
5.1 Communication management software
5.1.1 Add Unit
Click the button [Add Unit]. Following windows pops up:
Remark:
Terminal No.: This number can be set as you like.
Device ID: Device ID is used to identify every time attendance terminal :
Device Name: You can set it as you like.
Device Group: This group is used to manage the terminal machine.
T&A Status: There are three options: Actual Status, on duty and off duty. When
we set it as “Actual Status” the attendance records’ status in the software are as
same they are in the device. If you set it as “ON Duty”, all the records’ status which is
from this machine will be “On duty”.
USB: Connect the terminal via USB cable; (support plug &play)
Lan: Input the terminal’s IP address. The default IP address is 192.168.0.218.
Lan(Client):Input the server’s IP address. The server which you connect with.
Click the button [OK] to save the information. Can see a saffron yellow
