3.6.12 Monitor screen overview
The Monitor screen displays a graphical form of the sampling train with real-time values and data
(temperatures, flows, volumes and time).
1. AutoStop status
2. Timer data (see the Main screen overview
for descriptions of functions in this section)
- Timer
- Traverse Point Save
- Periodic Save
- Start button
- Reset button and checkbox
3. Impinger Out/Exit temperature
4. ΔH reading/setting
5. ΔP reading
6. Calculated Flow Rate
7. Dry Gas Meter Out temperature
8. Dry Gas Meter Volume
9. Barometric Pressure reading
10. Zero Transducers button
11. Sample Vacuum reading

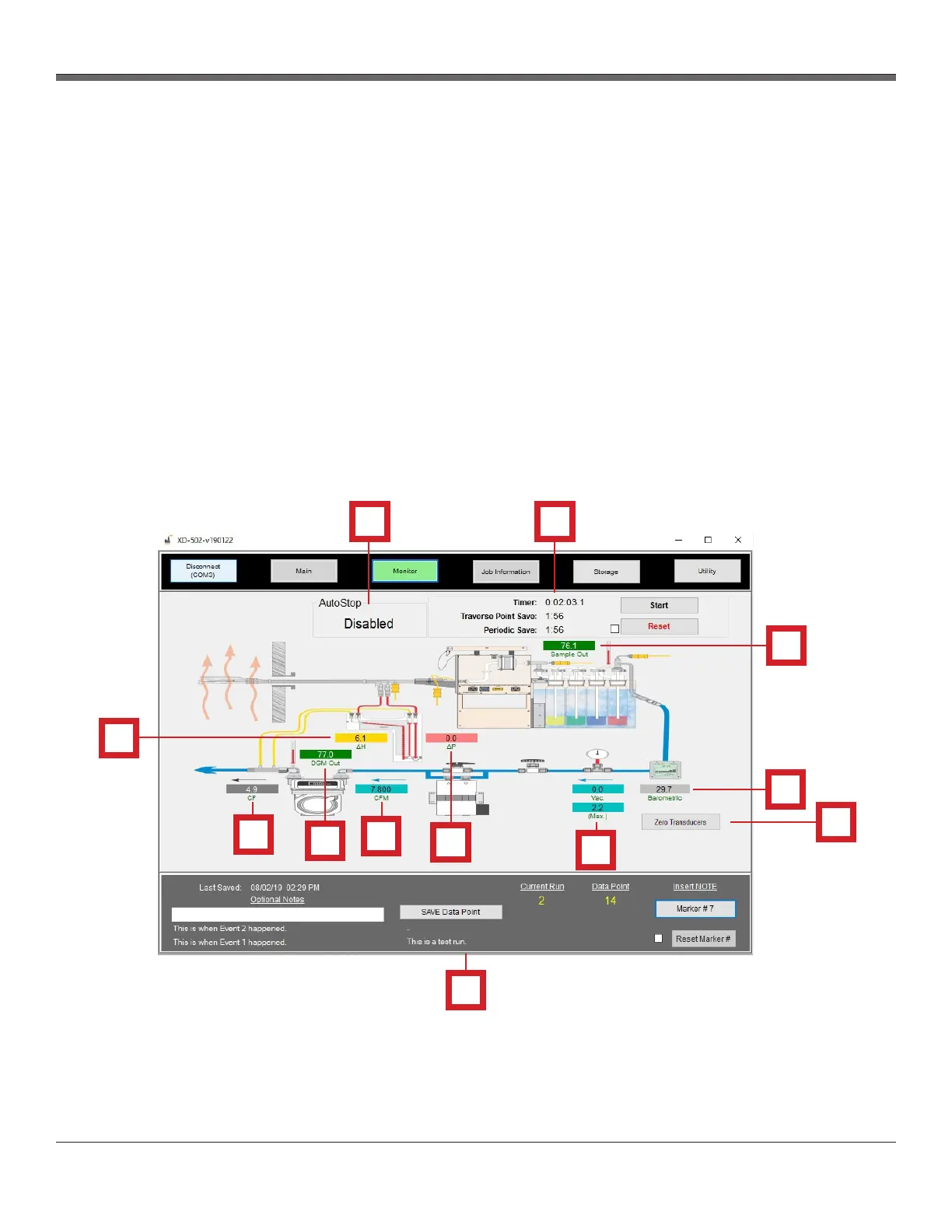

Fig. 19 Monitor Screen Overview
