Apex Instruments XD-502 - Parts List - Front Panel; Fig. 28 Parts List - Front Panel

Apex Instruments, Inc.
55
XD-502 Digital Console

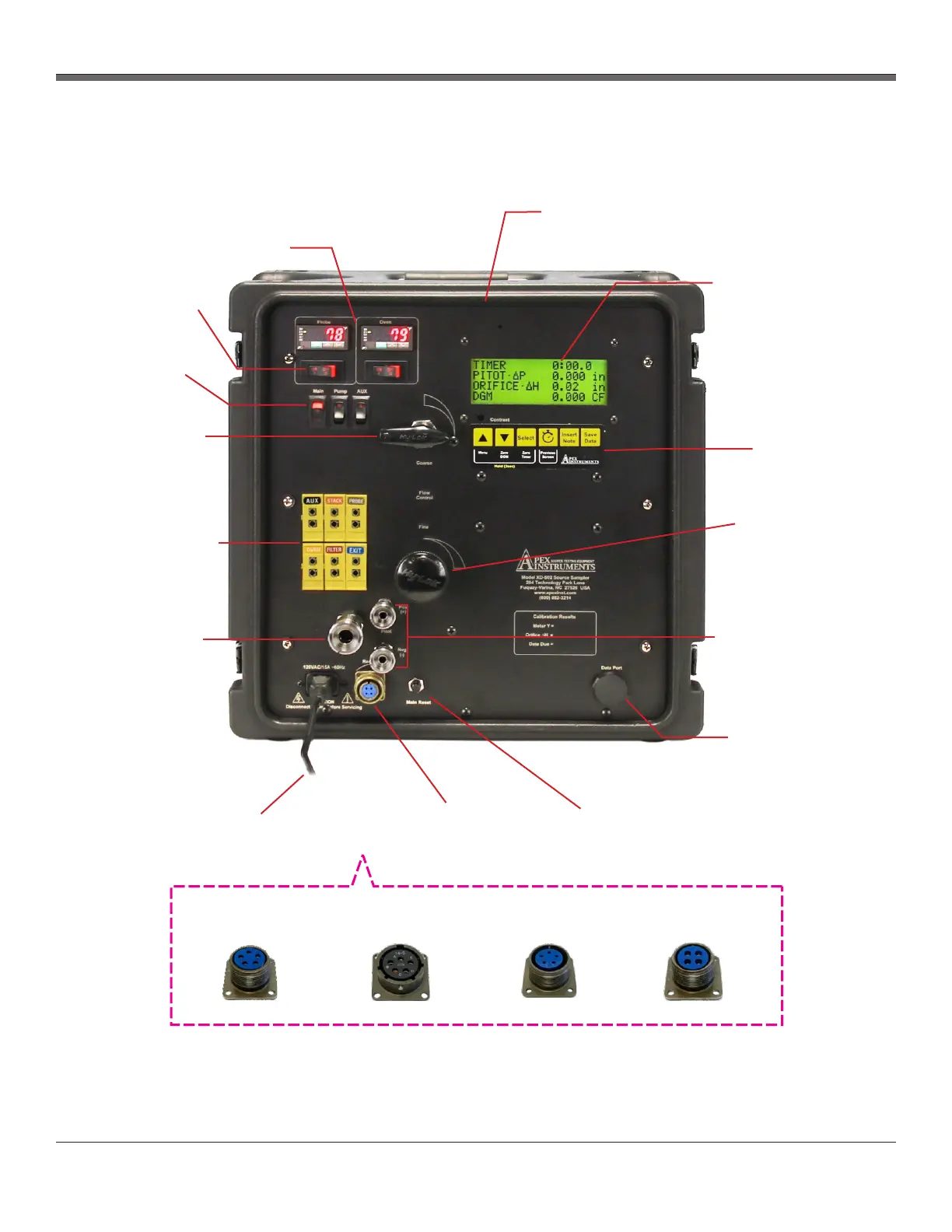

Fig. 11 Parts List - Front Panel: Standard version shown, depiction of options may differ
1. XC-CS51 (120V)
11. TC-PJK (x6)
2. M-LCD-NHD0420-A
3. MS-6X1
6. EL-HART-USB
15. M-PXR3-F (x2)
14. M-CBR10A-M
13. M-RA911 (x3)
12. B1VH-4S
4. NV3HA-6S
10. QC-BHF8-SS
9. EC-C13-515-14-6
5. QC-BHF4-SS (x2)
7. M-CBP15A-M
Circuit breaker (120V console)
8. AM-MCP
Power cord (if applicable)
Sample inlet
Pitot connections
Thermocouple jacks
Coarse flow valve
Power switches
Temperature controllers
Case with lid
LCD display assembly
6 button membrane switch
Fine flow control valve
USB data port connection
Power output connector
6.3 Parts List - Front Panel (XD-502, 120V Shown)
97-3102A-14S-5S
5-Pin 14mm
PT02A-14-5S 97-3102A-16S-8S
97-3102A-14S-2S
Alternative
5-Pin Bayonet
Alternative
5-Pin 16mm
Alternative
4-Pin 14mm
Alternative
A B
C
D
A = Aux 120V/220V (Black)
B = Common (White)
C = Oven 120V/220V (Red)
D = Probe 120V/220V (Brown)
A
B
D
C
AM-MCP
Power switches
