Apex Instruments, Inc.

XD-502 Digital Console

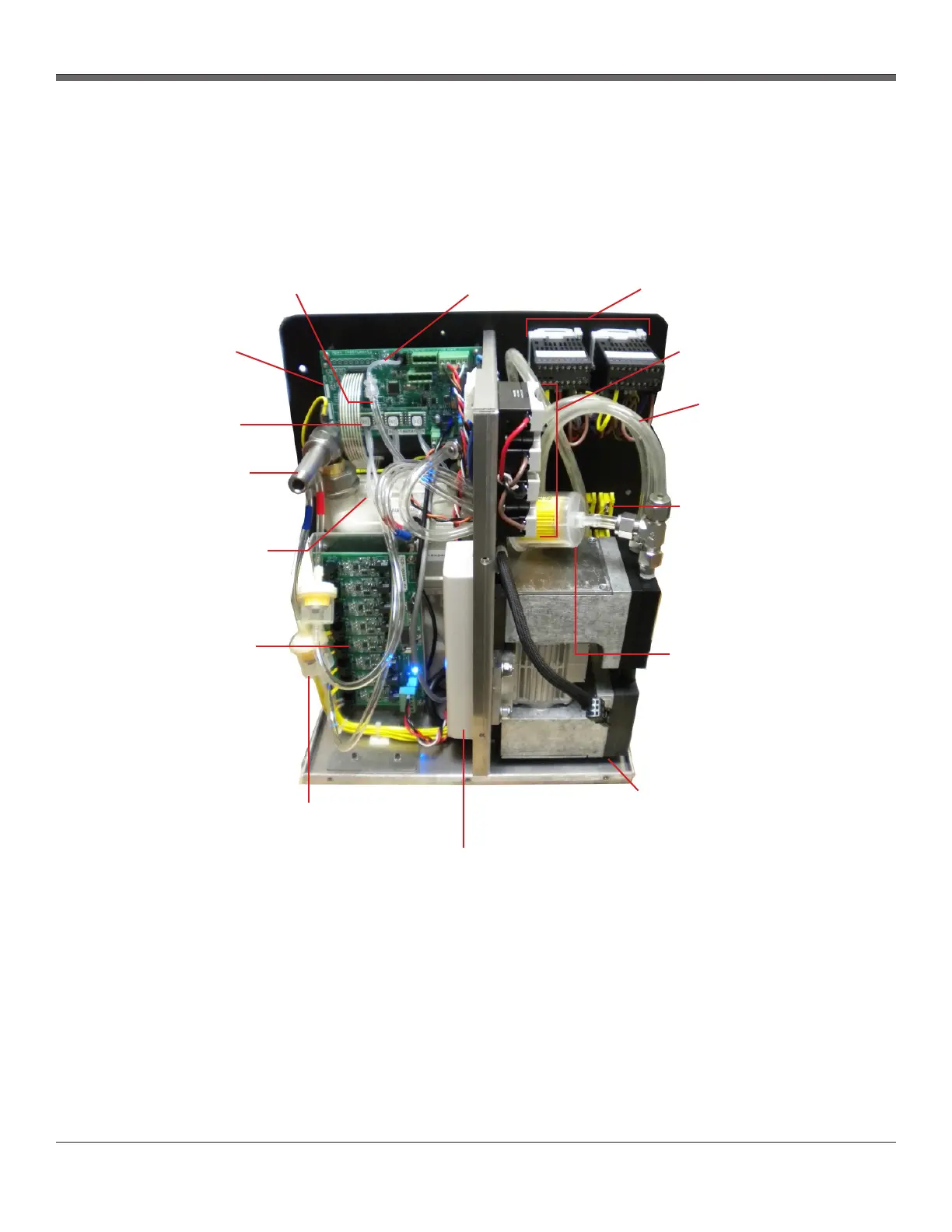

6.4 Parts List - Interior (XC-53B-MV 240V Shown)

Fig. 12 Parts List - Interior: Standard version shown, depiction of options may diﬀer

12. PCB-SENS-B1B5B10

Transducer board

11. M-OT10

Venturi-style oriﬁce

10. QC-M2-LUER (x5)

QC-F3/32-LUER (x5)

Pressure tubing connectors

9. PCB-TC8-COMP

8 channel TC board

8. DIF-1PZ (x2)

In-line ﬁlters (x2)

7. M-PS-XLG-150-24-A

Power supply

6. GPU-PU3899-UN838AN

Sample diaphragm pump

4. TC-PJK (x6, obscured)

Thermocouple jacks

3. TU-6/4

Large sample tubing

2. SSR-AD25-RS (x2)

Relays

5. DIF-33001

In-line ﬁlter

1. M-PXR3-F (x2)

Temperature controllers

13. PCB-502MAIN-ASY1

XD-502 main board

14.TSIL-4/2

15. TSIL-2/1

Medium pressure tubing

(includes transducers)

Small pressure tubing
