Arista DCS-7804 - Chapter 2: Preparation; Site Selection and Clearance Requirements

Chapter 2
Preparation
The following topics are covered in this section:
• Site Selection
• Tools and Parts Required for Installation
• Unpacking and Moving the Switch
• Electrostatic Discharge (ESD) Precautions
2.1 Site Selection
The following criteria should be considered when selecting a site to install the switch:
• Floor Space: Install the switch in an area that provides adequate clearance for removing front and
rear components.
The Figure 1: Clearance Requirements and Footprint for Switches displays the dimensions and
footprint of the switch clearance requirements for the switches.

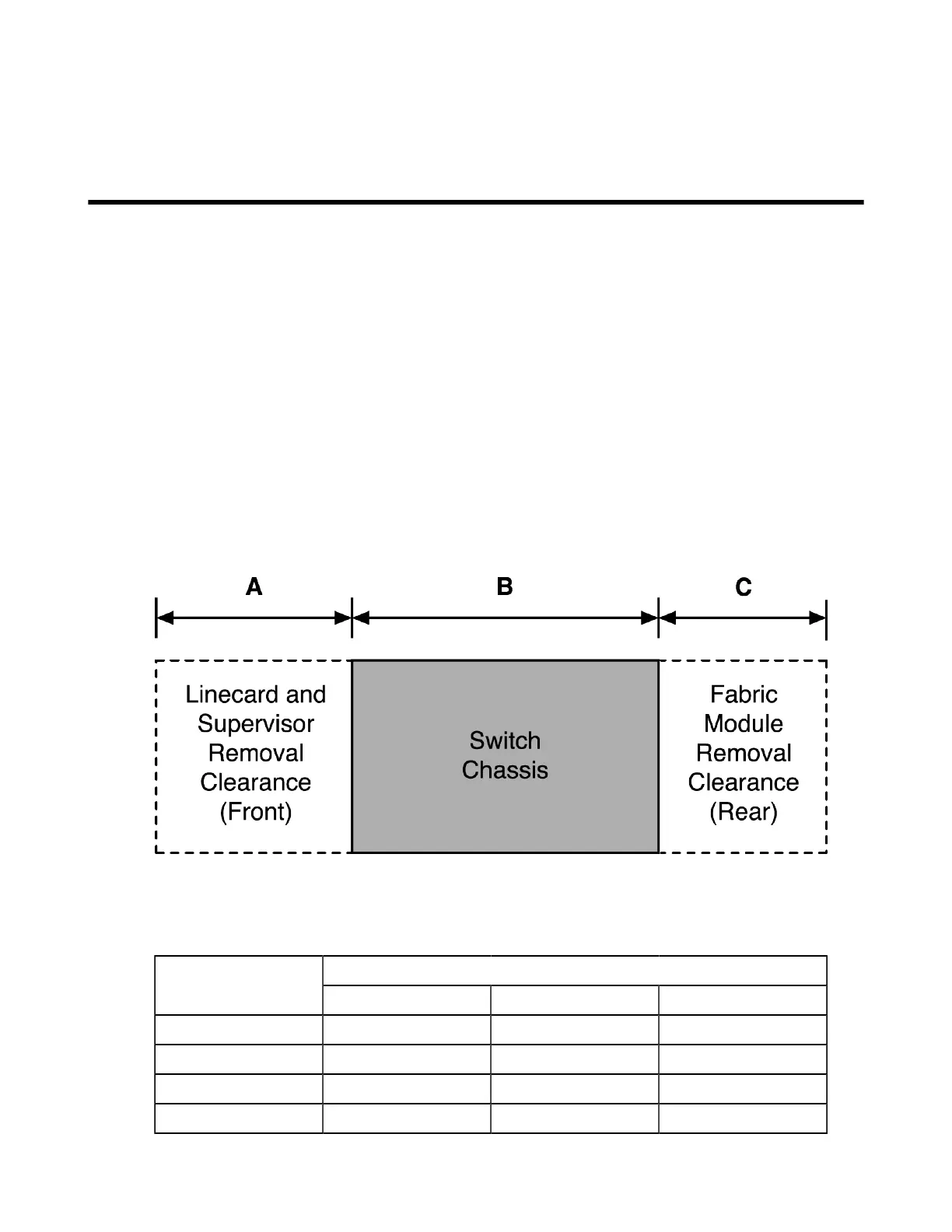

Figure 1: Clearance Requirements and Footprint for Switches
The Table 3: Clearance Requirements and Footprint Dimensions shows the dimensions for each of the
modular switches.
Table 3: Clearance Requirements and Footprint Dimensions
Clearance Requirements DimensionsSwitch
A B C
DCS-7804 38.4 cm (15.1 in.) 102.1 cm (40.2 in.) 58.9 cm (23.2 in.)
DCS-7808 38.4 cm (15.1 in.) 102.1 cm (40.2 in.) 58.9 cm (23.2 in.)
DCS-7812 38.4 cm (15.1 in.) 102.1 cm (40.2 in.) 58.9 cm (23.2 in.)
DCS-7816 38.4 cm (15.1 in.) 102.1 cm (40.2 in.) 58.9 cm (23.2 in.)
7
