Arista DCS-7804 - Unpacking and Moving the Switch (Example)

Note: The DCS-7812 accessory kit includes bolts and lifting brackets that must be similarly
attached. The illustrations highlight the DCS-7816.

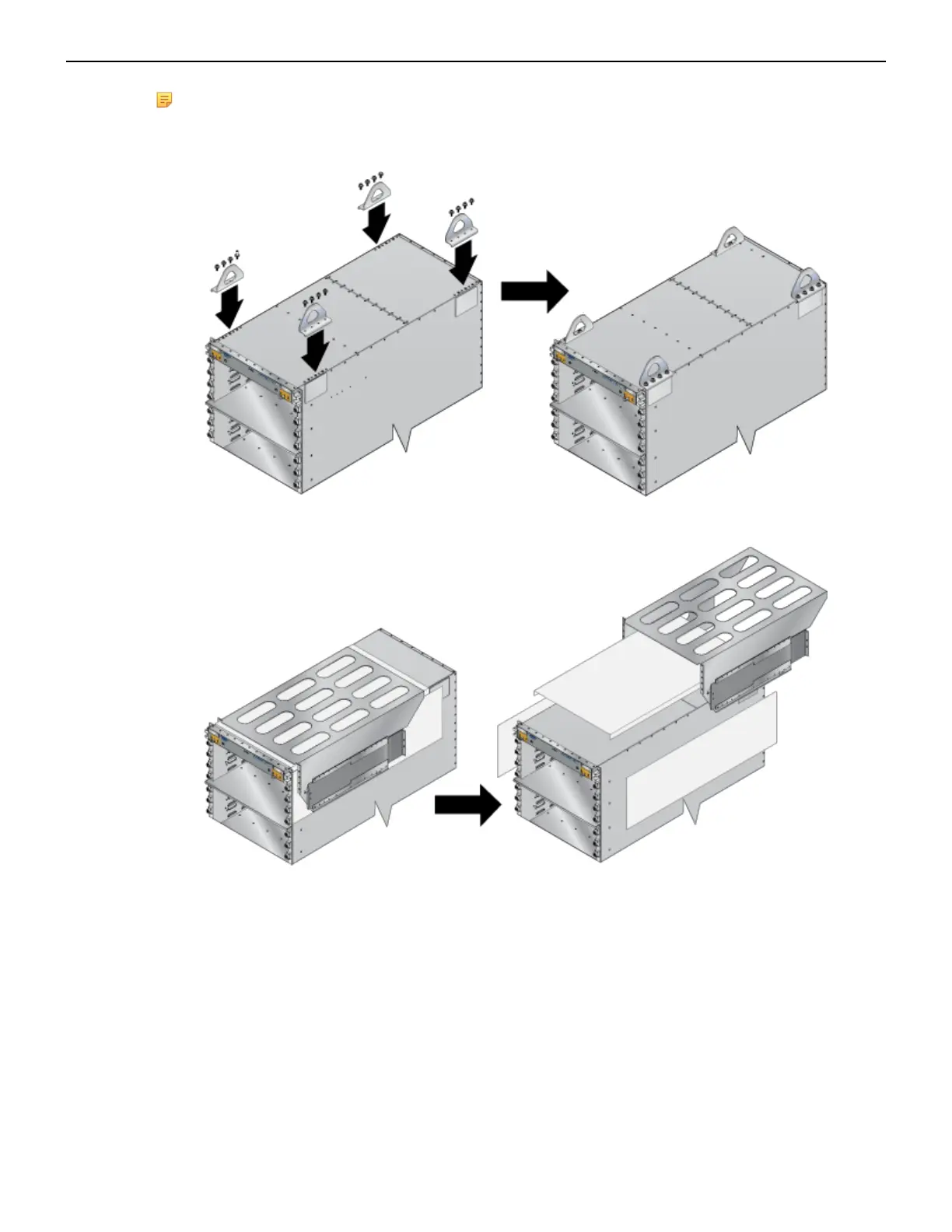

Figure 2: Lifting Brackets
Figure 3: Cradle and Switch
2.3.1 Unpacking and Moving the Switch (Example)
The example illustrates the de-palletizing and transportation of a DCS-7816 chassis using the
following:
• 1000 lb lifting straps
• Server Lift SL-1000X® Super-Duty Lift
• 1000 lb capacity
• Battery operated and motorized
• Integrated rollers with lockout
The DCS-7816 chassis ships on an engineered pallet as shown below.
