Cabling the Modular Switch

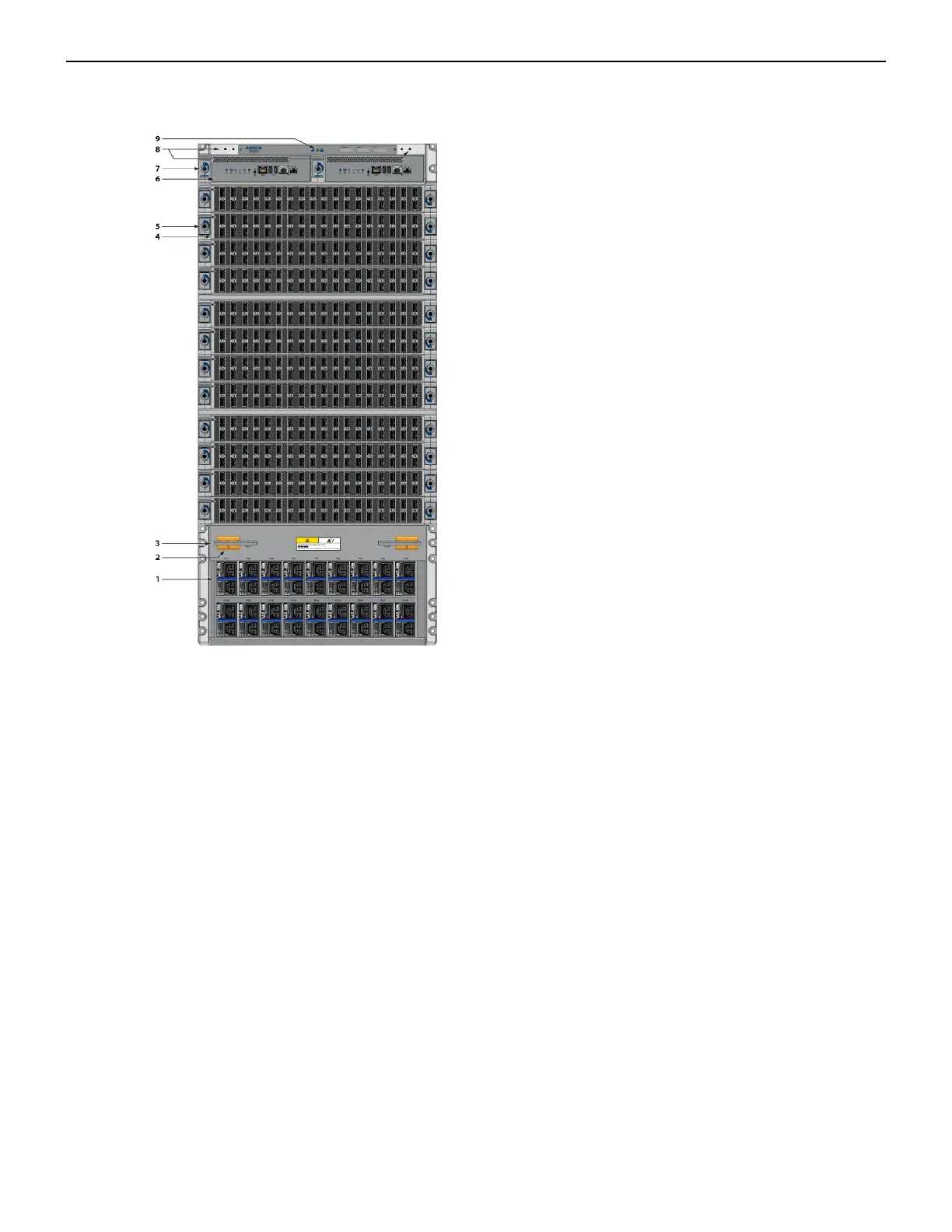

Figure 15: Front Panel (DCS-7812)
1 Power supplies 4 Linecards 7 Supervisor lock
2 Linecard and Supervisor
extraction tool tether
5 Linecard lock 8 Grounding locations
3 Extraction tool 6 Supervisor modules 9 ESD attach point
