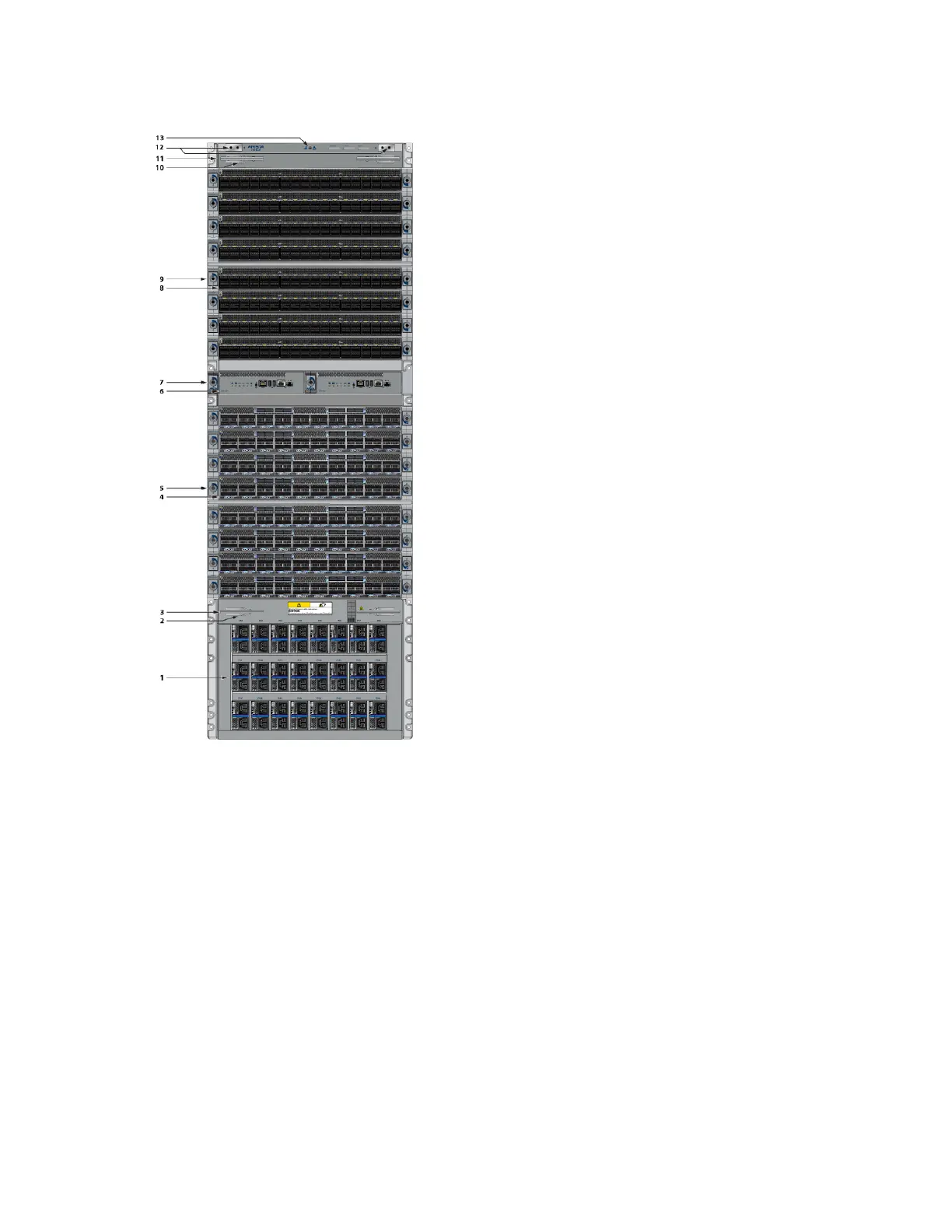

Figure 35: DCS-7816 Front Panel (Fully Populated)
1 Power supplies 6 Supervisor modules 11 Extraction tool
2 Line card and Supervisor
extraction tool tether
7 Supervisor lock 12 Grounding locations
3 Extraction tool 8 Line cards 13 ESD attach point
4 Line cards 9 Line card lock
5 Line card lock 10 Line card and Supervisor
extraction tool tether
54
