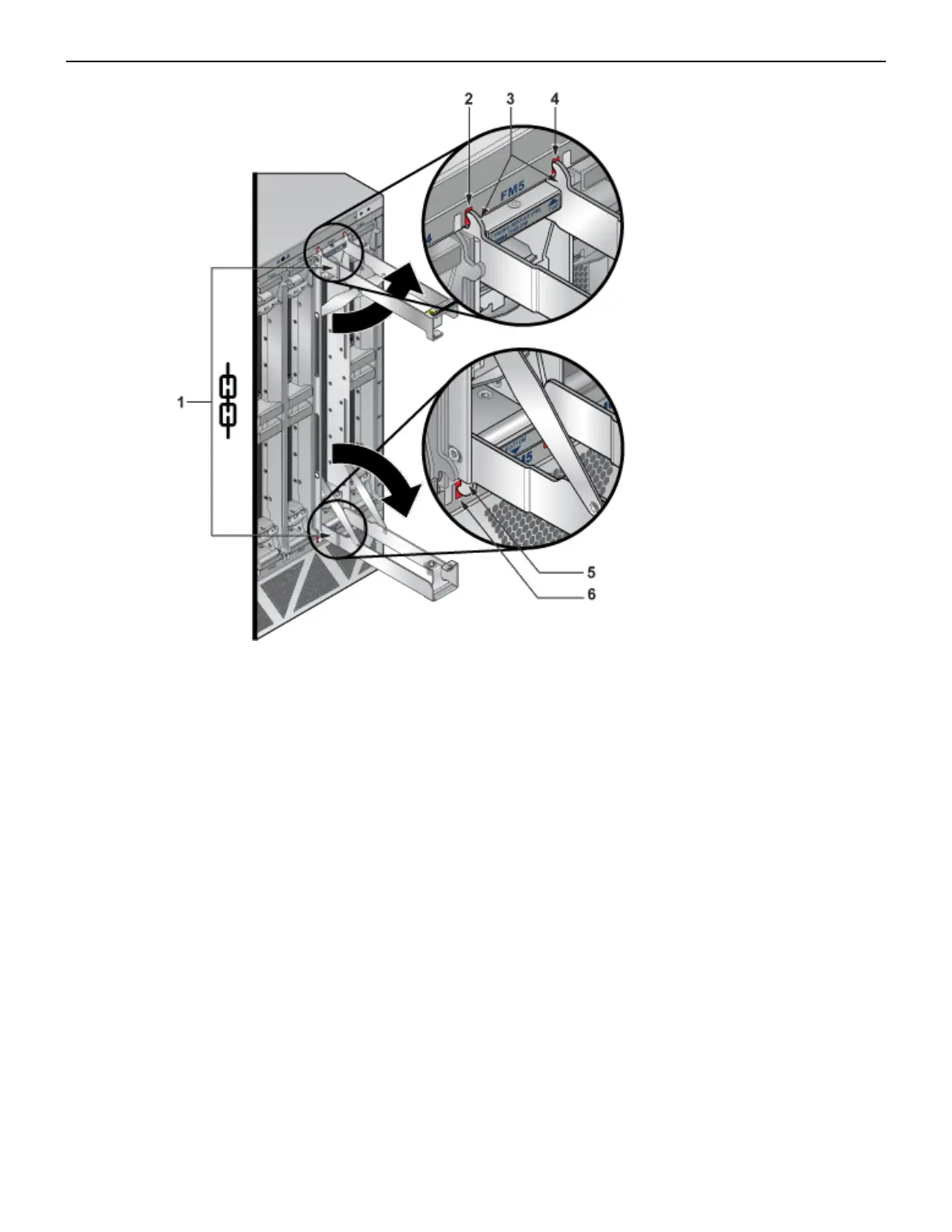

1 Fabric module ejector levers 3 Fabric module seating claws 5 Fabric module seating claw
2 Claw position on chassis 4 Claw position on chassis 6 Claw position on chassis
5. Close the ejector levers in unison.
