13
Assembly of Hydrosound
System with Hydrosound only
Mounting of the transducer to the bathtub:

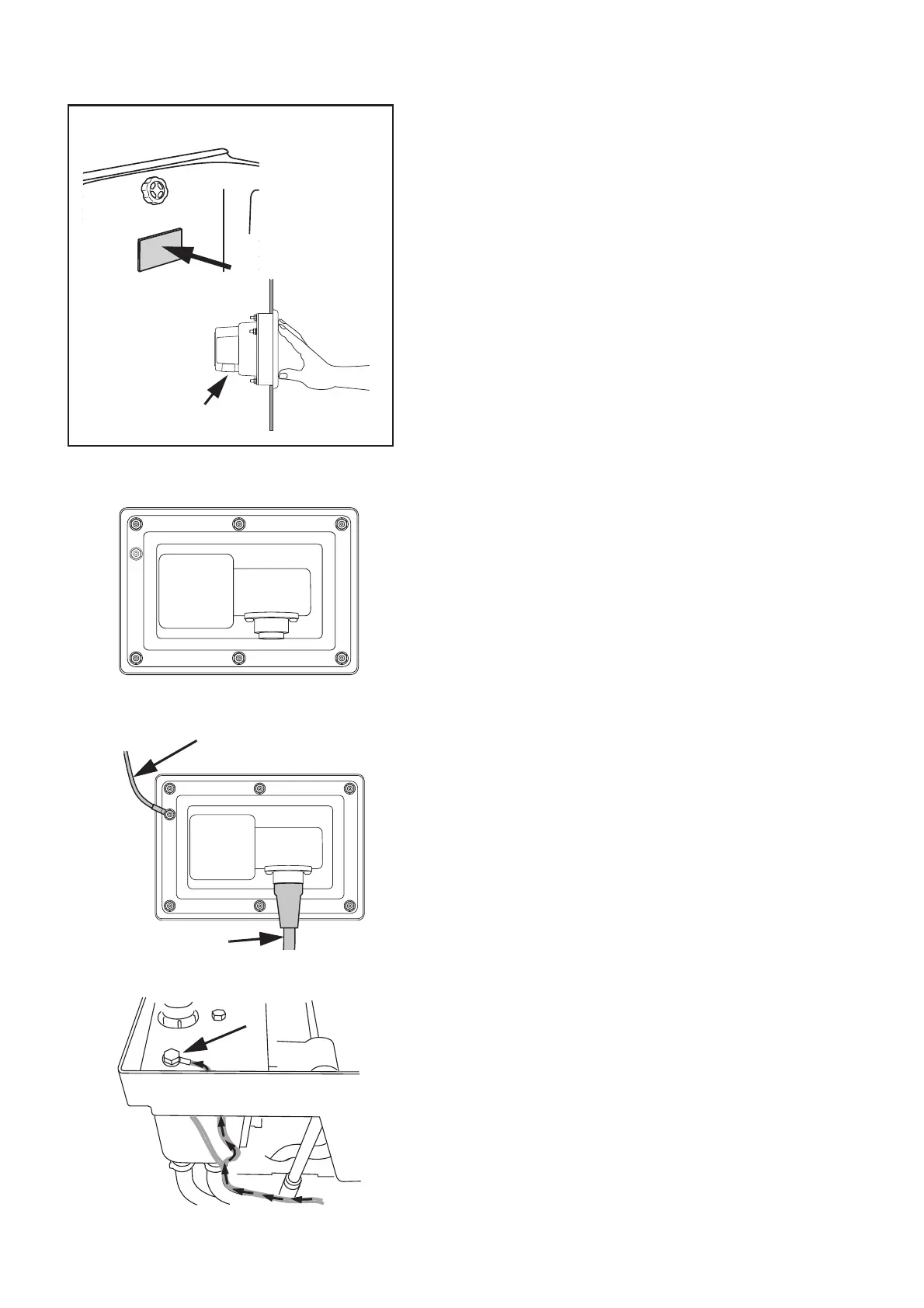

1 Slide transducer into tub opening with connector facing
down. (See fig. 1)
2 Manually press the transducer towards the tub surface,
and from behind, slightly tighten the six M4 nuts in
sequence. (See fig. 2)
Make sure the transducer is mounted level.
Finally, tighten the screws in sequence with a maximum
torque of 4 Nm.
Perform the following steps after mounting the bathtub.
(See chapter “Mounting of bathtub”)
3 After securing the tub to the panel, connect the hydro-
sound cable to the transducer. (See fig. 3)
4 Connect the transducer ground cable to the common
ground connection point on the mixer. (See fig. 4)
Hydrosound cable
Transducer ground cable
Fig. 2
Fig. 3
