Assembly of Hydromassage
System with Hydromassage only

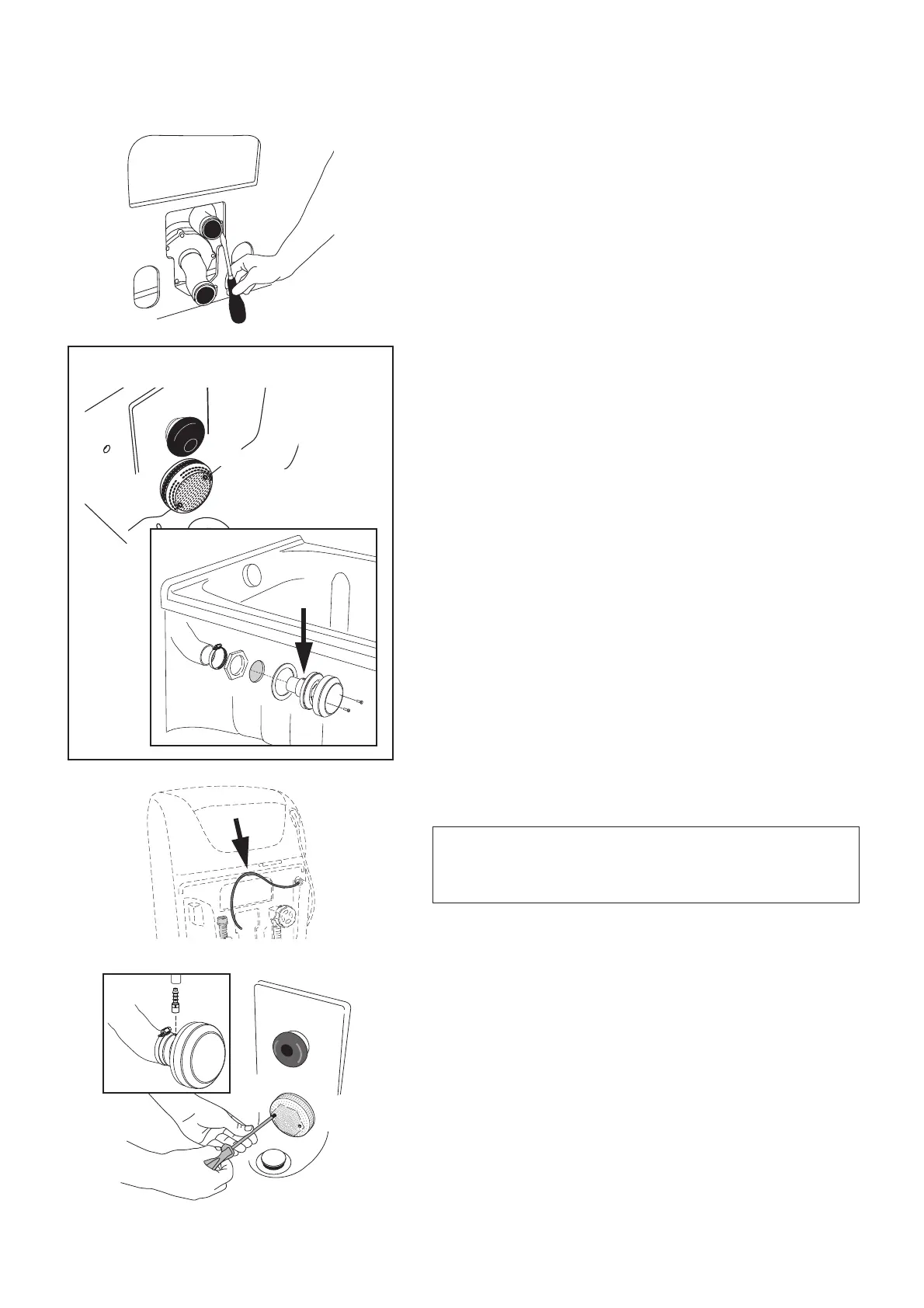

1 Loosen the hose clamps on the connections of the hydro-
pump. (See fig. 1)
2 Fit the hydromassage nozzles to the bathtub. The suction
nozzle must be secured with air nipple connection in top
position. (See fig. 2)
Perform the following steps after mounting the bathtub.
(See chapter “Mounting of bathtub”)
3 Make sure that the air hose for the air flow adjustment
is placed with its highest position above the overflow.
(See fig. 3)
4 Attach the nipple and hose to the hydromassage inlet
nozzle. Tighten the inlet nozzle with the screws.
(See fig. 4)
5 Tighten all hydromassage hose clamps.
NOTE
Failing to position the air hose correctly will
result in water leaking during use.
