Basic Battery Installation and Replacement
This model of the Telephony Gateway has the ability to provide battery backup in
the event of a local power loss. The battery backup is not intended to take the
place of AC power.
Use this procedure to install and to replace the backup battery.
1 Press down and pull back on the latch holding the battery door (on the bot-
tom of the Telephony Gateway). Pull the door toward you. Set the door
aside in a safe place.
CAUTION
Risk of equipment damage
Improperly inserting the battery may damage the battery connector
in the Telephony Gateway. Carefully follow the instructions in the
next step to avoid damage.

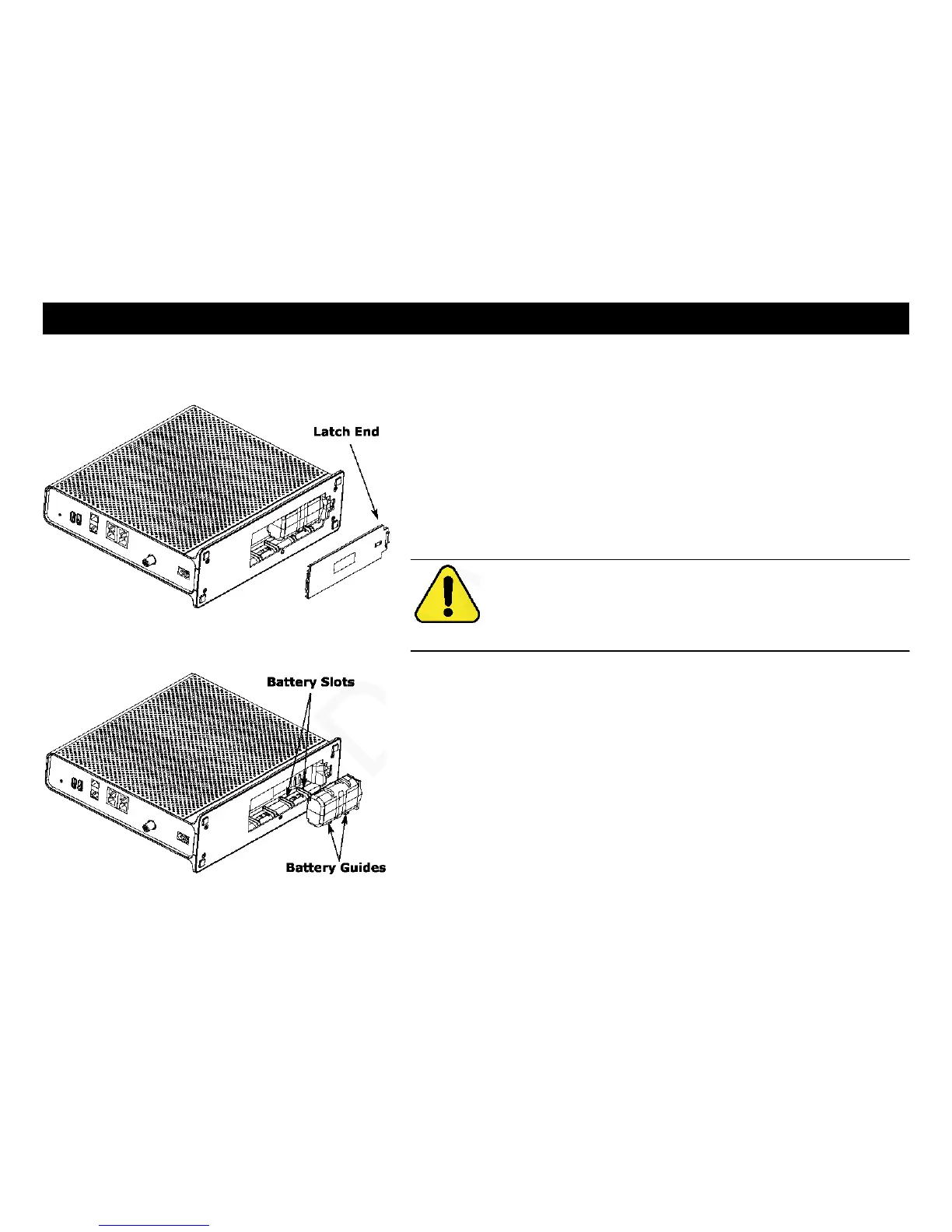

2 Hold the battery pack so that the guides on the battery align with the slots
on the Telephony Gateway and slide the battery into the bay. The diagram
on the left shows the proper orientation.
Note: Batteries will not insert completely into the Telephony Gateway if not
oriented correctly. The battery should slide into the bay without significant
force. Line up the guides on the battery with the slots in the battery bay.
