Rear Panel

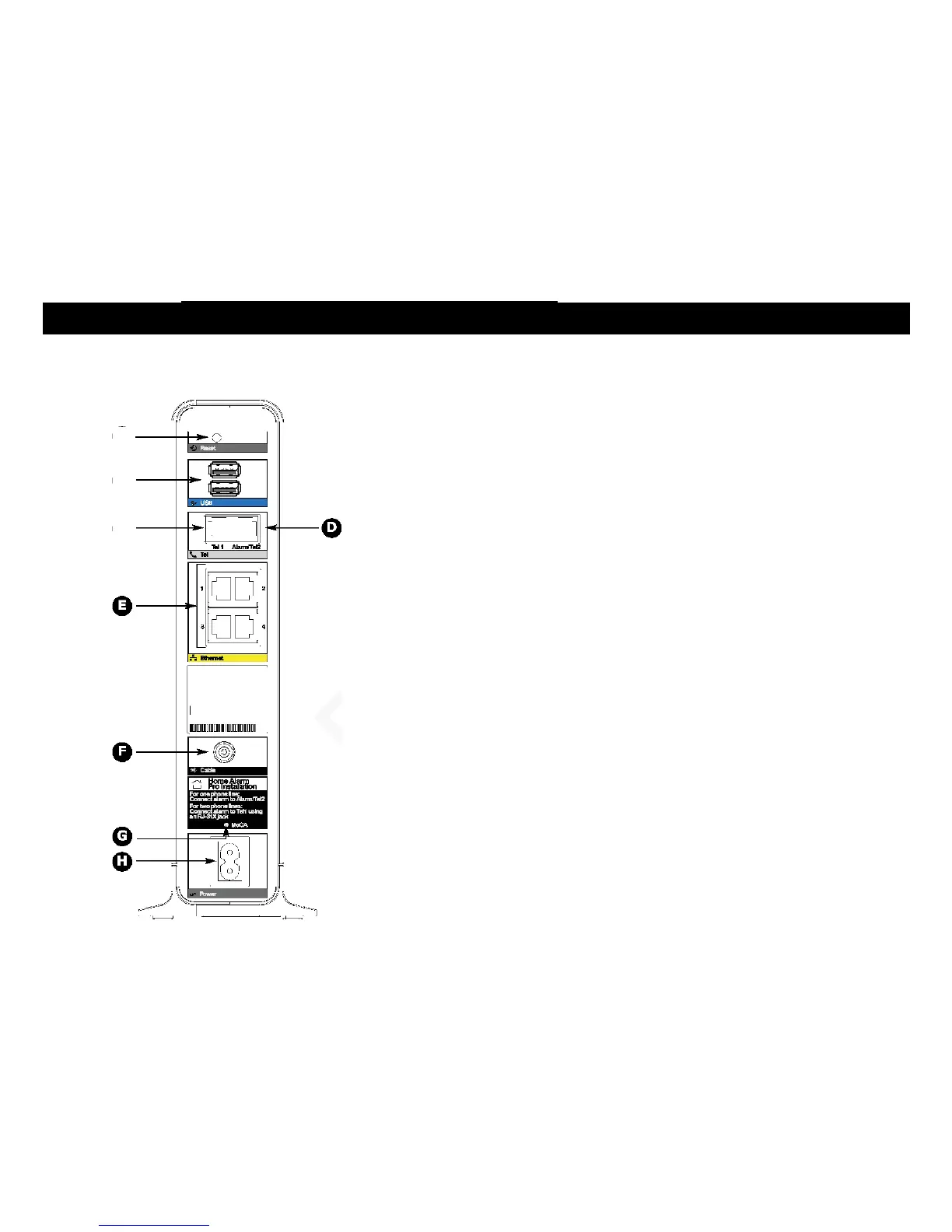

The rear of the Telephony Gateway has the following connectors and controls:
A Reset button: resets the Telephony Gateway as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
B USB: USB host connectors - future support for external USB devices
C Tel 1: connector for the first phone line.
D Alarm/Tel 2: connector for the second phone line and a home alarm con-
nection.
E Ethernet (1 - 4): connectors for use with a computer LAN port.
F Cable: connector for the coaxial cable.
G MoCA: indicates connectivity between the Telephony Gateway and other
home devices connected via the MoCA network.
H Power: connector for the power cord.
