Artesian Spas PLATINUM ELITE - 50 Hz Platinum Elite Spas Single;Three Phase

15

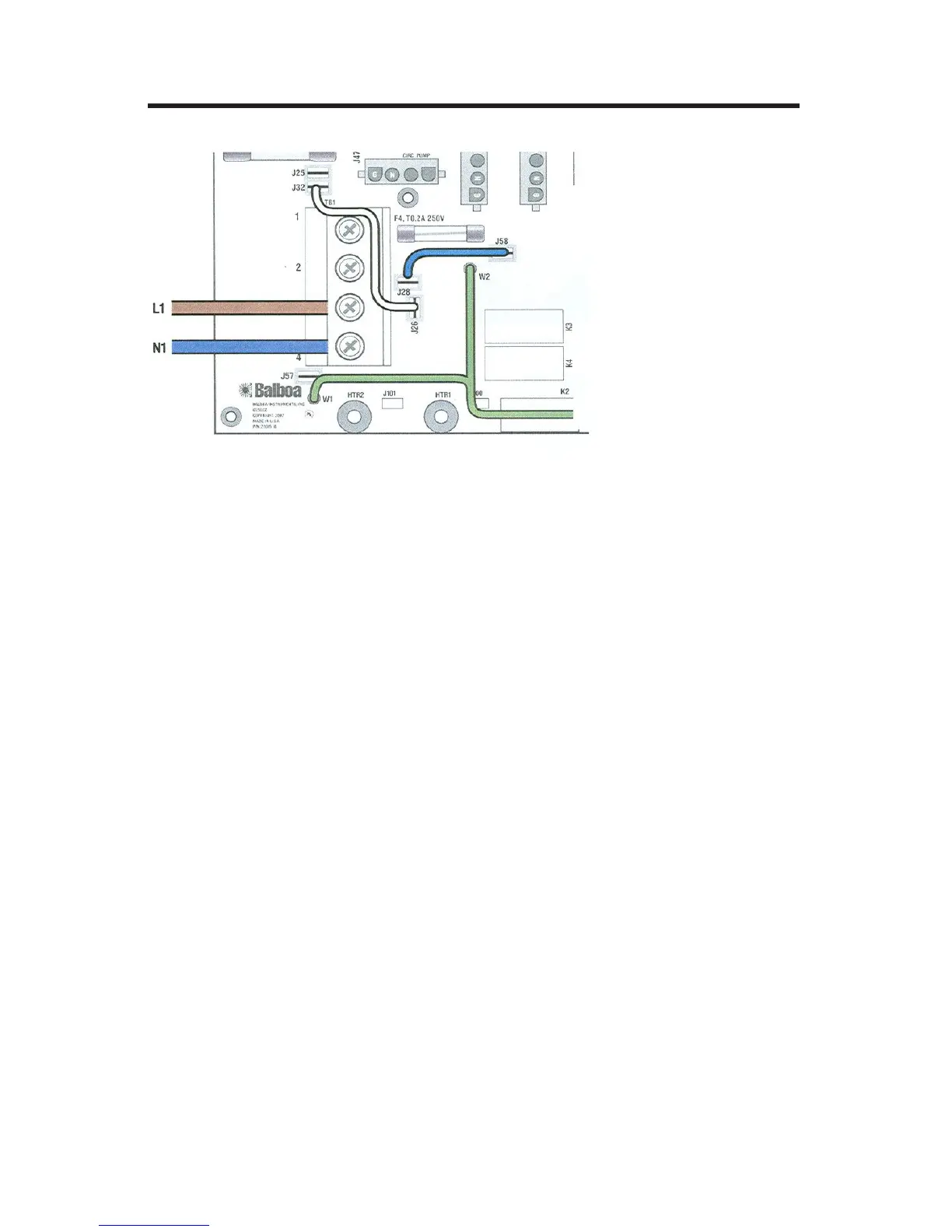

50 Hz PLATINUM SPAS SINGLE/THREE PHASE
3 Wires (1 Line + 1 Neutral + 1 Protective Earth)
Protective Earth wire (Green / Yellow) must be connected to system
ground terminal as marked.
This option is congured and shipped as the default.
All equipment (pumps, blower and heater) runs on service line L1
Single Service,
TN and TT
Electrical Systems
(1 X 16 Amp or 1 X 32 Amp)
