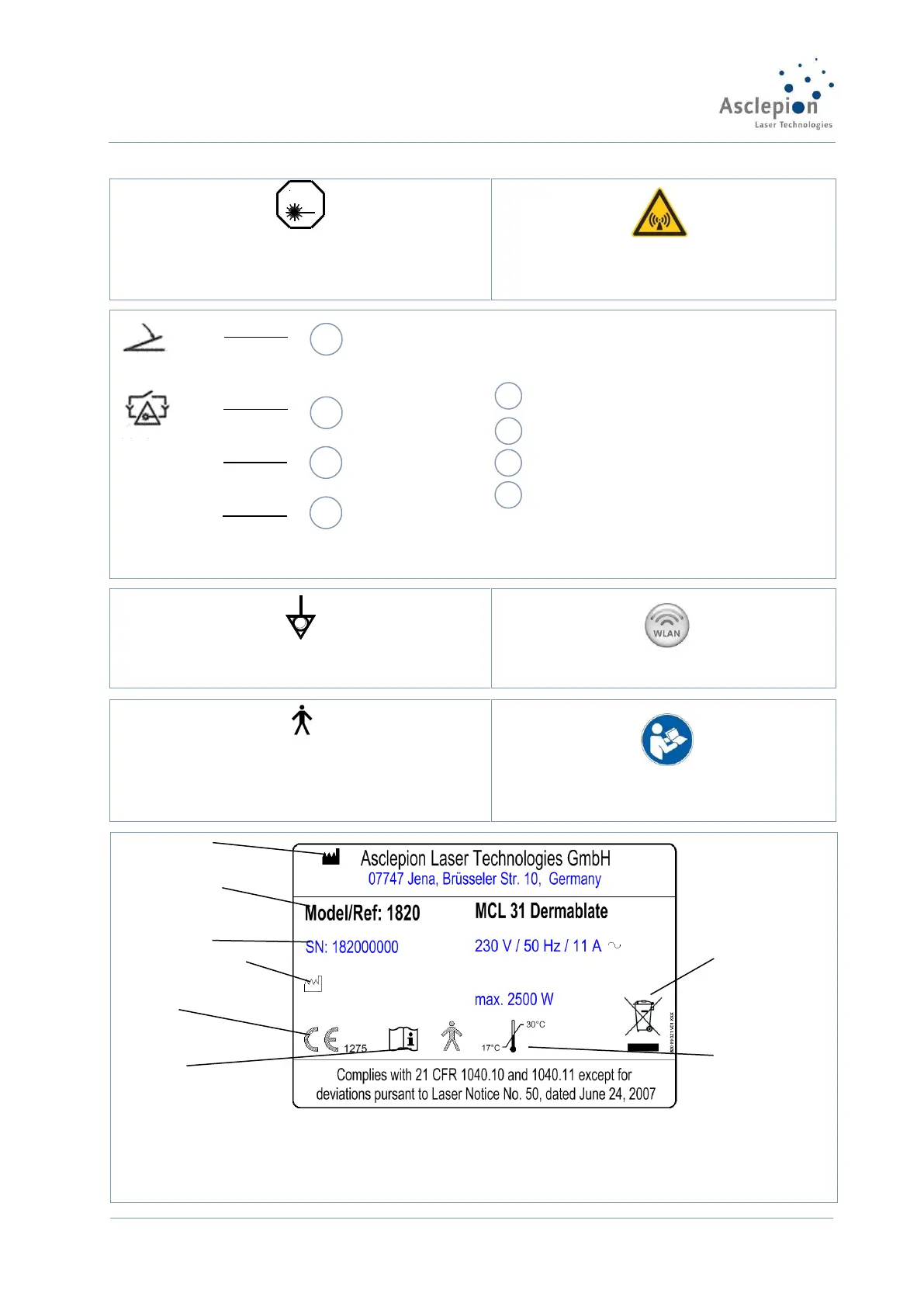

Figure 8: Laser emergency STOP switch This label indicates the
Laser emergency STOP switch for switching off the laser radiation.
Figure 12: Label warning against electrical field In the
environment generating possible radio-frequency
interference.
Master
Actiy Sync
Figure 14: Interface connections
Warning: It is essential that only accessories
approved by Asclepion Laser Technologies are
connected here. Master and Activ Sync are
exclusively for authorized personnel.
1 Connector for foot switch
2 Remote interlock contact connector
3 Master interface
4 Activ Sync interface
Equipotential connection This contact is used to connect the device
additionally to an equipotential system.
Figure 13: WLAN antenna label. This is used to connect
the antenna to the device.
Figure 19: Add-on part advice
Add-on part B for laser handpiece
Figure 15: Safety label:
Follow instructions for use
Figure 16: Type plate
Maker's plate indicating type-specific data of the device, such as serial number and date of
manufacture.
Manufacturer
Model number
Serial number
Manufactured
CE sign
Caution:
Observe accompanying
documents
Disposal:
Refer to Chapter 12
Operating tempera-
ture: Refer to Chap-
ter 3.2
