Studio

If the DAW you are using supports Dante, the Enchorus-series devices are an ecient and

exible solution for studio wiring. Since the system is modular, its topology and scale can

be quickly adapted to the session.

Consider positioning an Enchorus ENC1201 (8x MIC IN, 4x LINE OUT) close to the instru-

ments or voices you wish to record to keep cable runs to a minimum. Adding an Ethernet

switch will make patch bays obsolete.

An ENC 1102 allows you to take advantage of your outboard gear’s digital AES/EBU inputs

and outputs. Guitar processors, synthesizers, etc., with digital outputs can also be con-

nected to the ENC 1102 (i.e. in the digital domain).

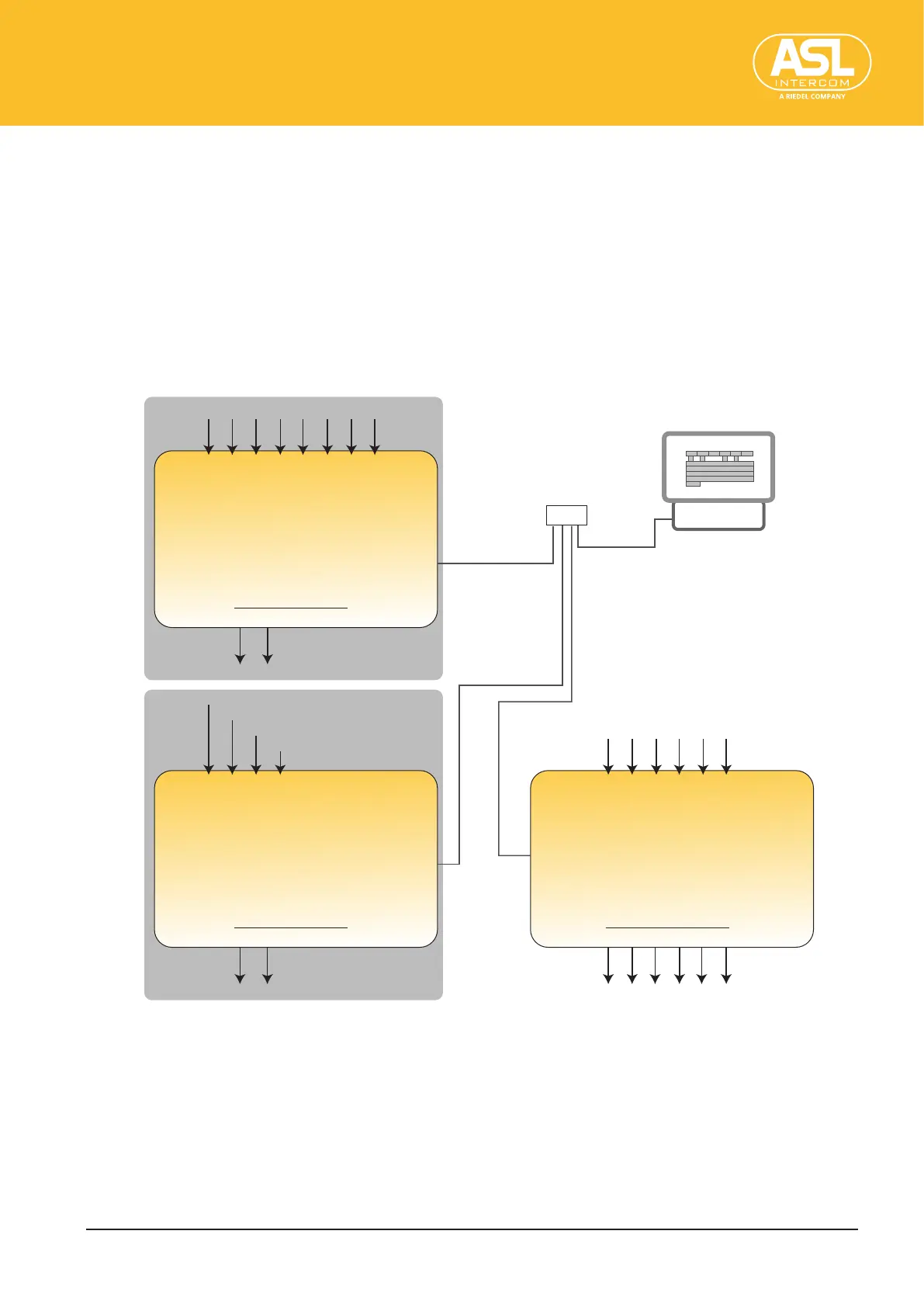

MIC IN 1~8

1 2 3 4 5 6 7 8

ENC 1201

1 2 3 4

MIC IN 1~8

1 2 3 4 5 6 7 8

ENC 1201

1 2 3 4

AES IN 1~6

AES OUT 1~6

ENC 1102

1 2 3 4 5 6

Dante

Drums

Guitar & Bass

BD, SD top, SD bottom, HH, Tom1…

Digital Audio Workstation

Eects Returns

Eects Sends

GTR Mic1

GTR Mic2

Bass direct

Bass Mic

Switch

Monitor 1

Monitor 2
