Descriptions of Drawers
 Remove 4 screws located on the heating surface and remove the aluminum plate.
Temperature sensor, heating element and magnet switch for incubation box can be replaced.
 Simply remove the screws that hold the magnet switch for drawer and incubation box when
these switches need to be replaced.
 Use a hexagonal wrench to remove the hinge.

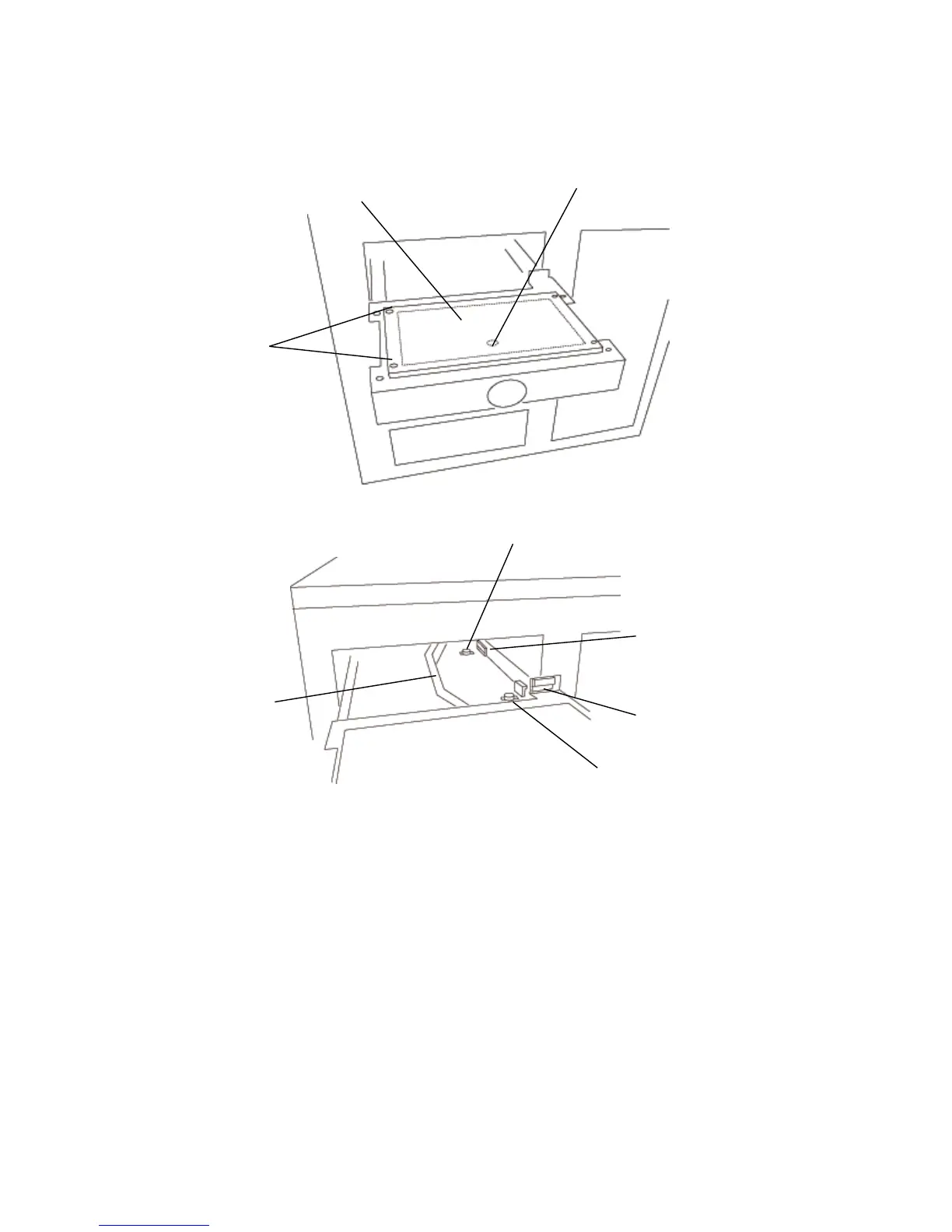

Heating Surface
Temperature Sensor
Screws
(Beneath the heating surface)
Cables
Toothed Wheel
Toothed Wheel
Magnet Switch
(Drawer)
Magnet Switch
(Incubation Box)
