1.6 Internal features
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
A protection film is pre-attached to the front cover before shipping. Please remove the
protection film before turning on the system for proper heat dissipation.

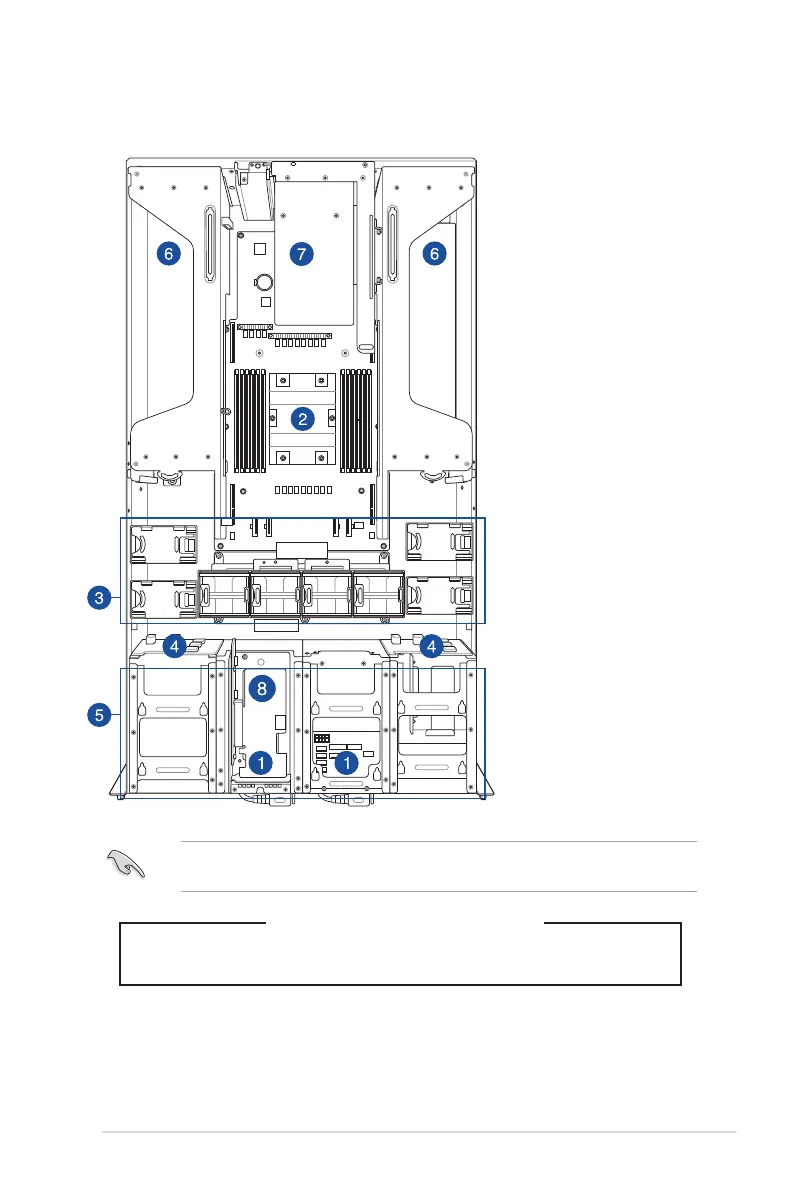

1. Redundant power
supply and power fan
(hidden)
2. ASUS K14PG-U12
server board
3. System fans
4. SATA/SAS/NVME
backplanes
5. SATA/SAS/NVME hot-
swap storage bays
6. PCIe expansion boards
(hidden)
7. PCIe x32 links with rear
riser card
8. Half-length / Low-profile
expansion slot
FAN2FAN3FAN4GPU
FAN4
GPU
FAN3
GPU
FAN2
GPU
FAN1
