ASUS ESC4000A-E12
2.6 Cable connections
• The bundled system cables are pre-connected before shipment. You do not need to
disconnect these cables unless you remove the pre-installed components to install
additional devices.
• Refer to the
Motherboard Information
chapter for detailed information on the
connectors.

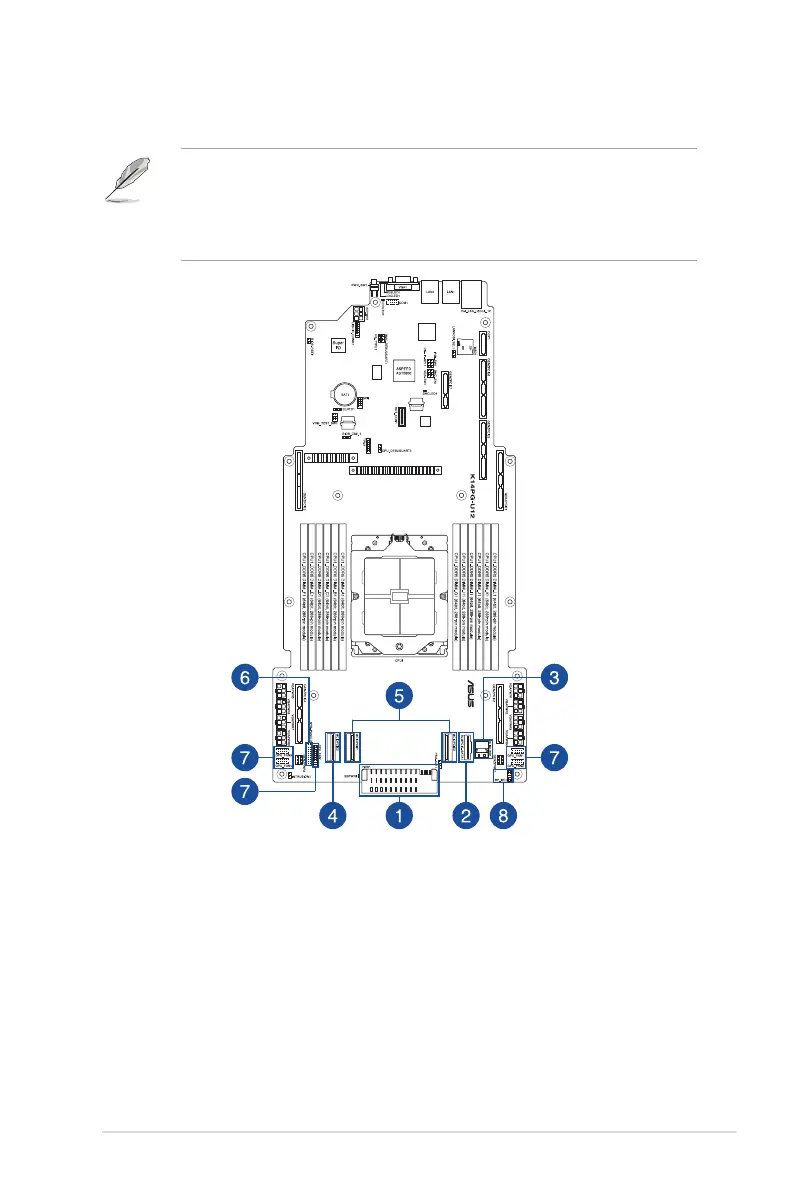

Pre-connected system cables
1. PWR1 power connector (from the power distribution board to the motherboard)
2. SLIMPCIE_SATA1 connector (from the motherboard to the backplane board)
3. SLIMUSB1 connector (from the motherboard to the front I/O board)
4. MCIOPCIE2 connector (from the motherboard to the internal riser board)
5. MCIOPCIE1, MCIOPCIE3 connectors (from motherboard to the backplane board)
6. SYS_PANEL2 connector (from the motherboard to the front I/O board)
7. Fan connectors (from the motherboard to the system fans)
8. BP_I2C1 connector (from the motherboard to the backplane board)
