Asus ESC4000A-E12 - Installing the Cache Vault Power Module

Chapter 2: Hardware Setup
2-32
2.5.4 Installing the Cache Vault Power Module

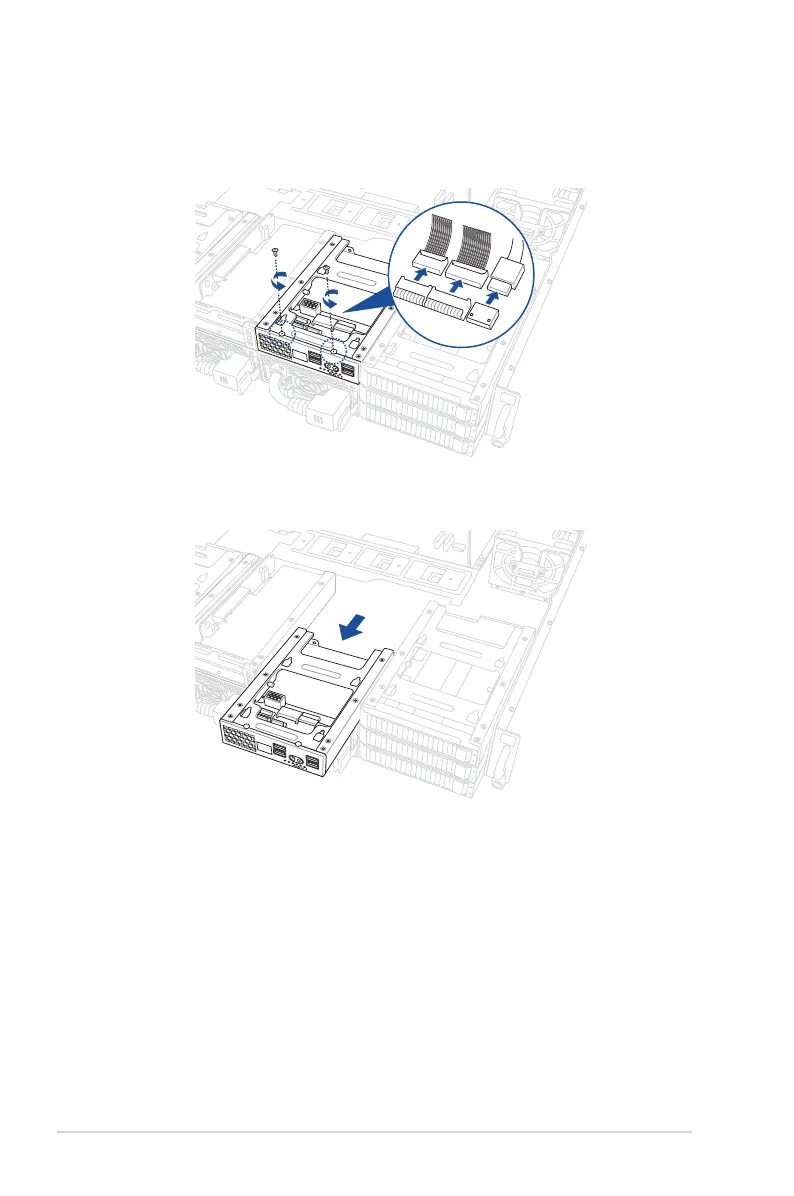

1. Disconnect the three (3) cables from the Front Panel Module, then remove the two (2)
screws.
2. From the back of the Front Panel Module, push the Front Panel Module out of the
system.
