2-31
ASUS ESC4000A-E12

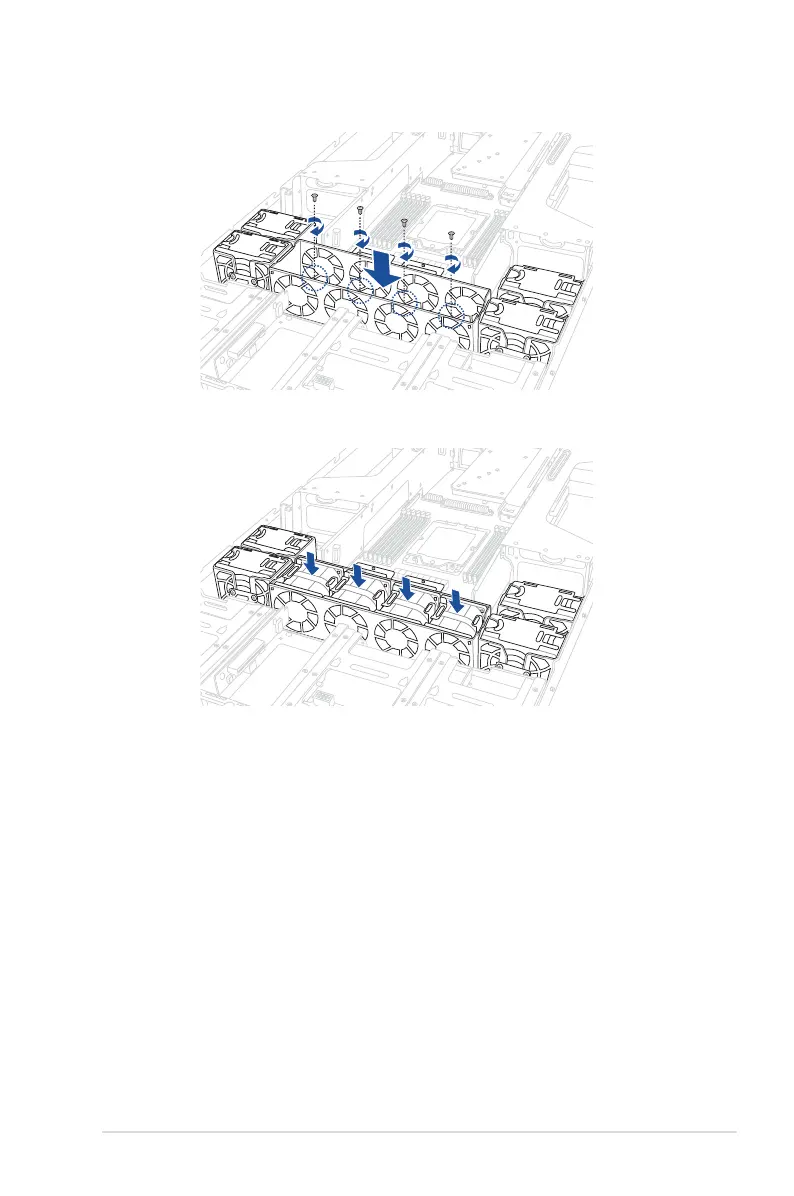

13. Align and install the fan cage, then secure it using the four (4) screws removed earlier.
14. Install the four (4) system fans into the fan cage.
