Chapter 2: Hardware Setup
2-30

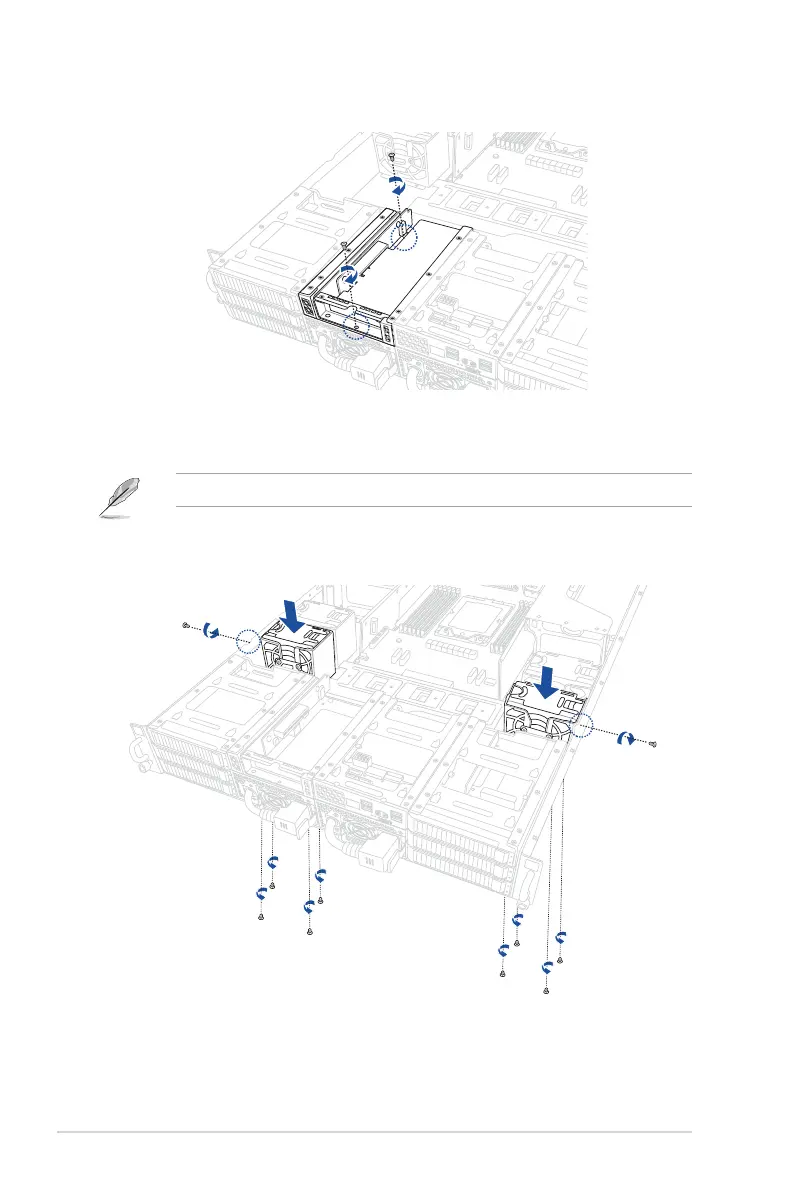

10. Secure the internal bracket using the two screws removed earlier.
11. (Optional) Refer to the
Installing the Cache Vault Power Module
section to install
and connect the Cache Vault Power Module.
The cache vault is required for the PIKE II 3108 card or the 9560 RAID card.
12. Align and install the two (2) fans and fan cages, then secure it using the ten (10)
screws removed previously.
