1.7 LED information

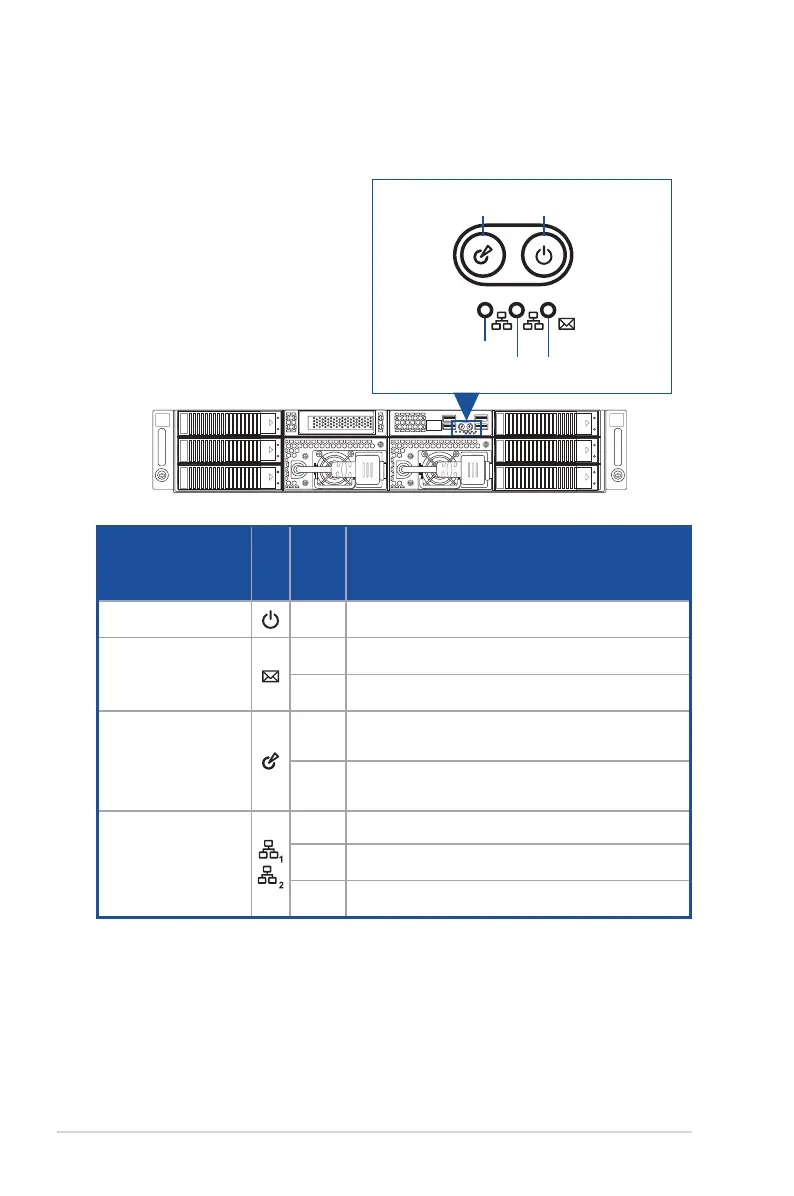

1.7.1 Front panel LEDs
Message LED
LAN2 LED
LAN1 LED
Power button with LEDLocation button with LED
1
2
1
2
LED Icon
Display
status
Description
Power button with LED
ON System power on
Message LED
OFF System is normal; no incoming event
ON A hardware monitor event is indicated
Location button with
LED
ON
Location switch is pressed (Press the location switch
again to turn off)
OFF Function off
LAN LEDs
ON LAN connection is present
Blinking LAN is transmitting or receiving data
OFF No LAN connection
