Asus ESC4000A-E12 - Internal Connectors

ASUS ESC4000A-E12
3-11

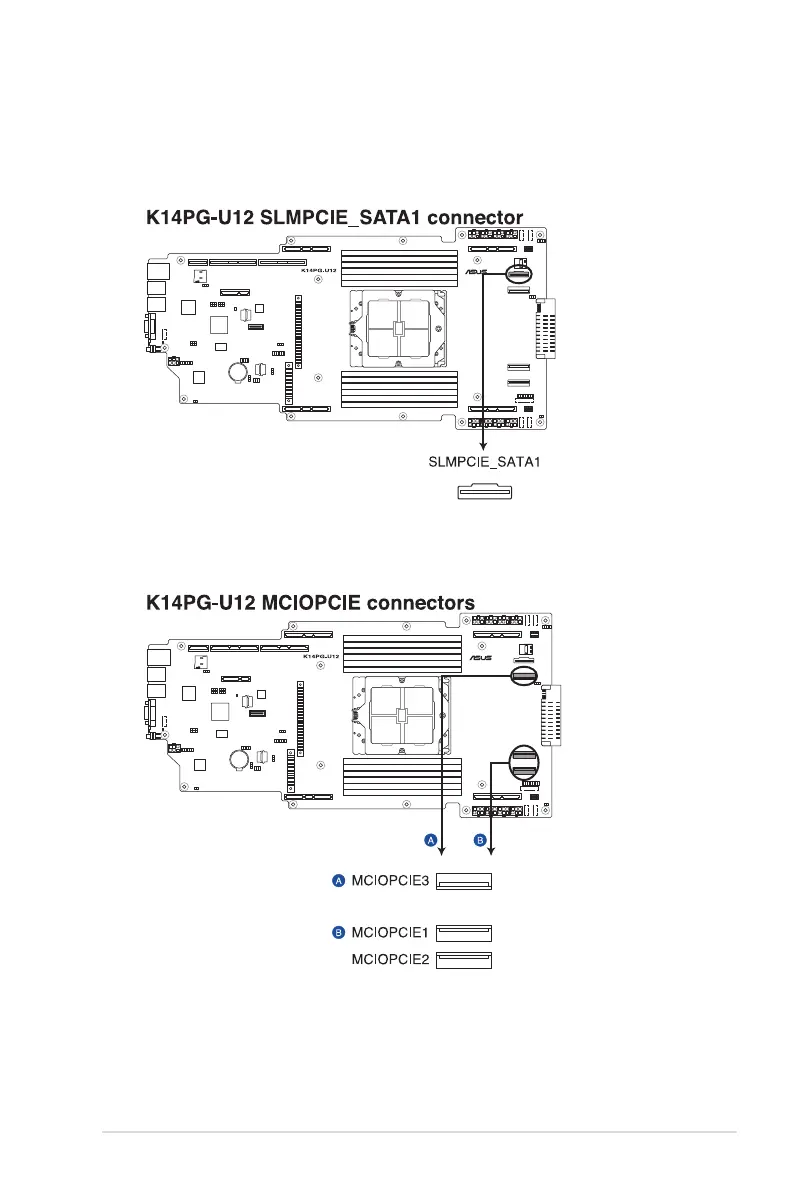

2. MCIOPCIE connectors (MCIOPCIE1-3)
Connects the PCIe signal to the MCIO ports on the backplanes.
3.5 Internal connectors
1. SLIMPCIE connector (SLIMPCIE_SATA1)
Connects the SATA signal to the SLIMSAS1 ports on the backplanes.
